Insight Automatic CVT
›
Repair and Diagnosis
›
Engine Performance
›
System
›
EVAP System
›
Component Location Index
›
2000-2005 models
2000-2005 models

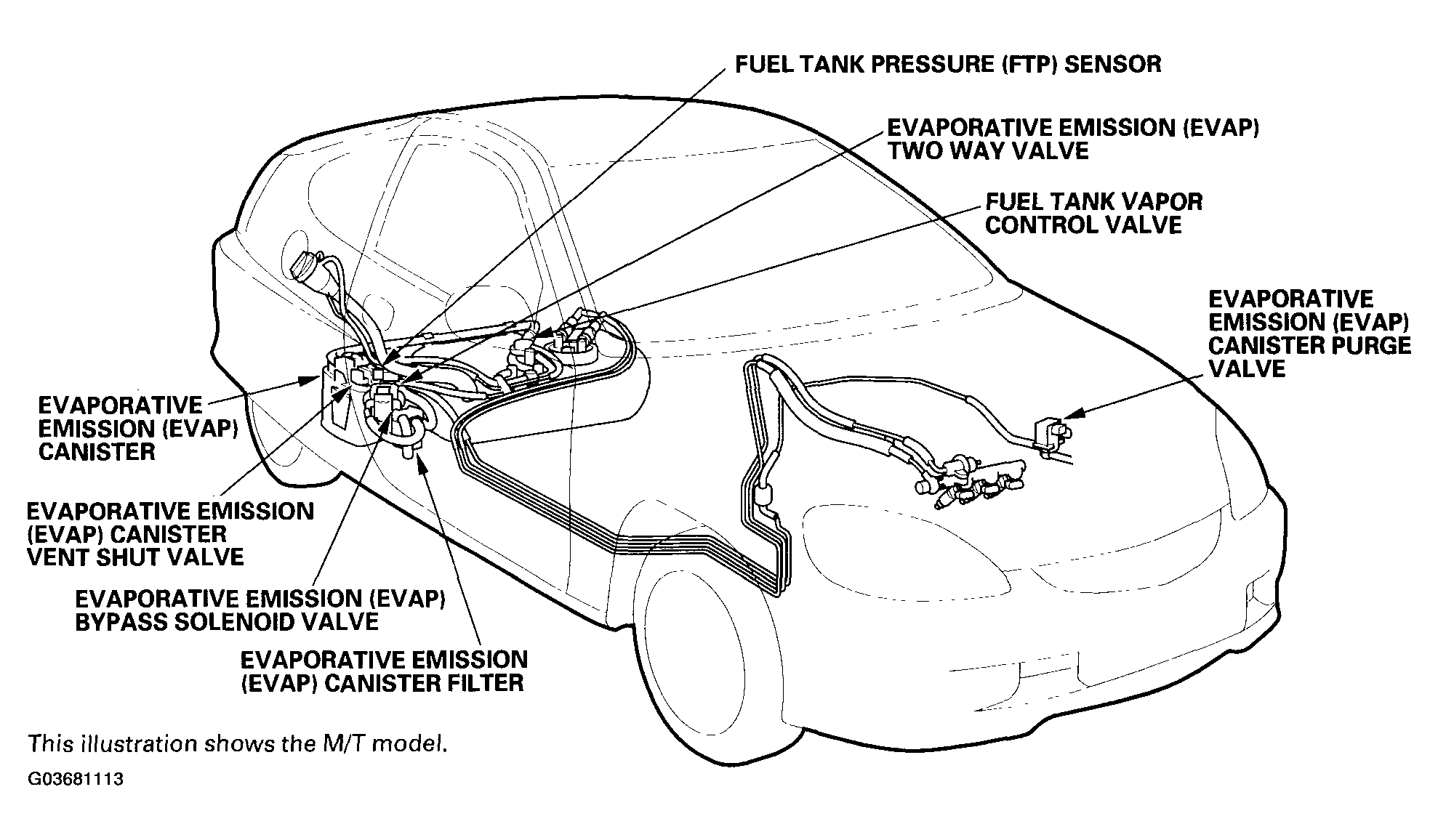

Fig 1: Identifying EVAP System Component Location Index (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
