Component Location Index

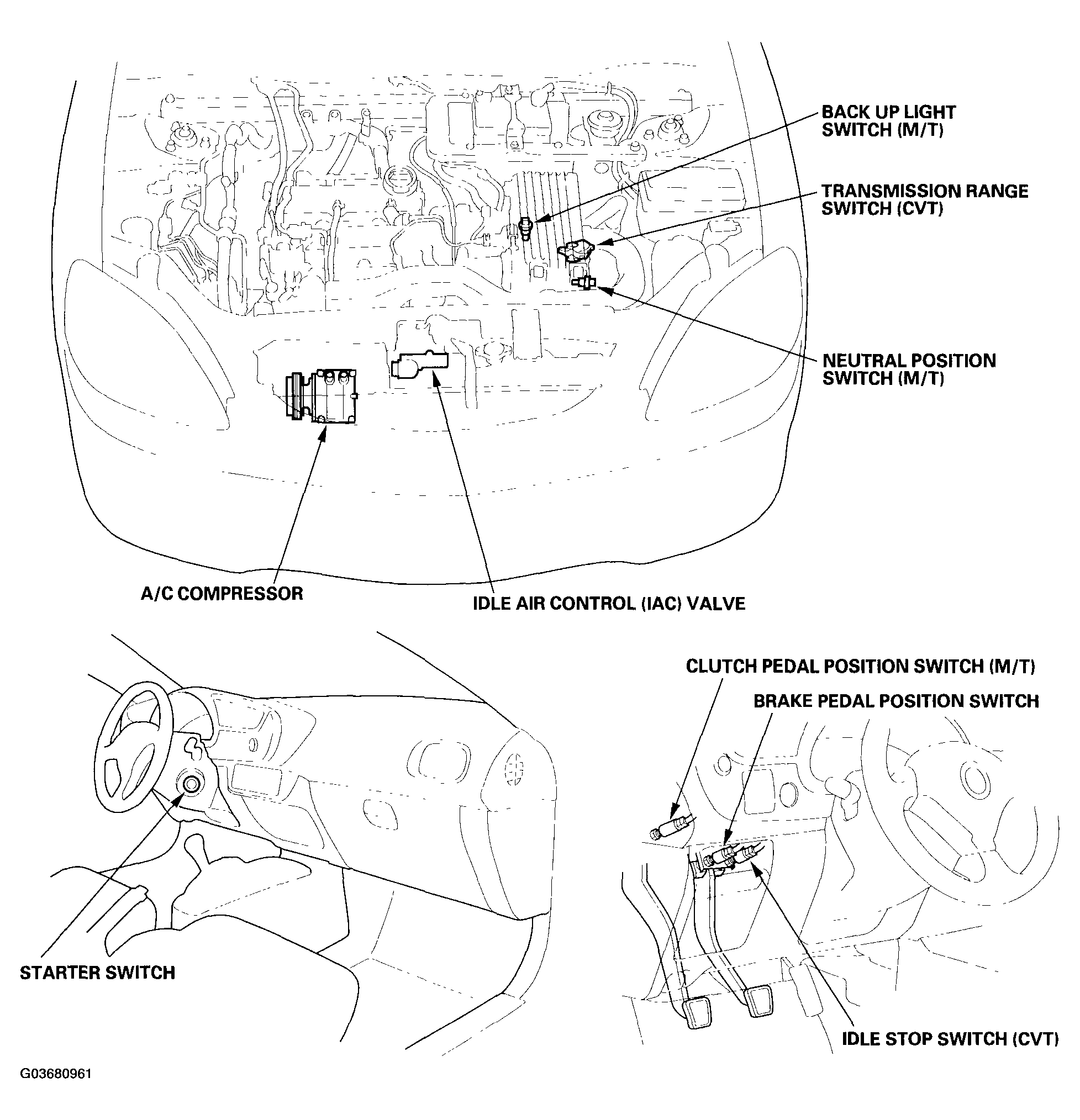

Fig 1: Idle Control System Components Location
G03680961Courtesy of AMERICAN HONDA MOTOR CO., INC.
