Wiper/Washer Switch Test
WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

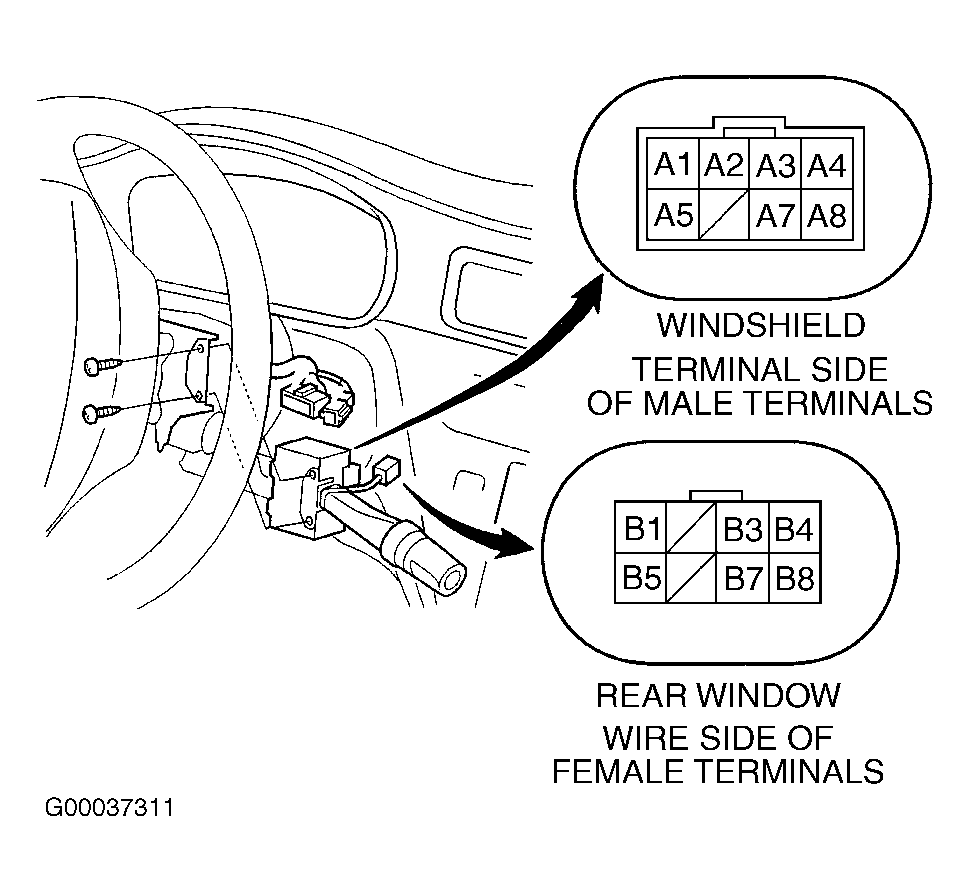

Remove instrument panel lower cover and steering column covers. Disconnect both 8-pin connectors from wiper/washer switch. Remove 2 screws, then remove switch. Check continuity or resistance between specified terminals with switch in indicated positions. See FRONT WIPER/WASHER SWITCH CONTINUITY TEST or REAR WIPER/WASHER SWITCH CONTINUITY TEST tables. See Fig 1 . If continuity or resistance is not as specified, replace wiper/washer switch.
FRONT WIPER/WASHER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals | ||
|---|---|---|---|
| OFF | A3 & A5 | ||
| INT | A2 & A7; A3 & A5 | ||
| LO | A3 & A8 | ||
| HI | A4 & A8 | ||
| MIST (On) | A4 & A8 | ||
| WASHER (On) | A1 & A7 | ||
| Intermittent Dwell Time (1) | B4 & B8 | ||
|
|||
REAR WIPER/WASHER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals |
|---|---|
| OFF | No Continuity |
| ON | B1 & B3 |
| WASHER (On, Wiper OFF) | B5 & B7 |
| WASHER (On, Wiper ON) | B1 & B3; B5 & B7 |
