With navigation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Make sure you have the anti-theft codes for the radio and navigation system, then write down the channels for the XM radio's preset buttons.
Remove the center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Remove the bolts, then pull out the audio unit (A).

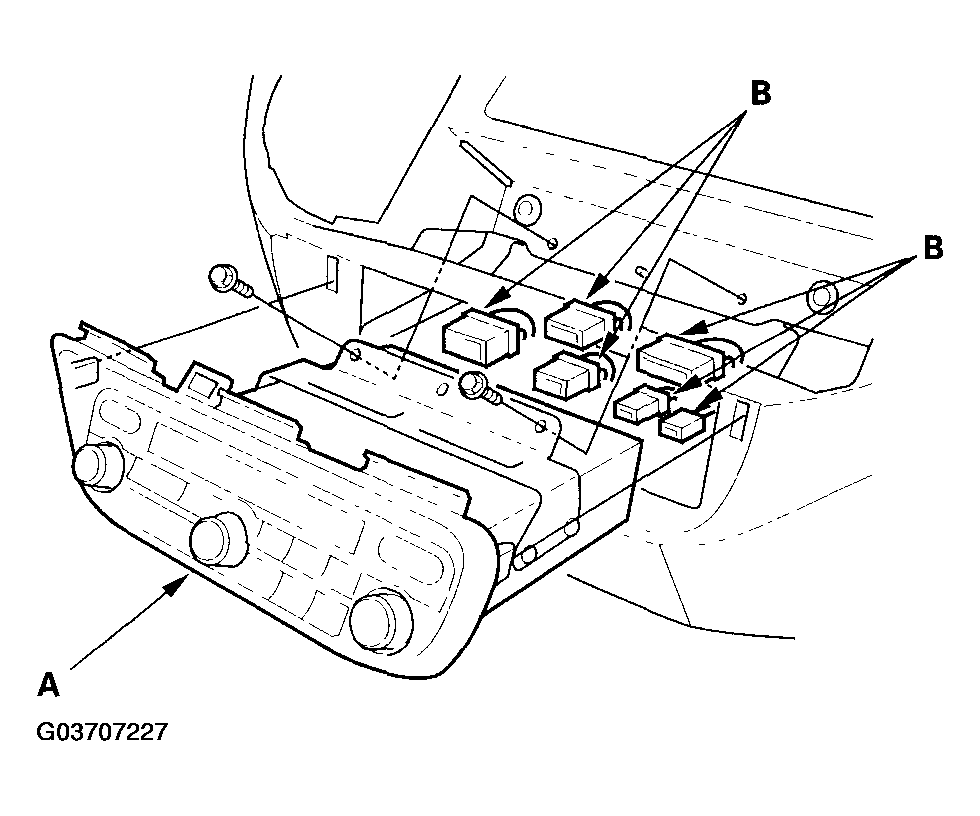

Fig 1: Pulling Out Audio Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), then remove the audio unit.
Remove the bolts, and the bracket (A).

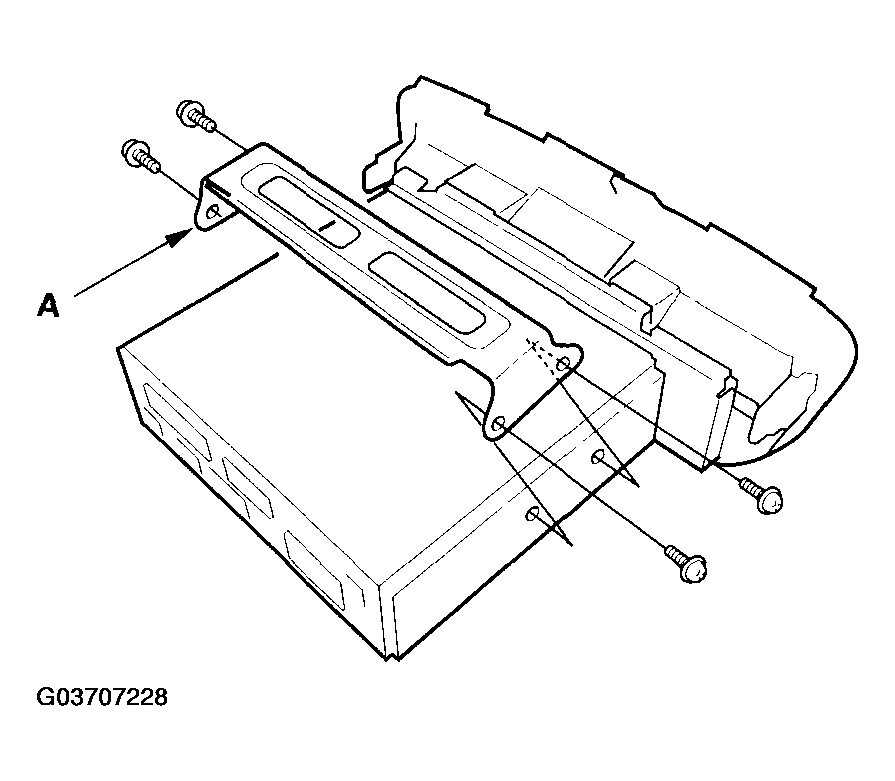

Fig 2: Removing Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items:
- Make sure all connectors and antenna lead are secure.
- Enter the anti-theft codes for the radio, then enter the customer's XM radio channel presets, and set the clock.
- If necessary, enter the navigation system code.
