XM Receiver Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the antenna 2P connector (A) and 14P connector (B) from the XM receiver (C).

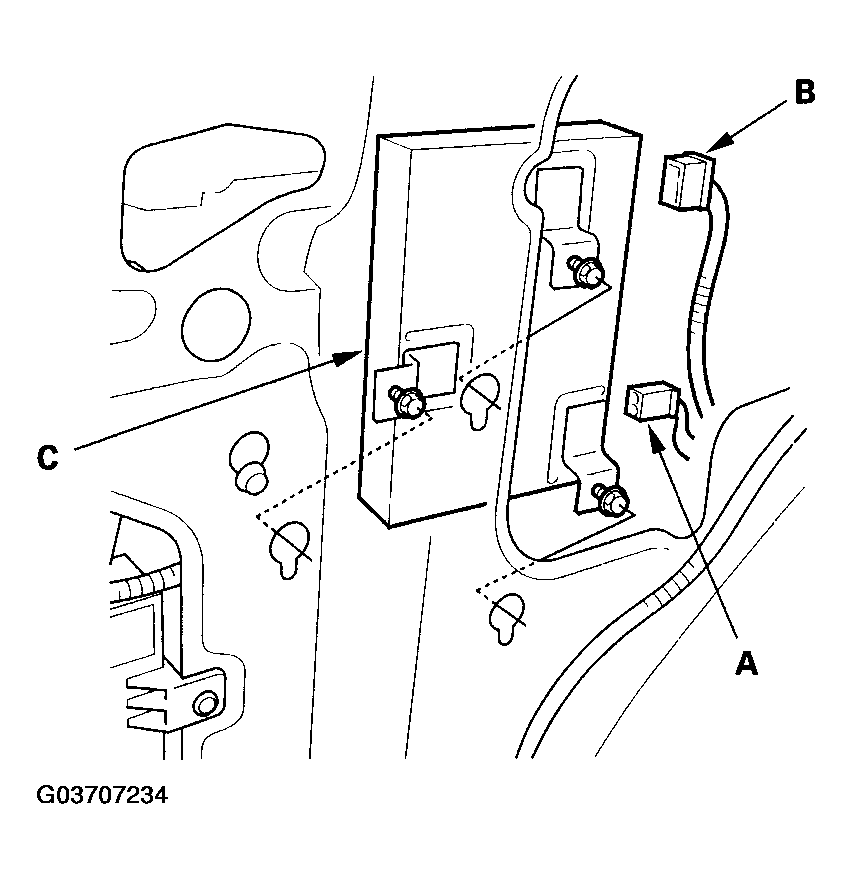

Fig 1: Disconnecting Antenna 2P Connector And 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the three nuts and remove the XM receiver.
Install in the reverse order of removal.
