Power Adjustable Pedals Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lock pin (A) and joint pin (B).

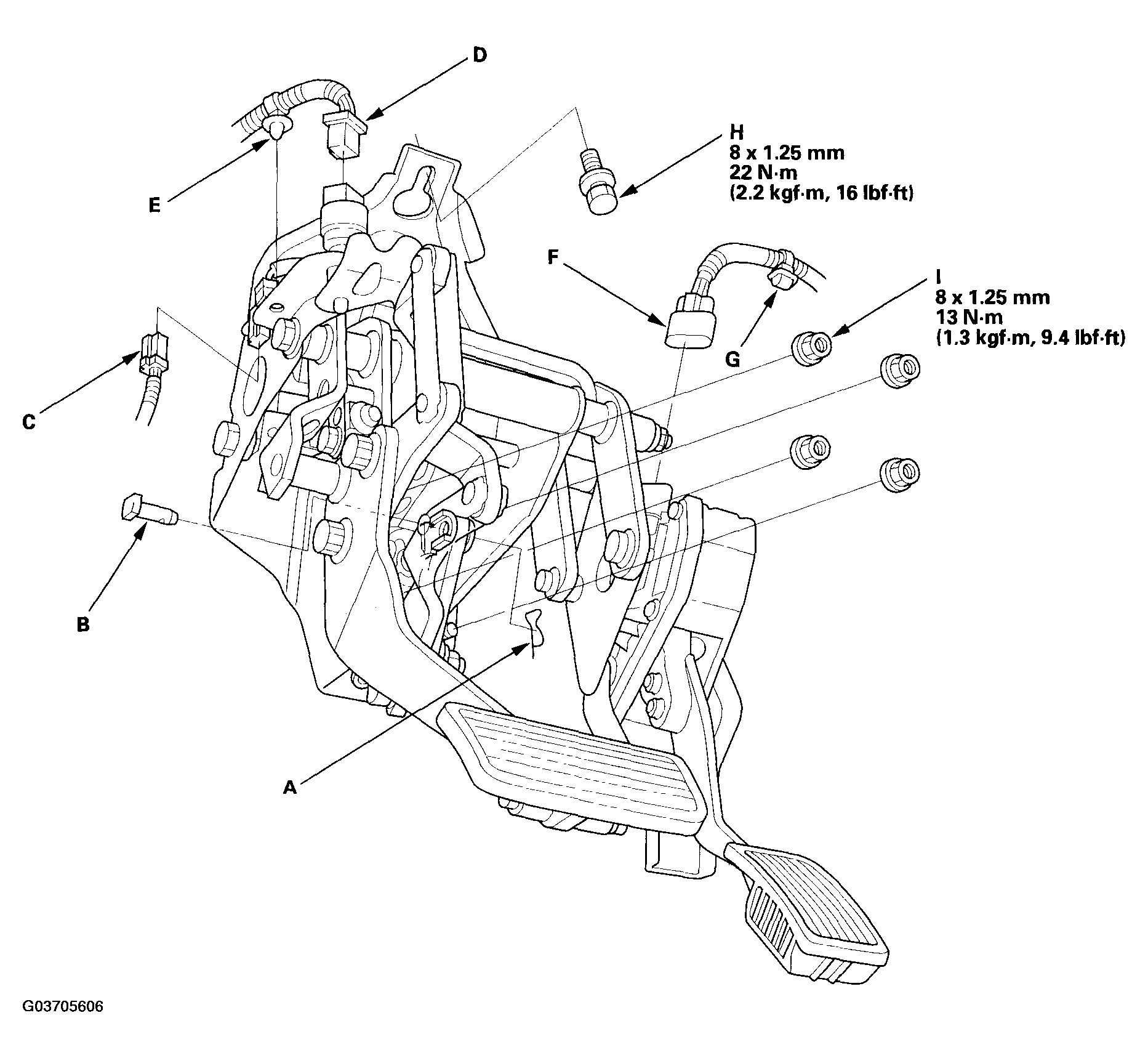

    Fig 1: Removing Lock Pin And Joint Pin
    G03705606Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect adjust motor connector (C).
  3. Disconnect the brake pedal position switch connector (D) and remove the clip (E).
  4. Disconnect the accelerator connector (F) and the clip (G).
  5. Remove the power adjustable pedals bracket mounting bolt (H) and nuts (I).
  6. Install the adjustable pedals assembly in the reverse order of removal.
  7. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
