Left Side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

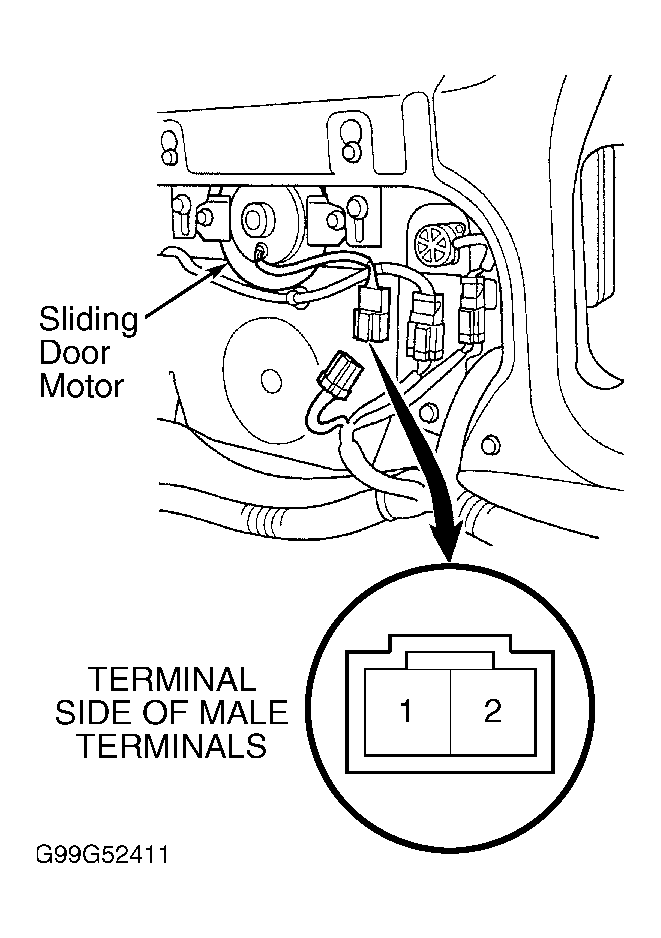

  1. Remove left rear interior side trim panel. Disconnect sliding door motor 2-pin harness connector. Using fused jumper wires, connect battery voltage to sliding door motor harness connector terminal No. 1 (Black wire) and ground sliding door motor harness connector terminal No. 2 (Blue wire). See Figure. Sliding door should open. Go to next step.
  2. Using fused jumper wires, connect battery voltage to sliding door motor harness connector terminal No. 2 (Blue wire) and ground sliding door motor harness connector terminal No. 1 (Black wire). Sliding door should close. If sliding door does not operate as specified, replace sliding door motor and retest system. See SLIDING DOOR MOTOR UNIT  under REMOVAL & INSTALLATION.
