Cargo Area Light Test/Replacement
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the light switch OFF.

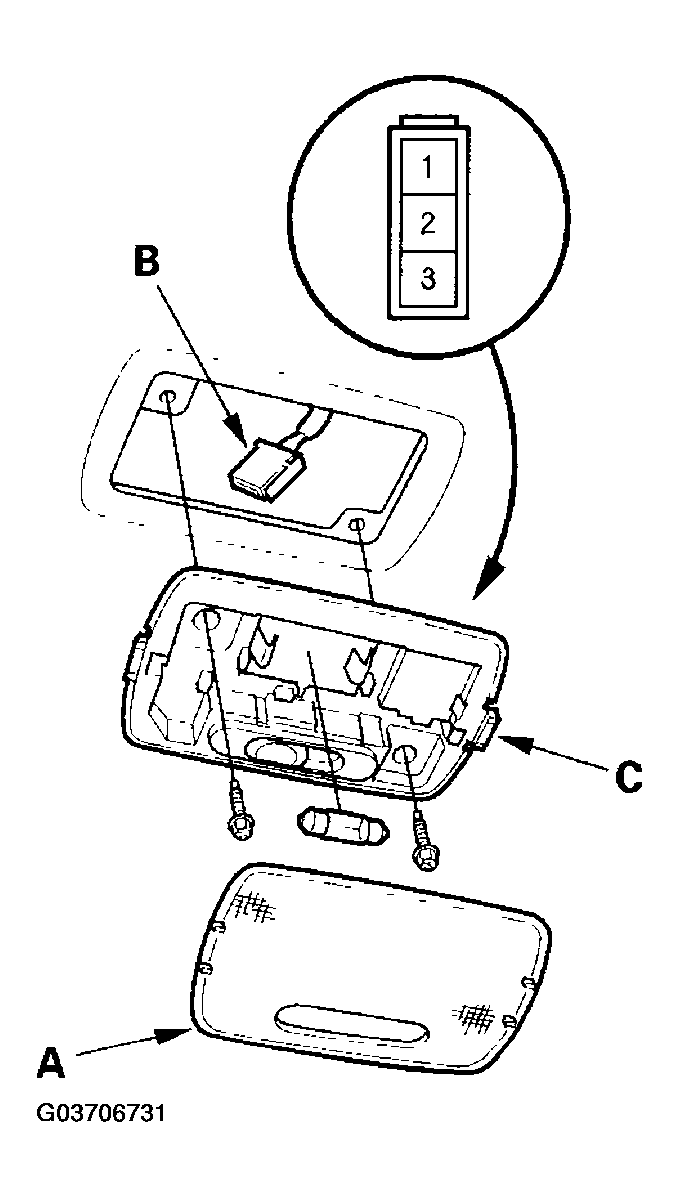

- Carefully pry off the lens (A) with a small screwdriver.
Cargo Area Light: 8 W
- Remove the two mounting screws.
- Disconnect the 3P connector (B) from the housing (C).
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals with the switch in the MIDDLE position.
- There should be continuity between the No. 2 and No. 3 (Body ground) terminals with the switch in the ON position.
- Install in the reverse order of removal.
