Rear Individual Map Light Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry off the lens (A) with a small screwdriver.
Rear Map Light: 5 W

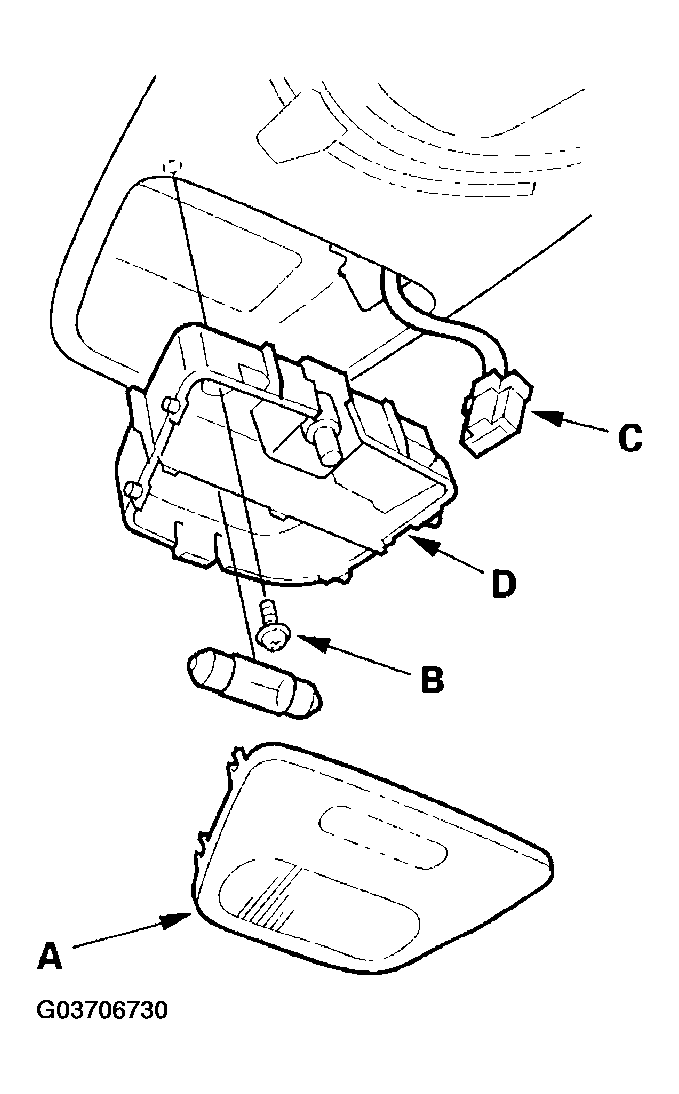

Fig 1: Removing Rear Map Light
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting screw (B).
Disconnect the 3P connector (C) from the housing (D).
Check for continuity between the terminals.
- There should be continuity between the No. 2 and No. 3 terminals with the switch ON.
- There should be continuity between the No. 1 and No. 2 terminals with the switch OFF.
If the continuity is not as specified, check the bulb. If the bulb are OK, replace the light.
