Tailgate Latch Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 2P (or 6P) connector (A) from the latch.

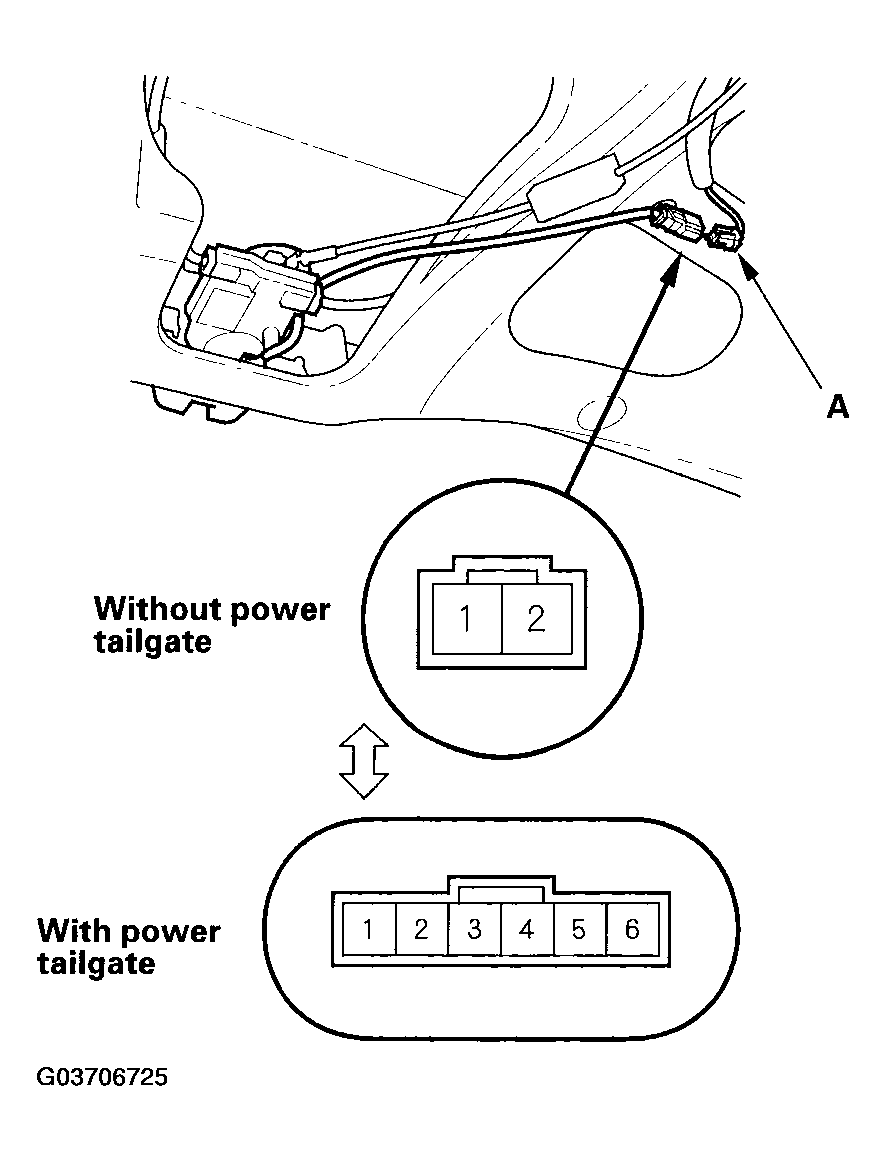

    Fig 1: Disconnecting 2P (Or 6P) Connector From Latch
    G03706725Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the No. 1 and No. 2 terminals.
    • With the tailgate open, there should be continuity.
    • With the tailgate closed, there should be no continuity.
  5. If the continuity is not as specified, replace the tailgate latch.
