Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate, and remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).

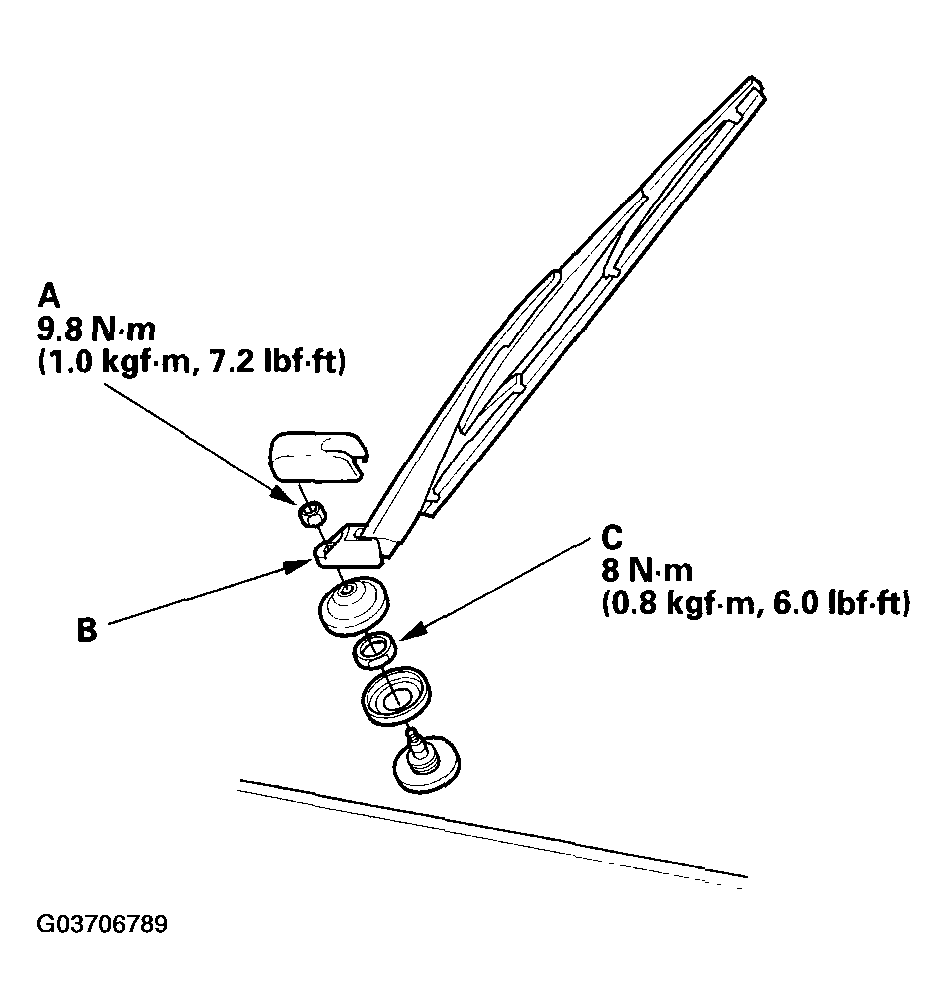

  2. Remove the mounting nut (A), the wiper arm (B) and the special nut (C).
    Fig 1: Removing Mounting Nut
    G03706789Courtesy of AMERICAN HONDA MOTOR CO., INC.

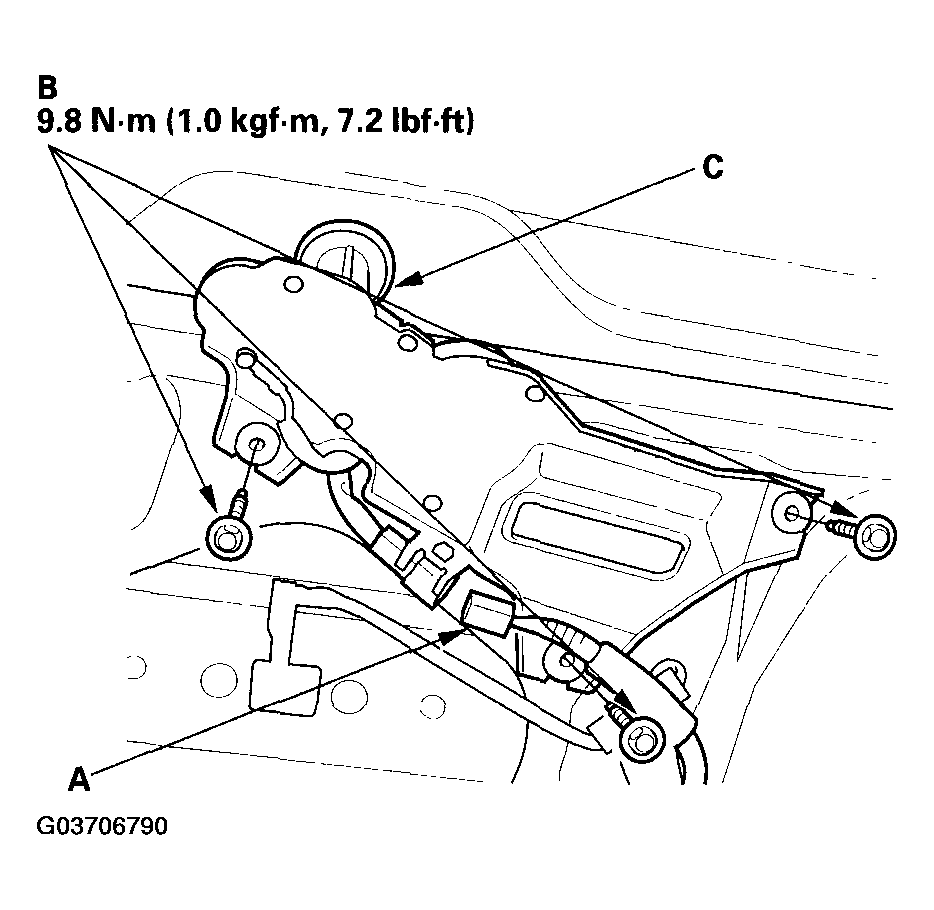

  3. Disconnect the 4P connector (A) and remove the three mounting bolts (B), then remove the rear window wiper motor (C).
    Fig 2: Disconnecting 4P Connector
    G03706790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal.
