Latch Position Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the rear latch assembly connector (B) 6P.

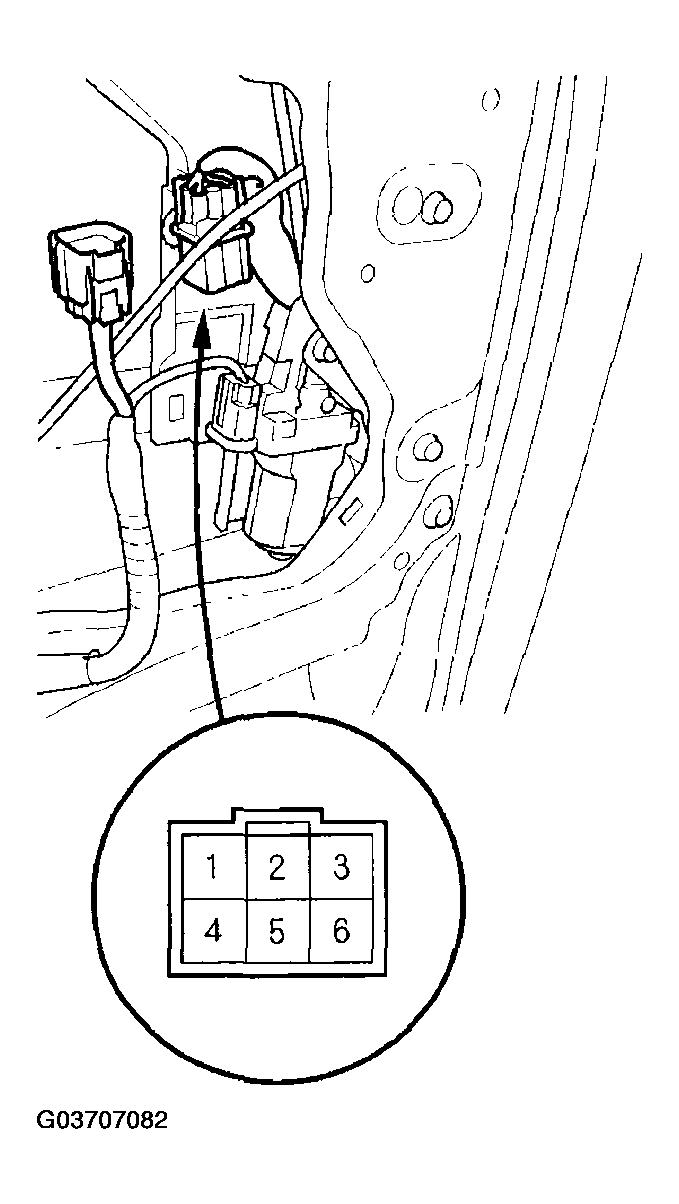

Fig 1: Disconnecting Rear Latch Assembly Connector 6P
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2.

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Latch Position Switch Test Blinking Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the latch assembly.
