Slide Motor Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).

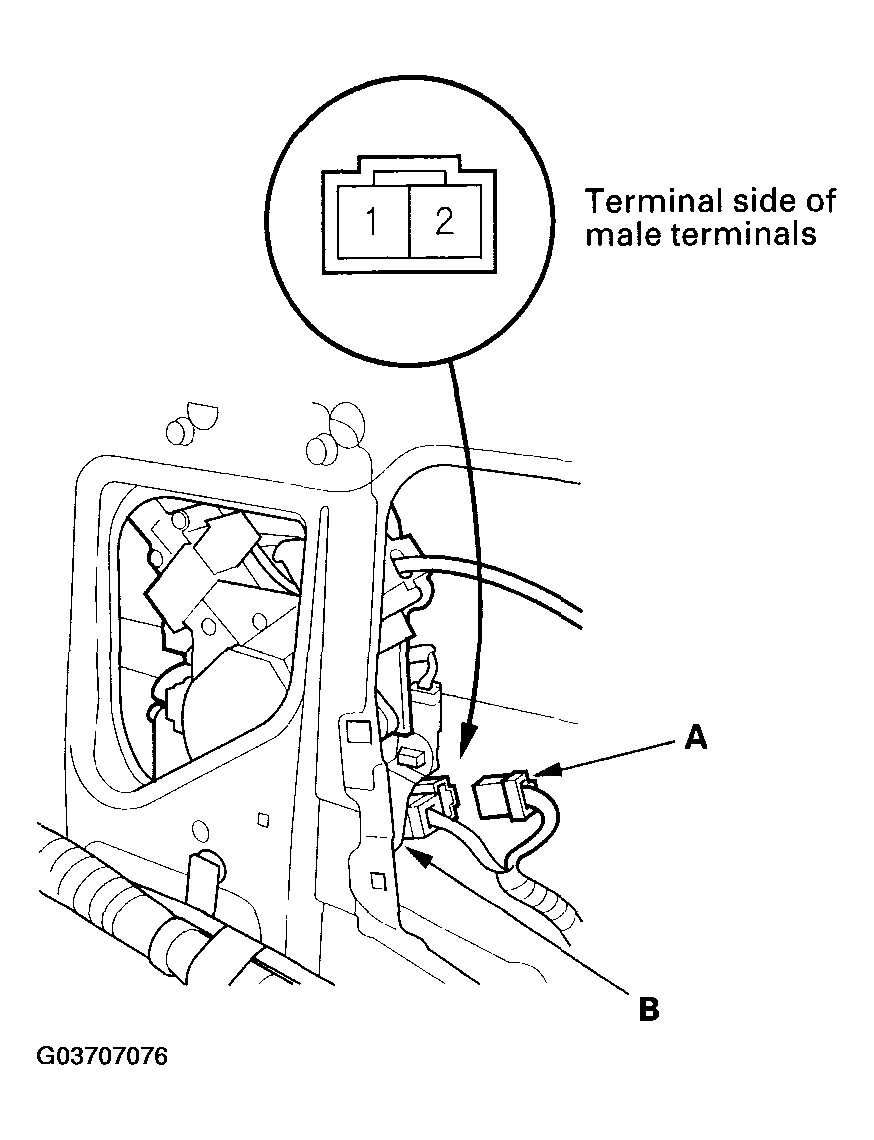

Disconnect the 2P connector (A) from the slide motor (B).

Fig 1: Disconnecting 2P Connector From Slide Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the slide motor by connecting power and ground according to the table.

Fig 2: Testing Slide Motor By Connecting Power And Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not operate, replace the motor.
