GPS Antenna Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Remove the GPS antenna (A).

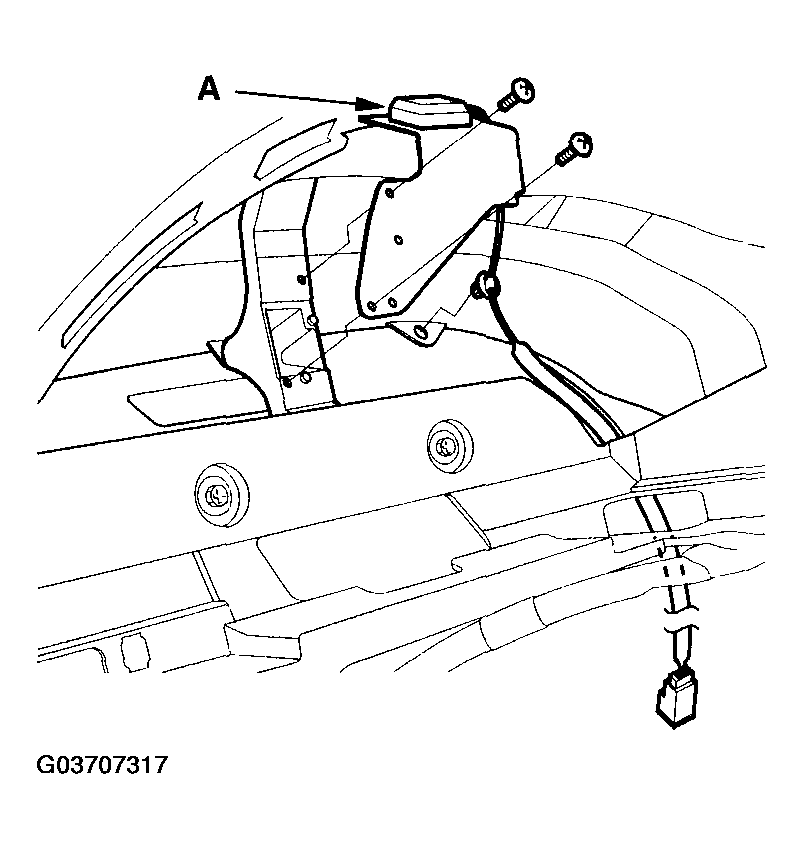

Fig 1: Removing GPS Antenna
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
