Rearview Camera Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT ).
Disconnect the rearview camera 6P connector (A) and license plate light 2P connector (B).

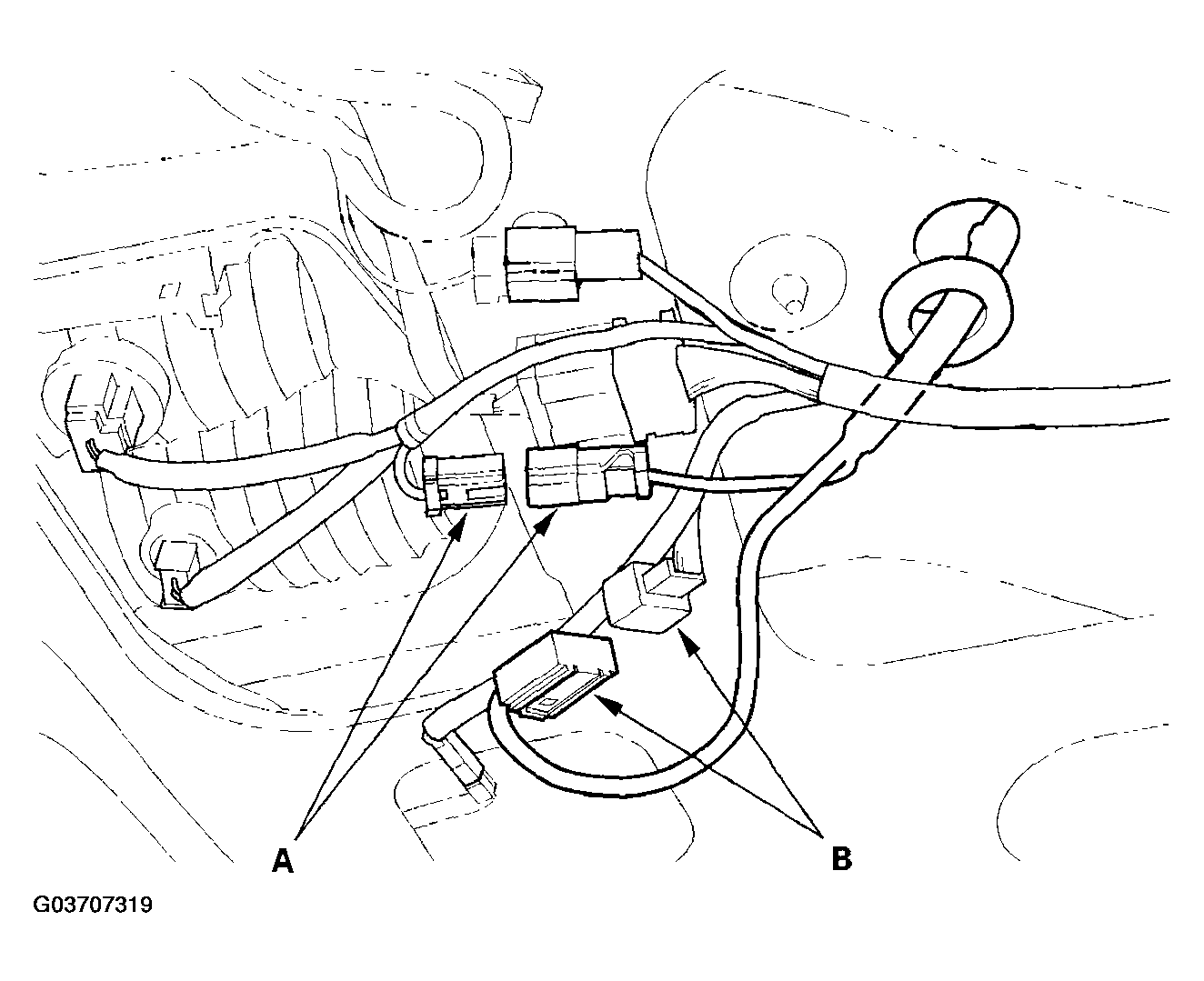

Fig 1: Disconnecting Rearview Camera 6P Connector And License Plate Light 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear license molding (C) (see step 4 in REAR LICENSE TRIM REPLACEMENT ).

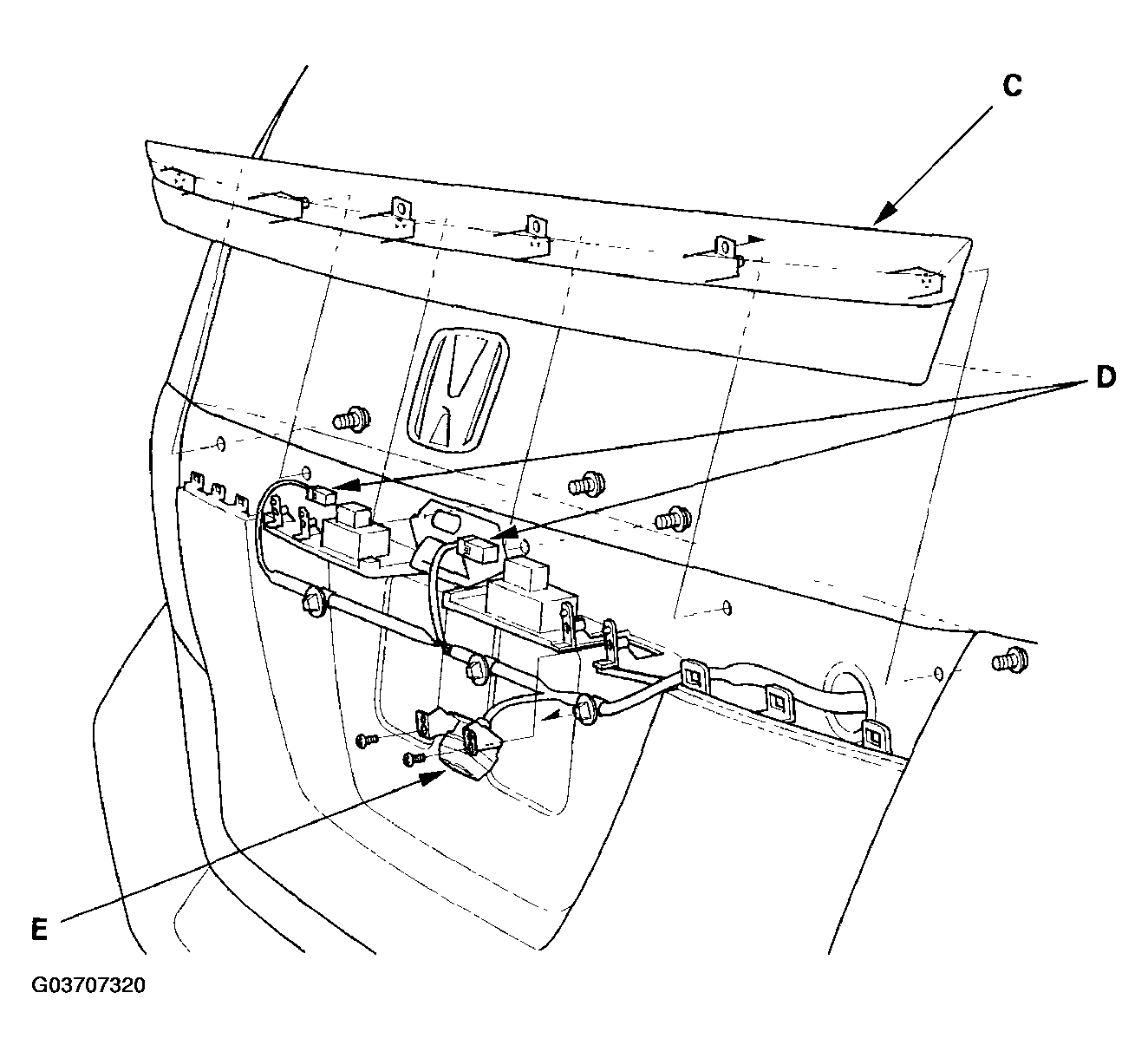

Fig 2: Removing Rear License Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the license plate light connectors (D).
Remove the rearview camera assy. (E).
Install in the reverse order of removal.
