Component Location Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

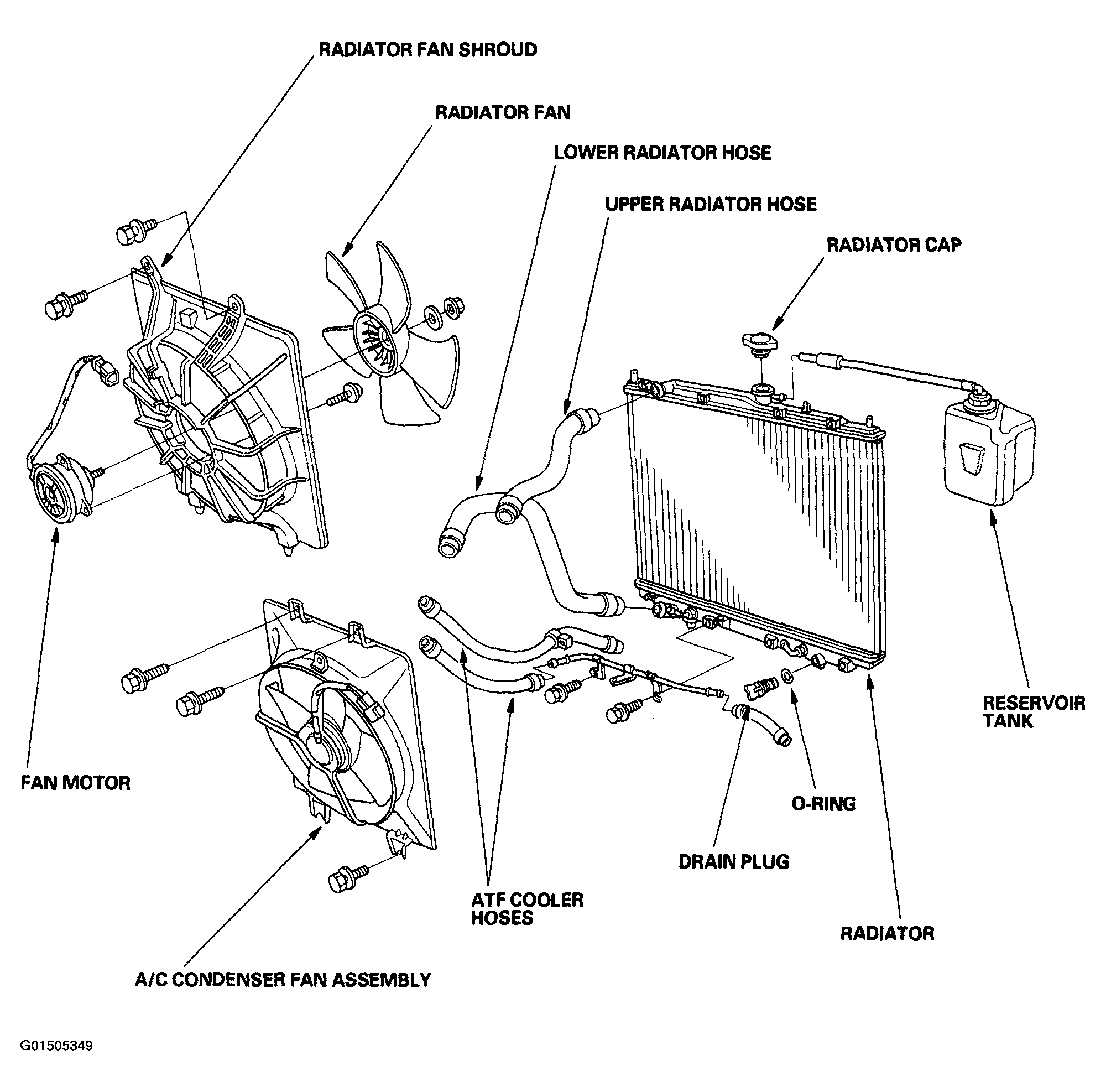

Fig 1: Exploded View Of Component Location (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

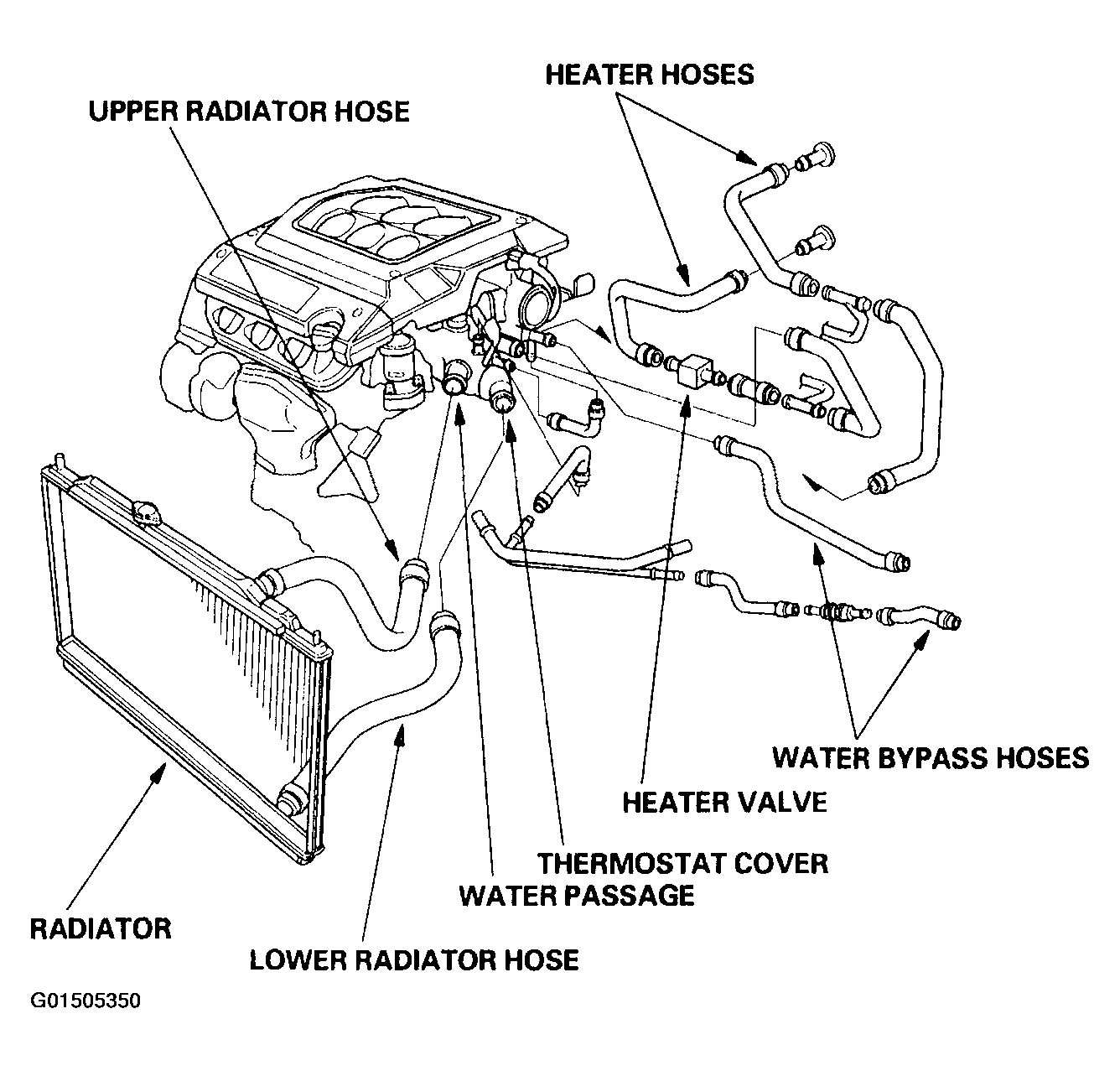

Fig 2: Exploded View Of Component Location (1999-2001 Models - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

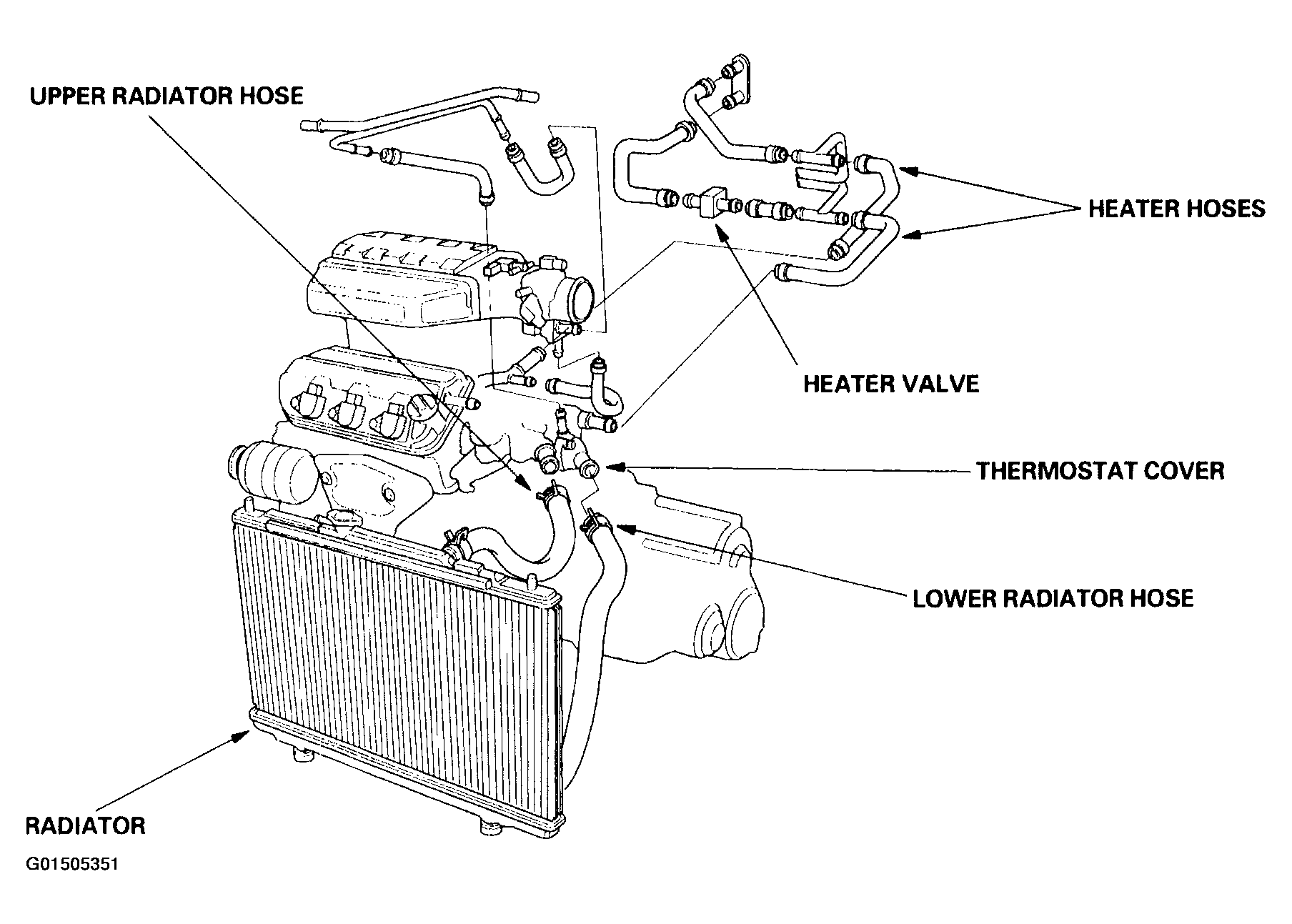

Fig 3: Exploded View Of Component Location (2002-2004 Models - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

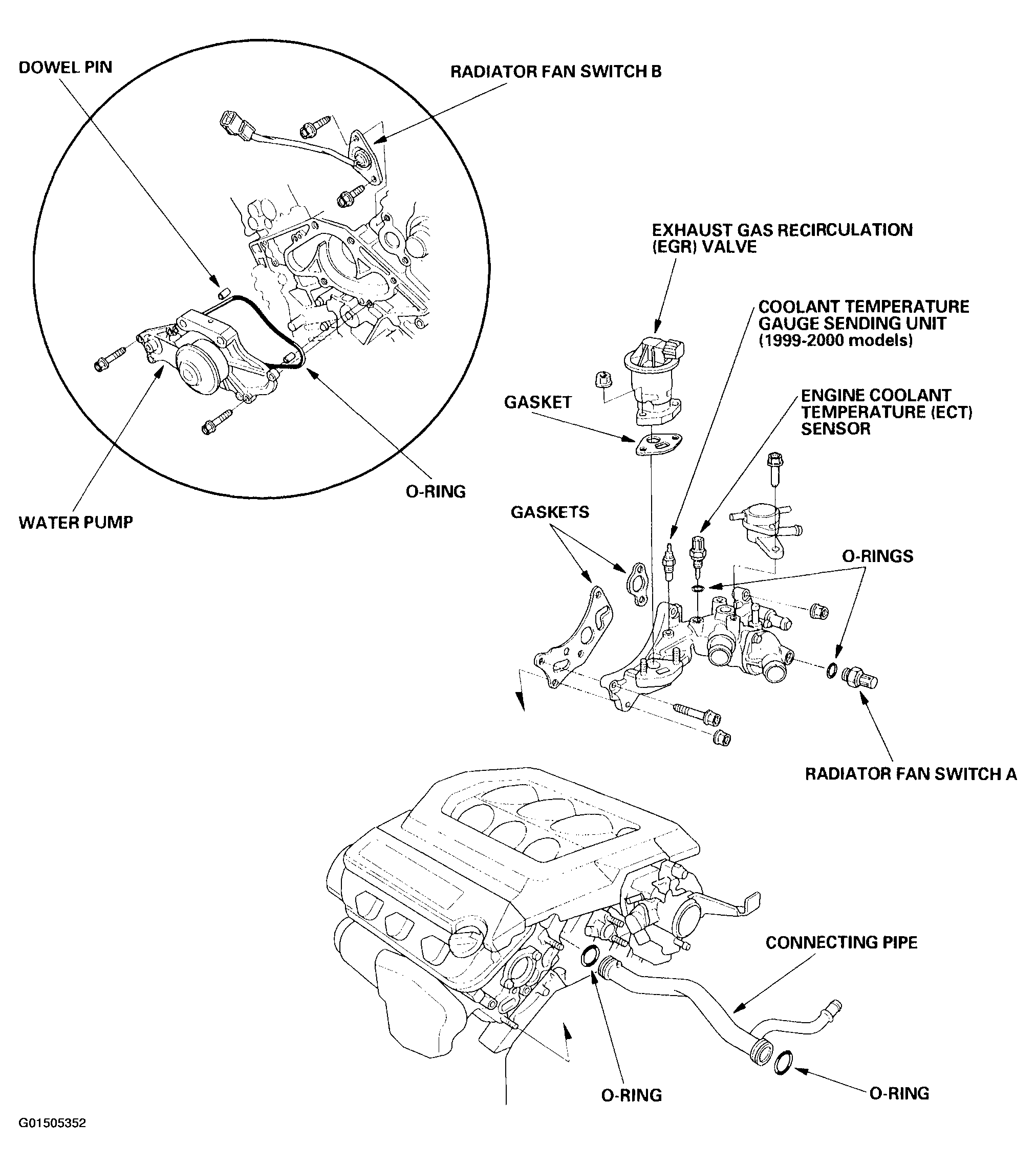

Fig 4: Exploded View Of Component Location (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
