Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adjustment switch cover (A) from the driver's seat by removing the three screws, and pulling off the adjustment switch knobs (B).

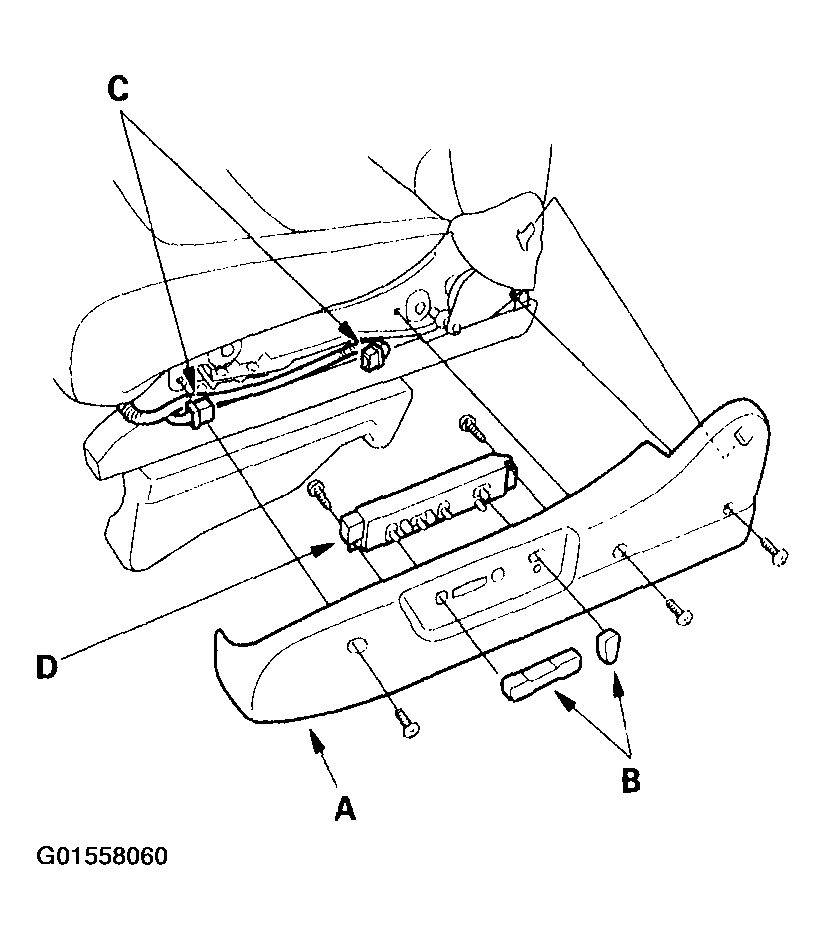

    Fig 1: Removing Adjustment Switch Cover
    G01558060Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 6P connectors (C) from the adjustment switch (D), then remove the switch from the cover by removing its two mounting screws.
  3. Reinstall the adjustment switch knobs.
  4. Check for continuity between the terminals in each switch position according to the table.

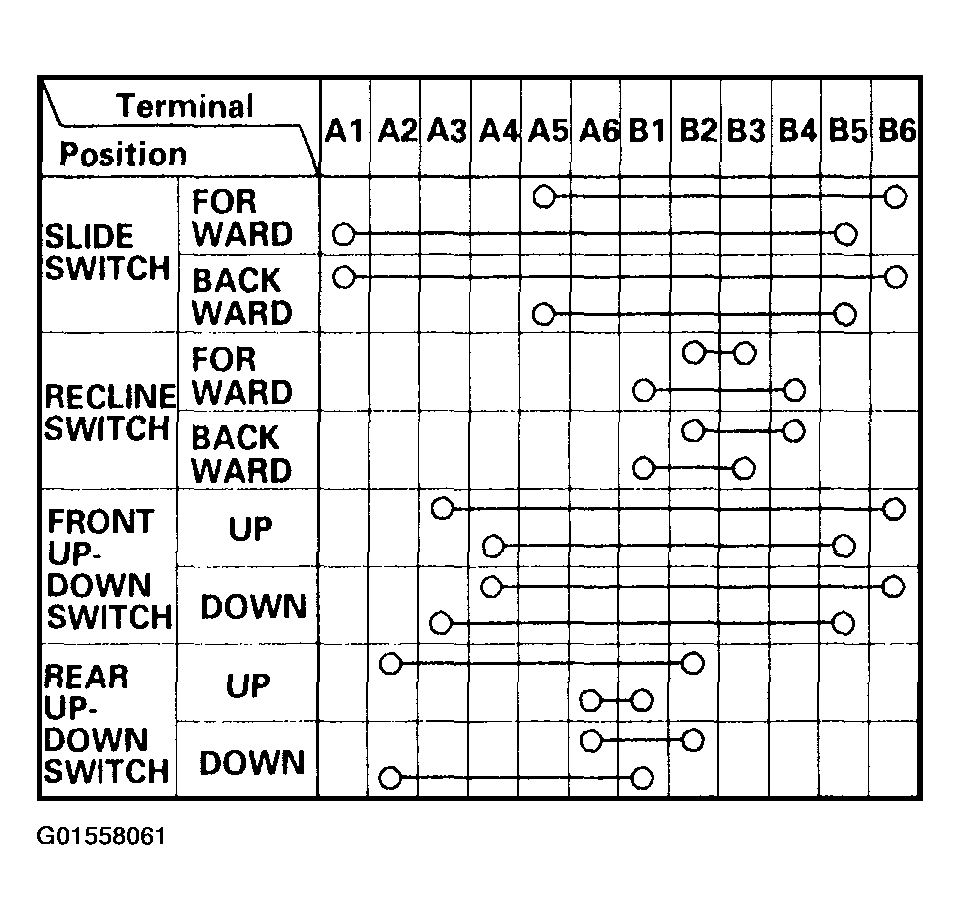

    Fig 2: Switch Test/Replacement Table
    G01558061Courtesy of AMERICAN HONDA MOTOR CO., INC.

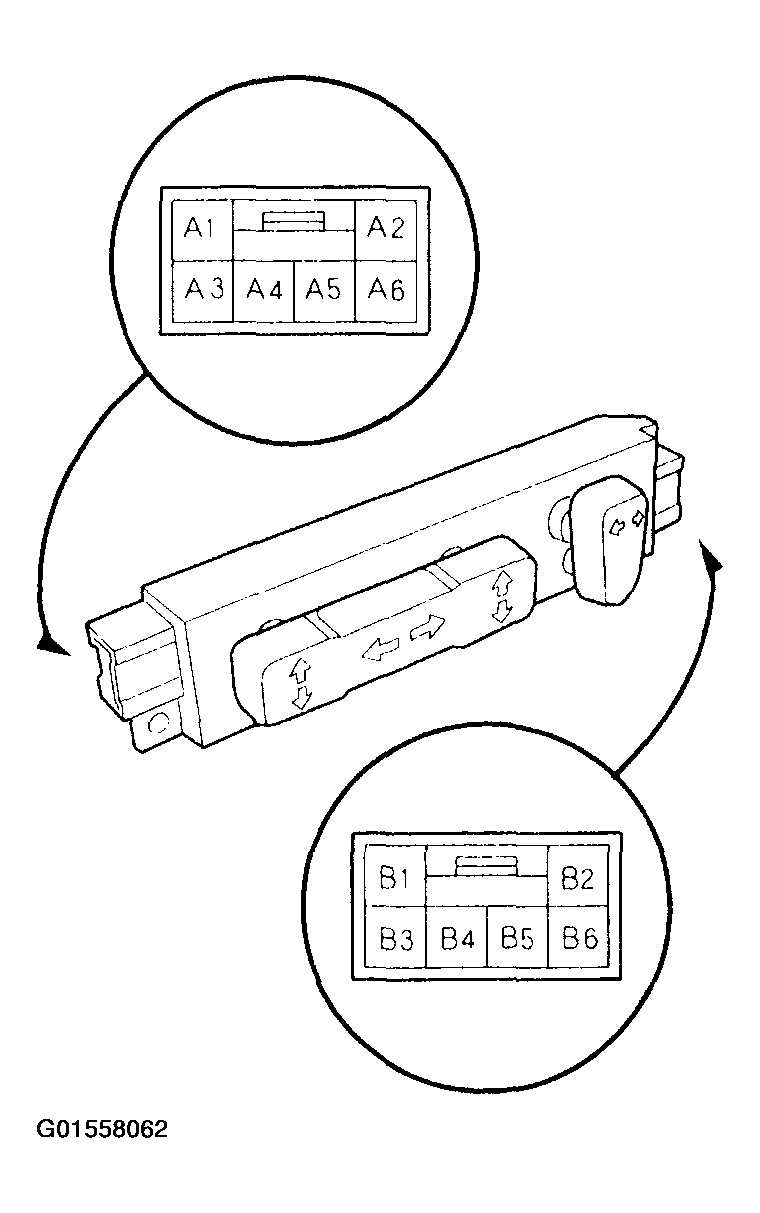

    Fig 3: Checking Continuity Between Terminals
    G01558062Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the switch.
