Controller Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before testing the controller, do the control unit input test (see Control Unit Input Test  ).
  2. Remove the gauge assembly (A) (see GAUGE ASSEMBLY REPLACEMENT ).

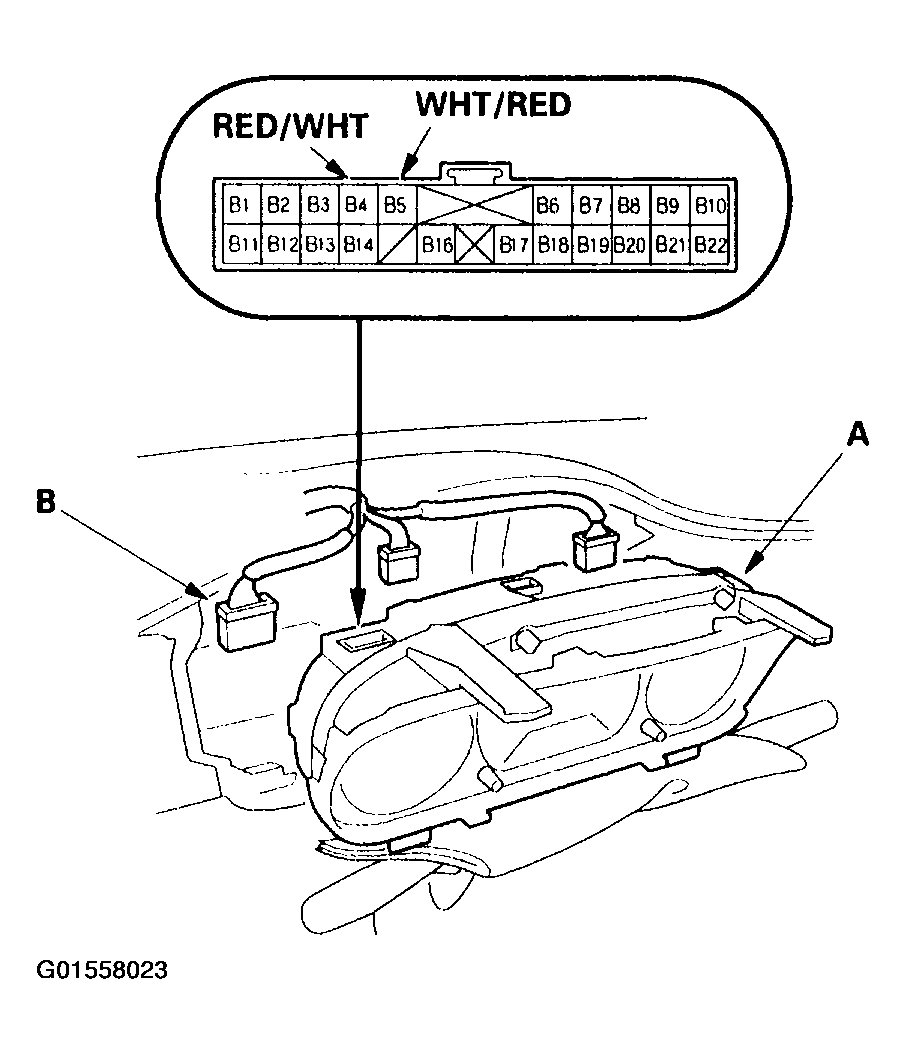

    Fig 1: Removing Gauge Assembly
    G01558023Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 22P connector (B).
  4. At the gauge assembly, measure resistance between the B4 and B5 terminals while rotating the adjusting dial. Resistance should vary from 0 to 20,000 ohms as the dial is rotated.
  5. If the resistance does not change, replace the gauge assembly.
