Ignition Key Light Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 7P connector.
    NOTE: Lock tab (A) points down when installed.

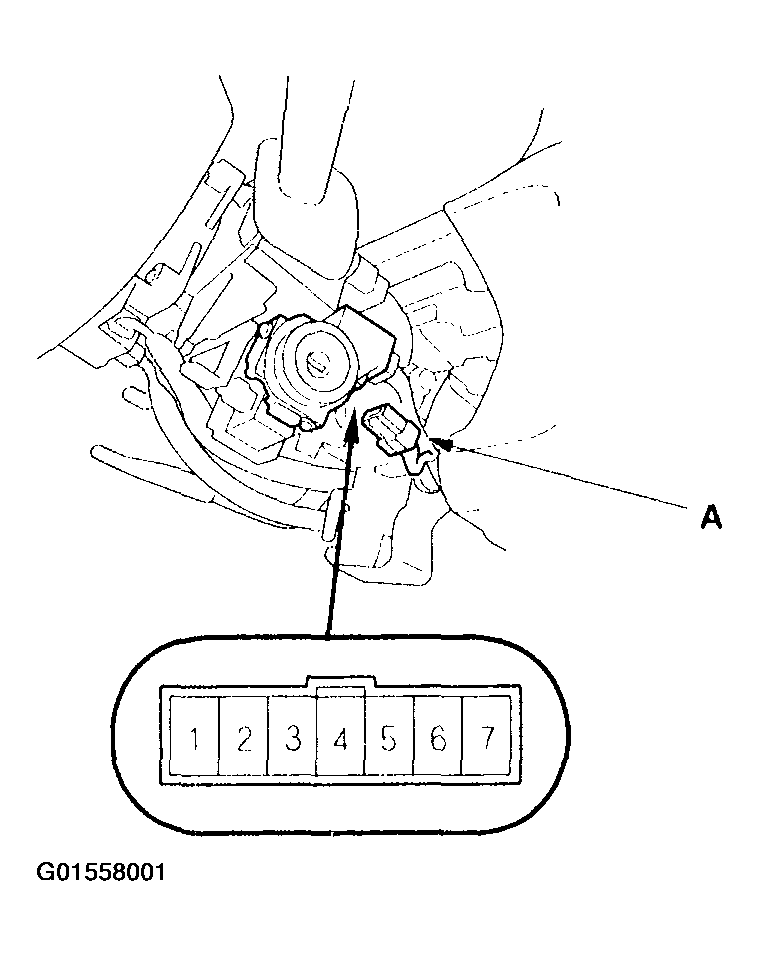

    Fig 1: Locking Tab Points Down
    G01558001Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. The LED should come on when power is connected to terminal No. 7 and ground is connected to terminal No. 6.
  4. If the LED does not come on, replace the ignition key switch.
