GPS Antenna Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the Instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  3. Remove the center lower console (see CENTER LOWER CONSOLE REMOVAL/INSTALLATION ).
  4. Disconnect the GPS antenna connector (A).

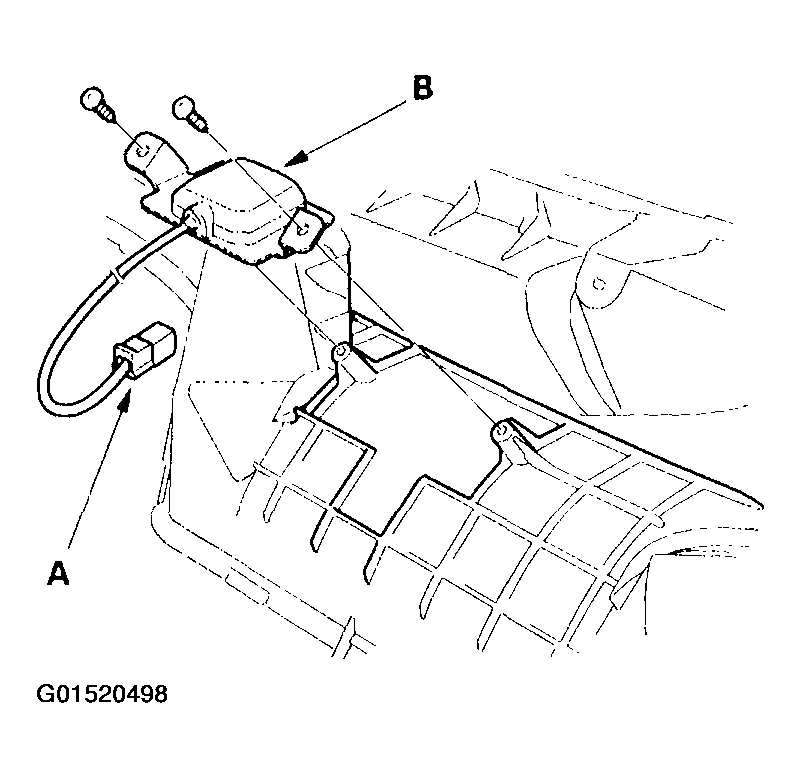

    Fig 1: Disconnecting GPS Antenna Connector
    G01520498Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  6. Remove the GPS antenna (B) from the center defogger duct.
  7. Install in the reverse order of removal.
    NOTE: Be careful when routing the GPS antenna wire so that it does not become pinched, especially near the front passenger's seat.
