Compressor Clutch Overhaul

Special Tools Required

A/C clutch holder, Robinair 10204 or Kent-Moore J37872, or Honda Tool and Equipment KMT-J33939 commercially available

1. Remove the center bolt (A) while holding the pressure plate with a commercially available A/C clutch holder (B).
   Fig 1: Removing Center Bolt

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

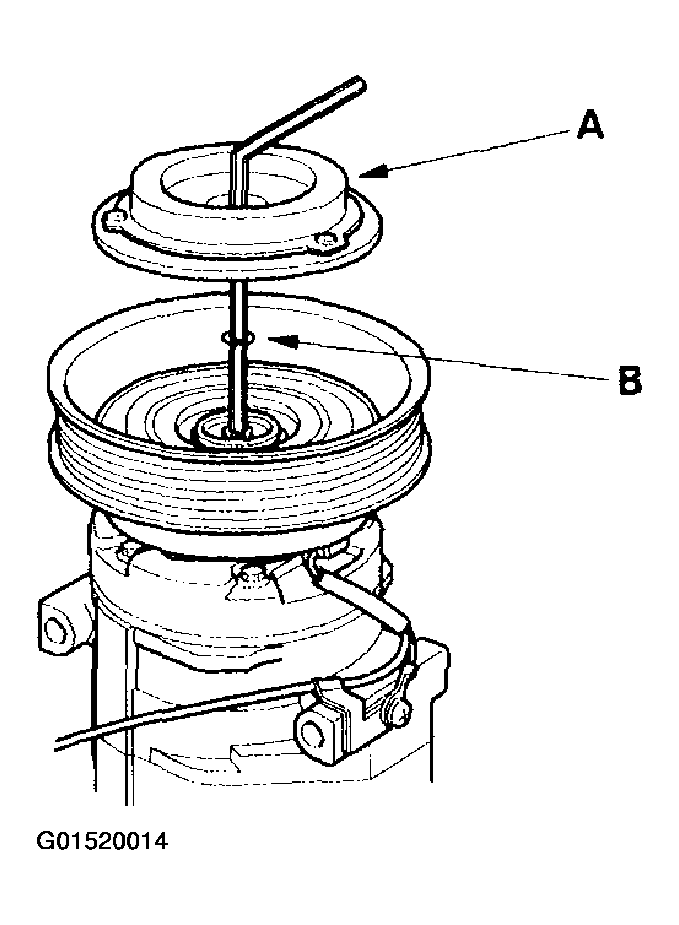

2. Remove the pressure plate (A) and shim(s) (B) taking care not to lose the shim(s). If the clutch needs adjustment increase or decrease the number and thickness of shims as necessary, then reinstall the pressure plate, and recheck its clearance (see Compressor Clutch Check  ).
   NOTE: The shims are available in four thicknesses: 0.1 mm, 0.3 mm, 0.5 mm, and 1.5 mm.
   Fig 2: Removing Pressure Plate & Shims

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If you are replacing the field coil, remove the snap ring (A) with snap ring pliers, then remove the pulley (B). Be careful not to damage the pulley or the compressor.
   Fig 3: Removing Snap Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

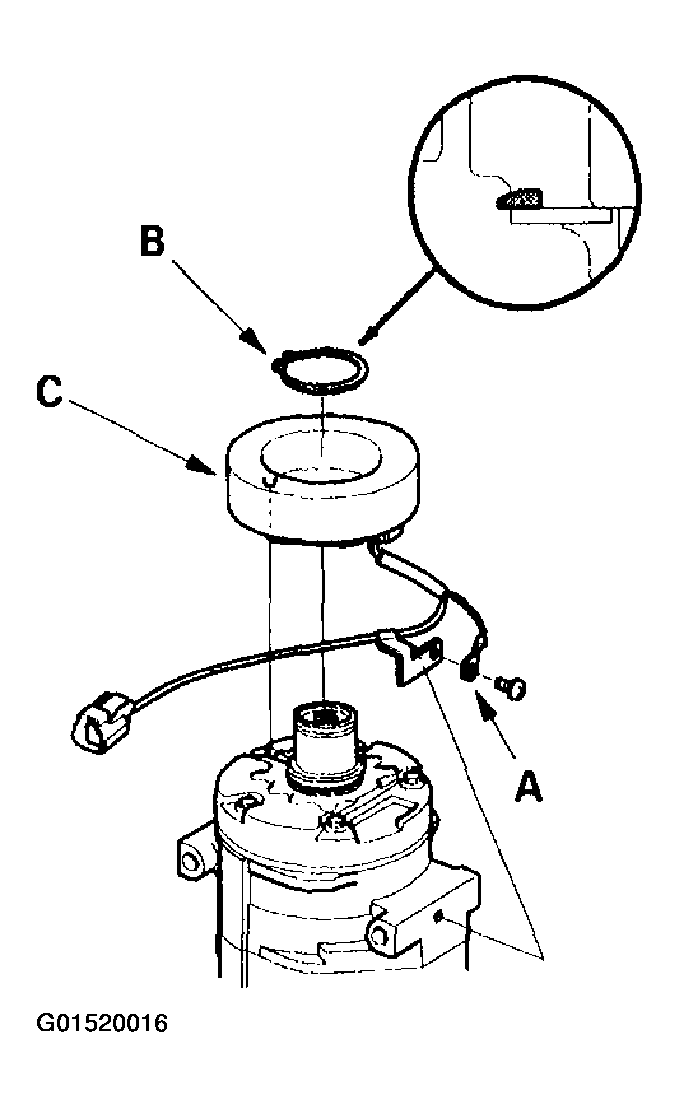

4. Remove the screw from the field coil ground terminal (A). Remove the snap ring (B) with snap ring pliers then remove the field coil (C). Be careful not to damage the field coil or the compressor.
   Fig 4: Removing Screw From Field Coil Ground Terminal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Reassemble the clutch in the reverse order of disassembly, and note these items:
   • Install the field coil with the wire side facing down, and align the boss on the field coil with the hole in the compressor.
   • Clean the pulley and compressor sliding surfaces with contact cleaner or other non-petroleum solvent.
   • Install new snap rings, note the installation direction and make sure they are fully seated in the groove.
   • Make sure that the pulley turns smoothly after it's reassembled.
   • Route and clamp the wires properly or they can be damaged by the rotor pulley.
