Dust and Pollen Filter Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The dust and pollen filter should be replaced every 30,000 miles (48,000 km) or 24 months whichever comes first. Replace the filter more often if the airflow is less than usual.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

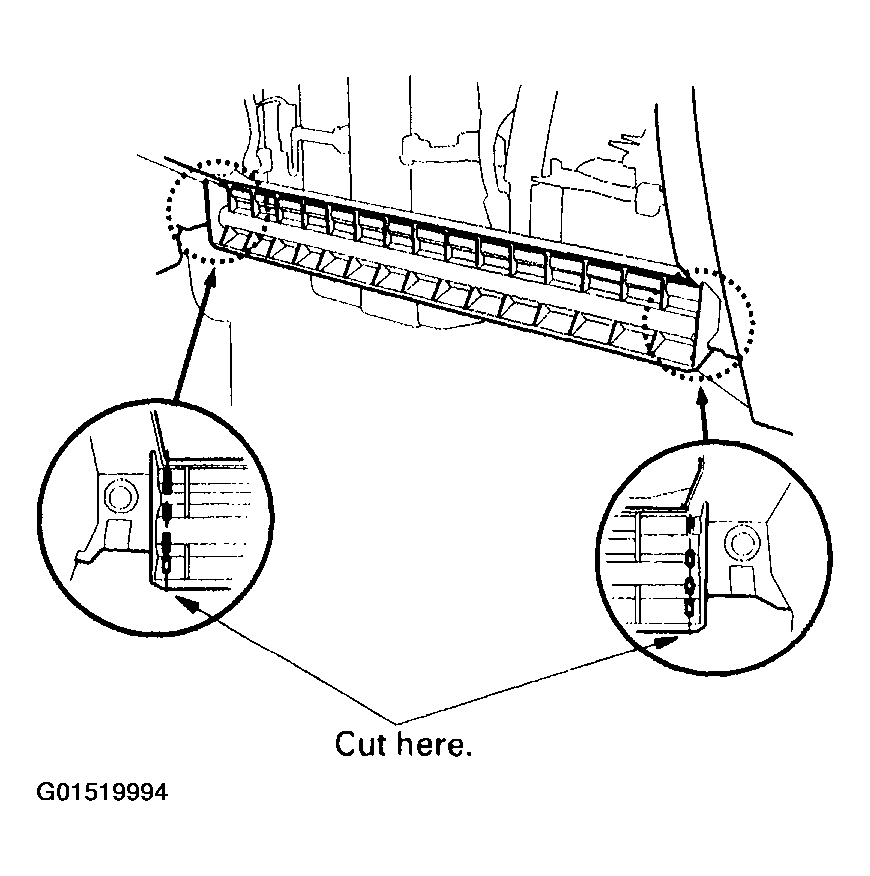

Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown, and discard it.

Fig 1: Cutting Plastic Cross Brace In Glove Box Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, the screws and the glove box frame.

Fig 2: Removing Bolts, Screws & Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

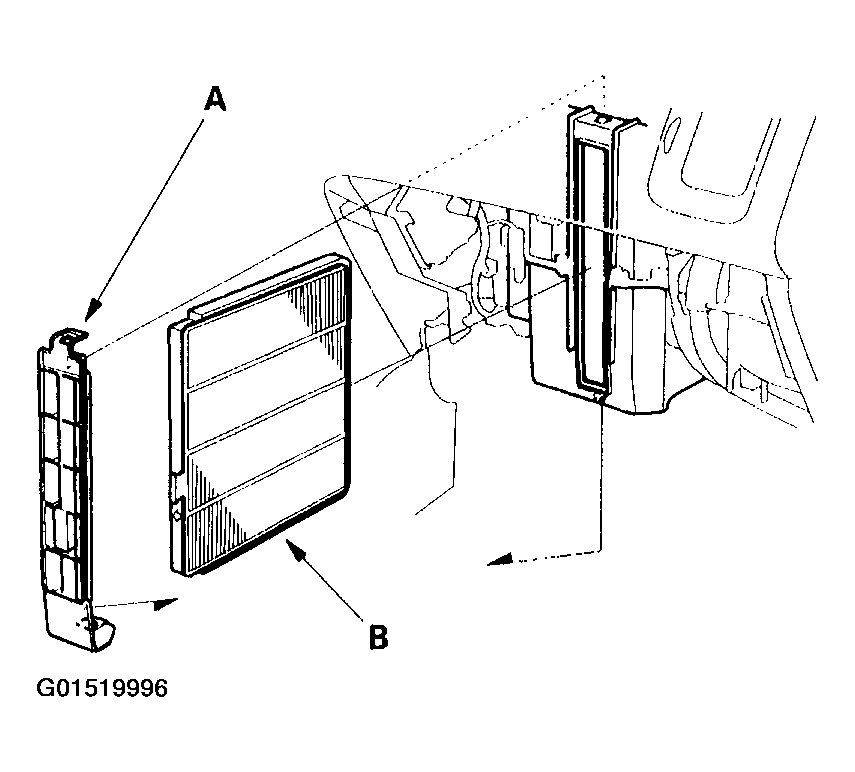

Remove the filter lid (A) from the evaporator, then pull out the dust and pollen filter (B).

Fig 3: Removing Filter Lid from Evaporator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the evaporator.
Install the glove box frame and glove box in the reverse order of removal.
