General Troubleshooting Information

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

How to Retrieve a DTC

The heater control panel has a self-diagnosis function. To run the self-diagnosis function do the following:

Turn the ignition switch ON (II).
Turn the fan switch OFF.
Press the recirculation control button to select Recirculation (recirculation indicator comes on).
Press and hold the recirculation control button to select Fresh (recirculation indicator goes off). Continue to hold the button until the recirculation indicator comes on for 2 seconds and then goes off.
- If the system is OK the recirculation indicator stays off.
- If any trouble is found the recirculation indicator blinks the diagnostic trouble code (DTC) to indicate faulty circuit or component.

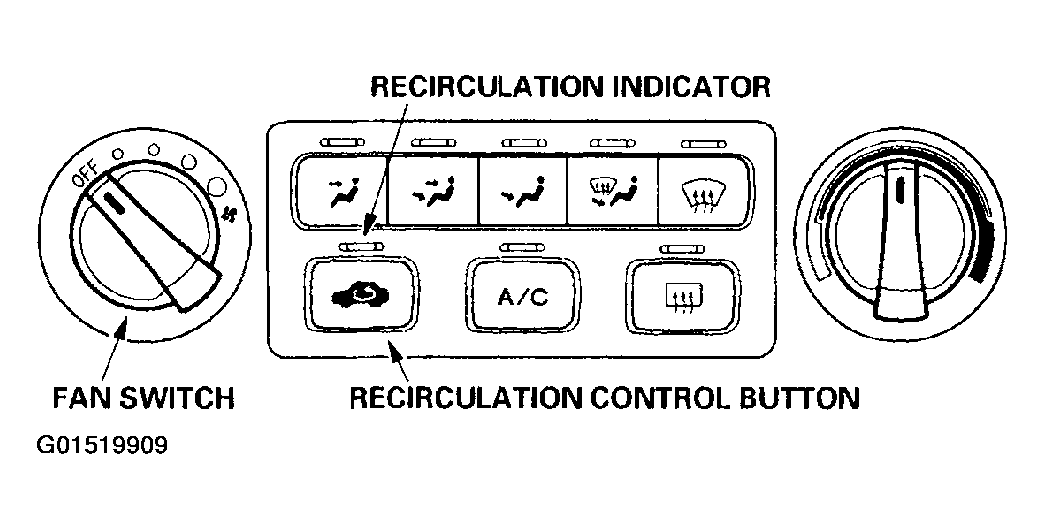

Fig 1: Retrieving DTC
Courtesy of AMERICAN HONDA MOTOR CO., INC.

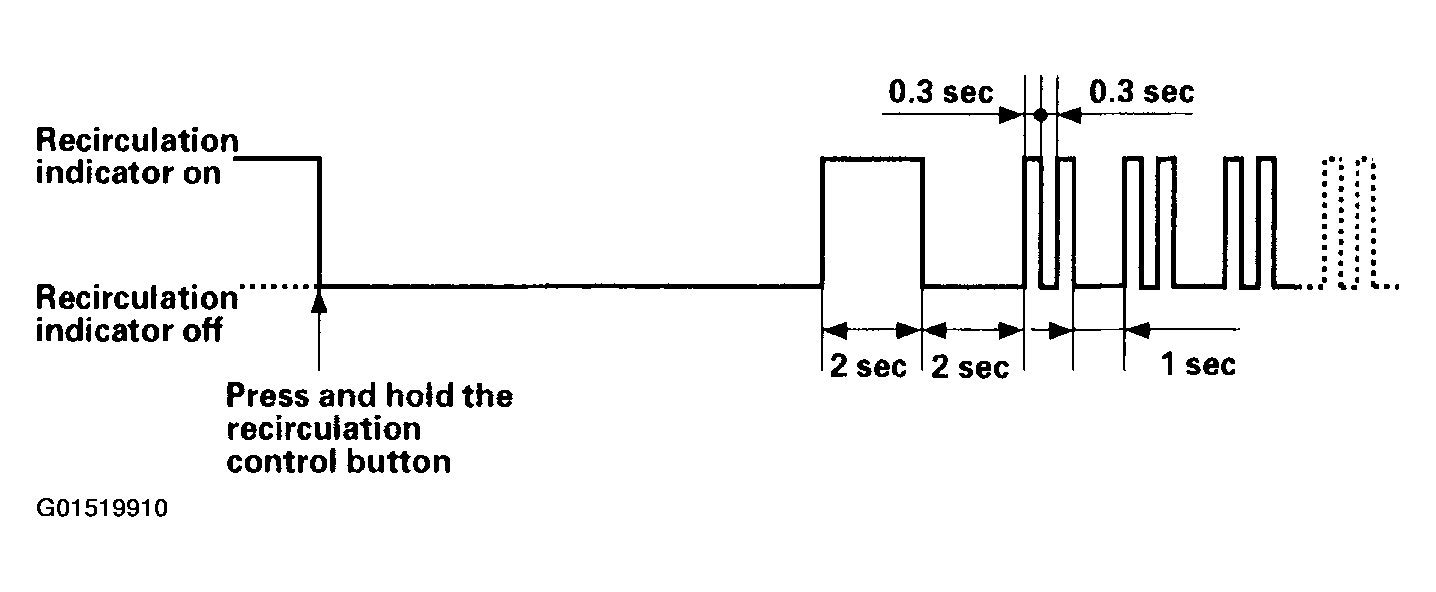

Fig 2: Example Of DTC Indicator Pattern (DTC 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Cancelling the Self-diagnosis Function
Turn the ignition switch OFF to cancel the self-diagnosis function. After completing repair work run the self diagnosis function again to make sure that there are no other malfunctions.
