Mode Control Motor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 7P connector (A) from the mode control motor (B). Remove the rods (C) of the mode control motor from the mode control motor linkage (D) and the mode control linkage (E). Remove the self-tapping screws and the mode control motor from the heater unit.

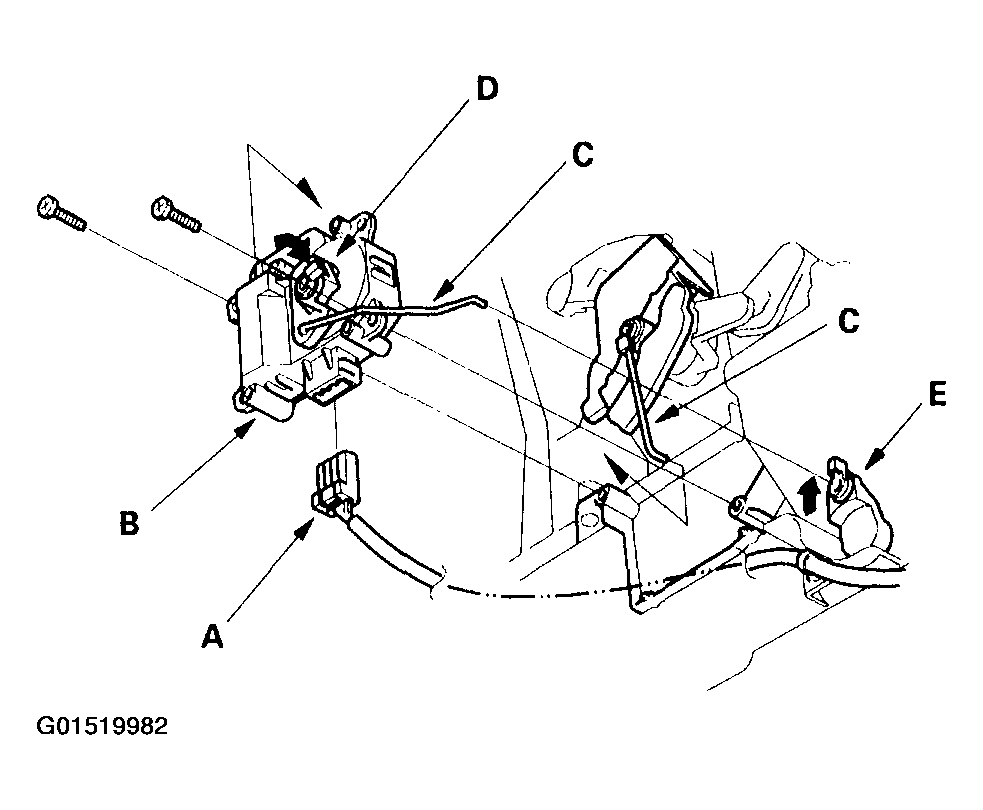

    Fig 1: Disconnecting 7P Connector From Mode Control Motor
    G01519982Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
