Heater Control Panel Inputs and Outputs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Heater Control Panel 22P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

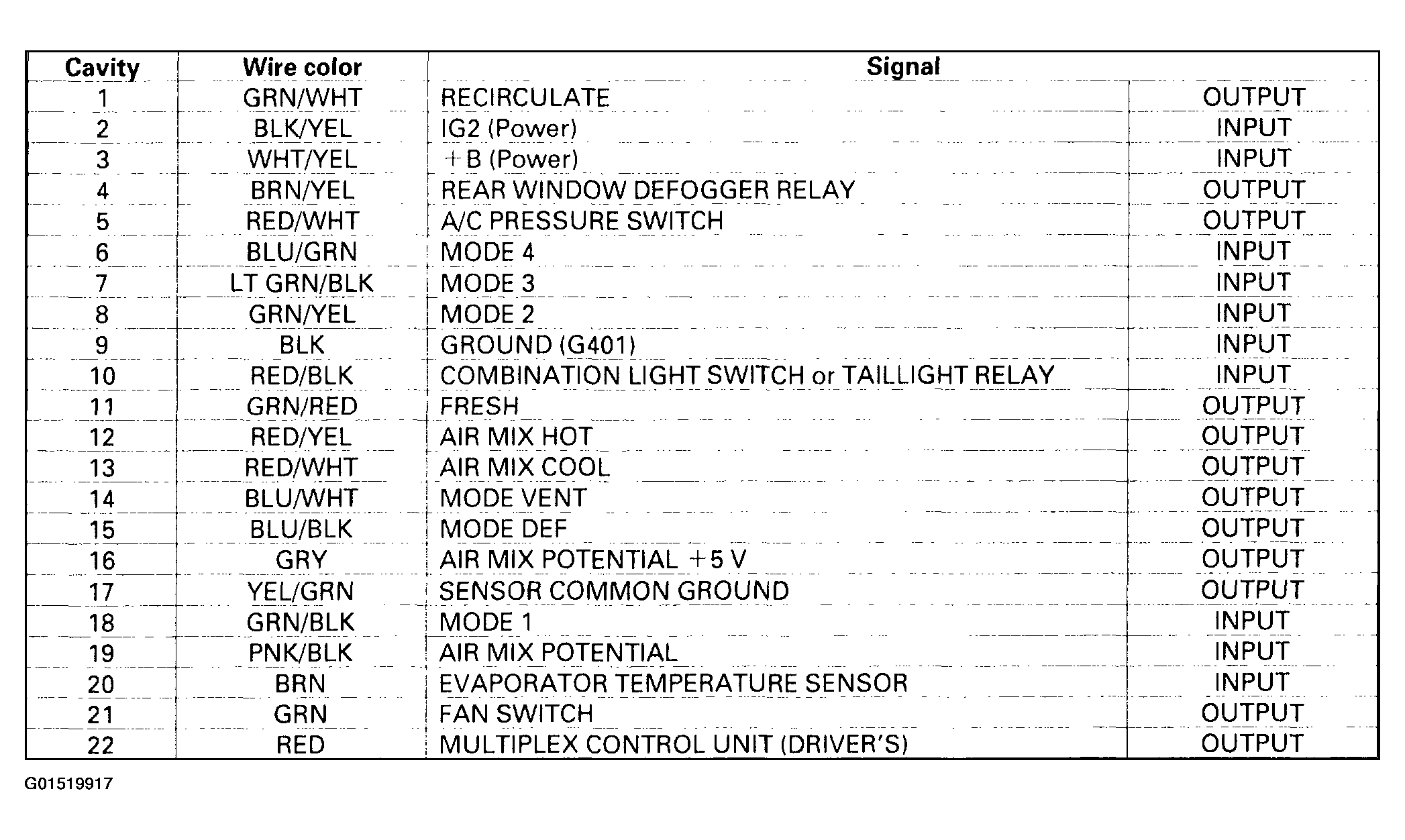

Fig 2: Heater Control Panel Inputs & Outputs Identification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
