Oil Pan Removal

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the engine is already out the vehicle, go to step  6
  2. Raise the vehicle on a hoist to full height.
  3. Drain the engine oil (see ENGINE OIL REPLACEMENT ).
  4. Remove the splash shield (see step 29 in ENGINE REMOVAL ).
  5. Remove exhaust pipe A (see step 33 in ENGINE REMOVAL ).
  6. Remove the torque converter cover (A) and the two bolts (B) securing the transmission.

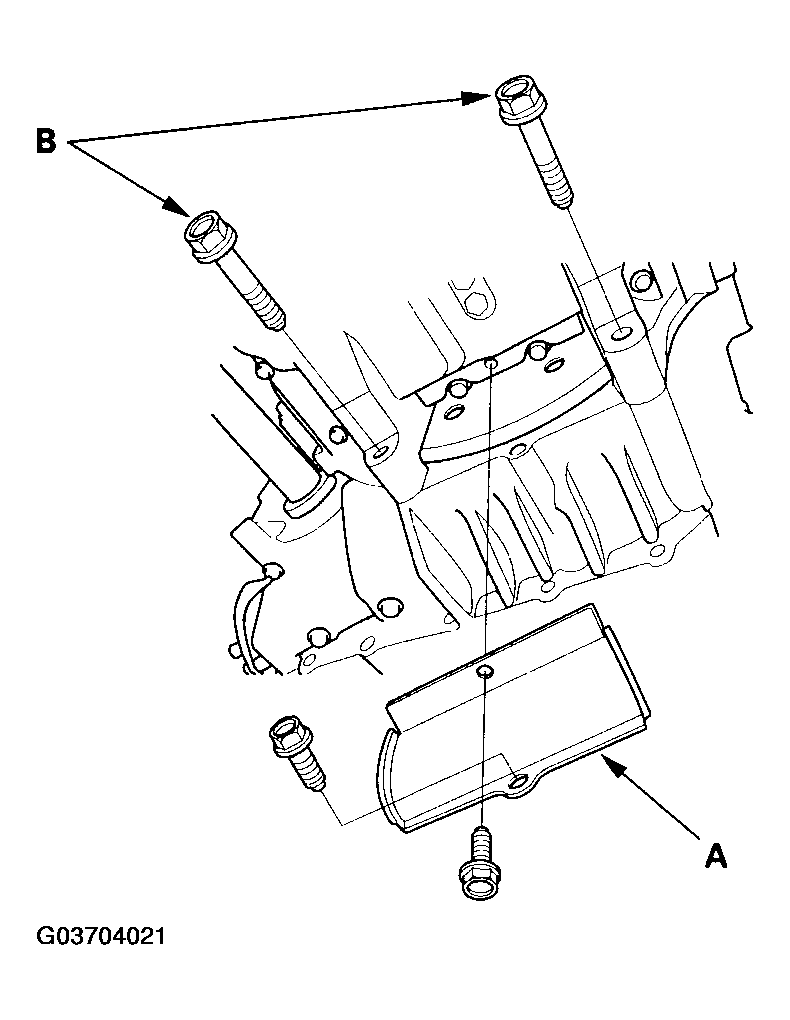

    Fig 1: Removing Torque Converter Cover And Two Bolts Securing Transmission
    G03704021Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts securing the oil pan.
  8. Using a flat blade screwdriver, separate the oil pan from the block in the places shown in Fig 2 .
    Fig 2: Separating Oil Pan From Block
    G03704022Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the oil pan.
