Fan Motor Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

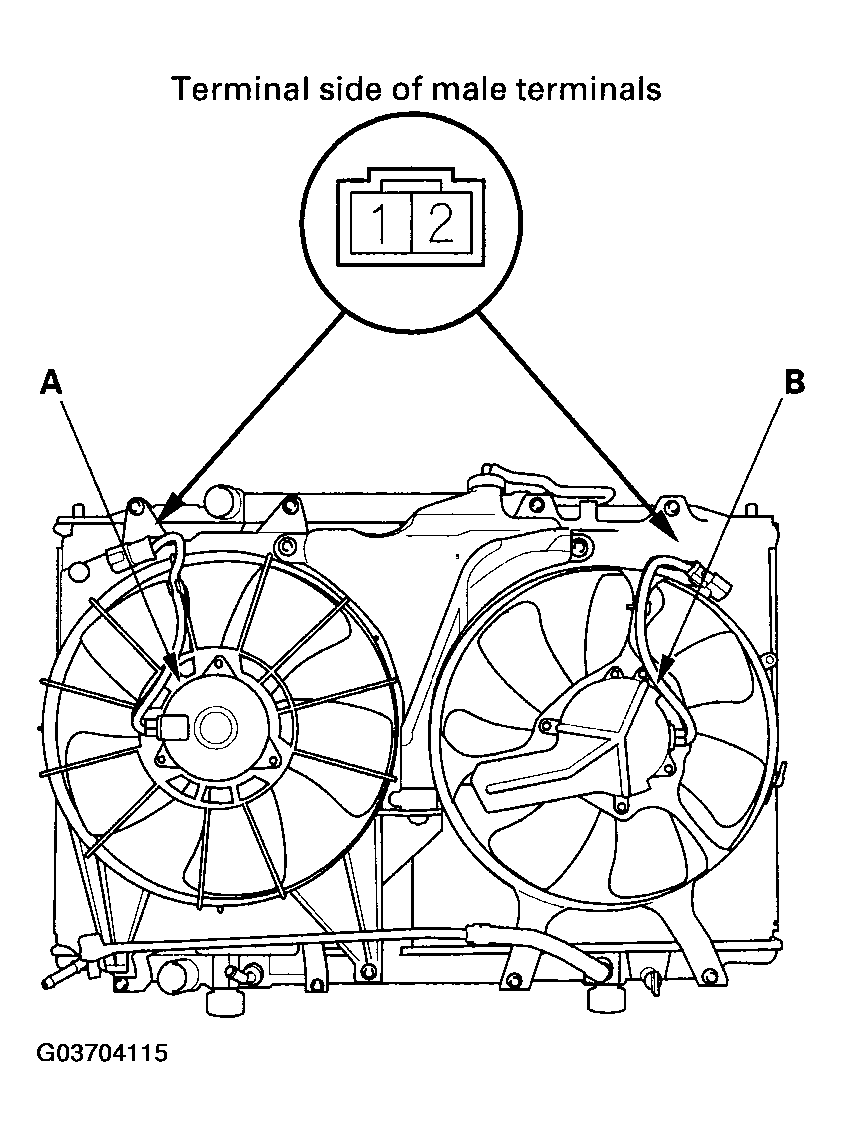

Fig 1: Disconnecting 2P Connectors From Radiator Fan Motor And A/C Condenser Fan Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting battery power to the No. 2 terminal and ground to the No. 1 terminal.
If either motor fails to run or does not run smoothly, replace it (see RADIATOR AND A/C CONDENSER FAN REPLACEMENT ).
