PCM A/T Control System Electrical Connections

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

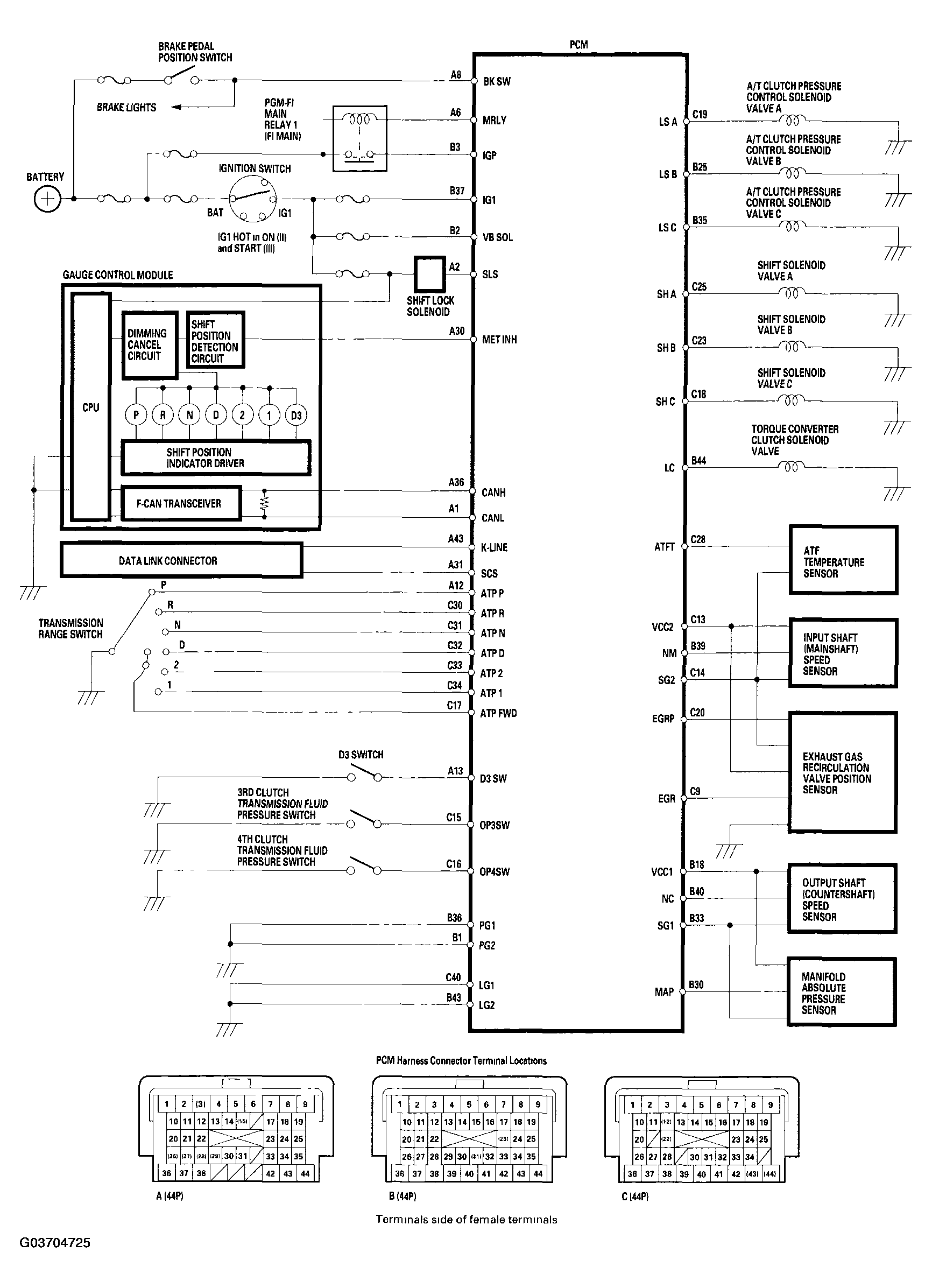

Fig 1: PCM A/T Control System Electrical Connections Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
