Master Cylinder Inspection

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before reassembling, check that all parts are free of dirt and other foreign particles.
Do not try to disassemble the master cylinder assembly. If it is defective, replace the master cylinder assembly with a new one.
Do not allow dirt or foreign matter to contaminate the brake fluid.
Bleed the brake system (see BRAKE SYSTEM BLEEDING ).

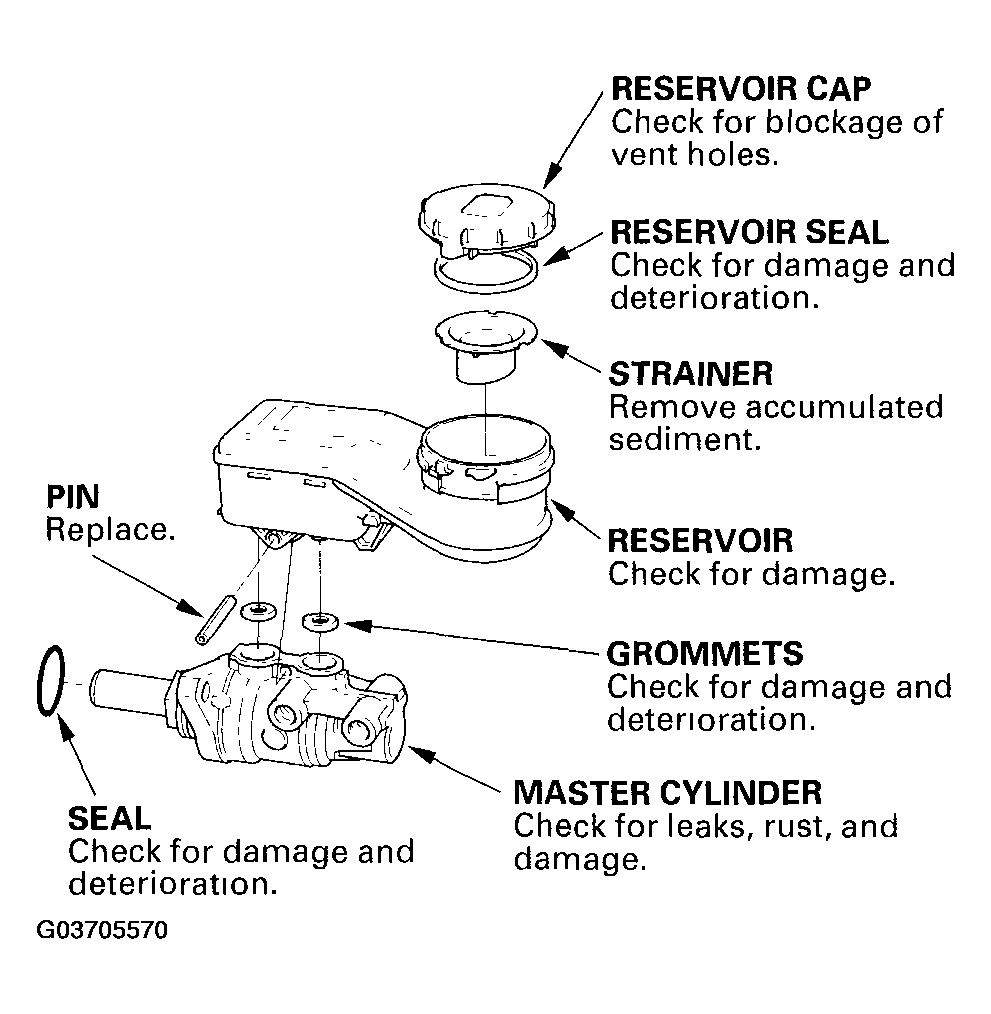

Fig 1: Inspecting Master Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
