Rear Brake Disc Inspection: Runout

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
  2. Remove the rear wheels.
  3. Remove the brake pads (see REAR BRAKE PAD INSPECTION AND REPLACEMENT  ).
  4. Inspect the brake disc/drum surface for damage and cracks. Clean the brake disc/drum thoroughly, and remove all rust.
  5. Install suitable flat washers (A) and the wheel nuts (B). Tighten the wheel nuts to the specified torque to hold the brake disc/drum securely against the hub.

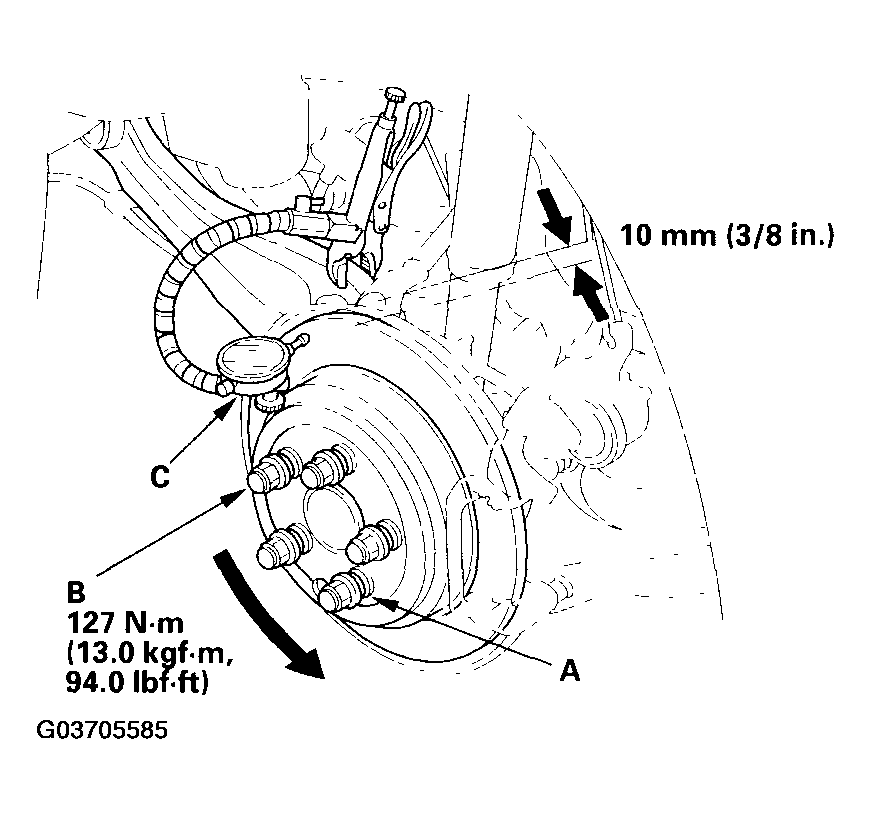

    Fig 1: Installing Suitable Flat Washers And Wheel Nuts
    G03705585Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Set up the dial gauge (C) against the brake disc/drum as shown in Fig 1 , and measure the runout at 10 mm (3/8 in.) from the outer edge of the brake disc.

    Brake disc/drum runout:

    Service limit: 0.10 mm (0.004 in.)

  7. If the brake disc/drum is beyond the service limit, refinish the brake disc/drum with an on-car brake lathe. The "Front Brake Disc Lathe" offered by Snap-on Tools Co. are approved for this operation.

    Max. refinishing limit: 9.0 mm (0.35 in.)

    NOTE:
    • If the brake disc/drum is beyond the service limit for refinishing, replace it (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
    • A new brake disc/drum should be refinished if its runout is greater than 0.10 mm (0.004 in.).
