Power Mirror Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the door glass fully.
  2. With your hand, carefully release the clip, lift the cover upward to release the hook (A), and remove the cover (B) in the sequence shown in Fig 1 .

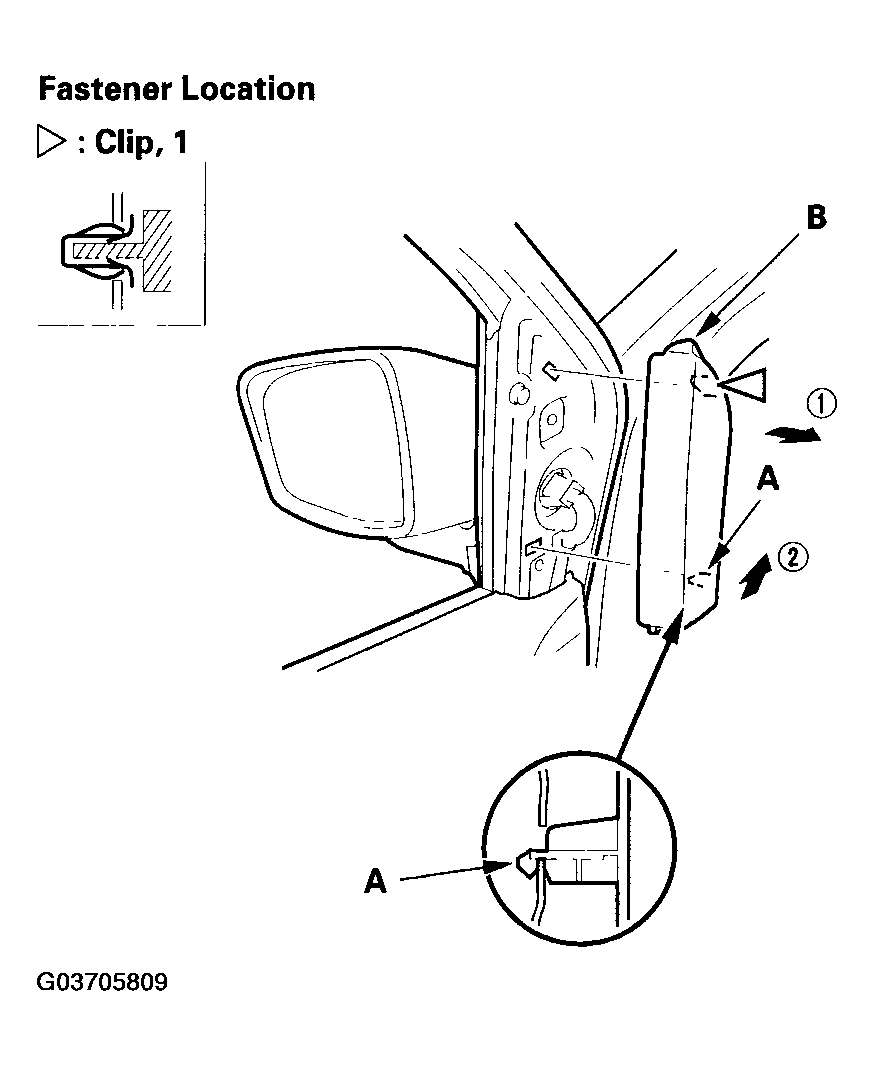

    Fig 1: Removing Cover In Sequence
    G03705809Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (A).

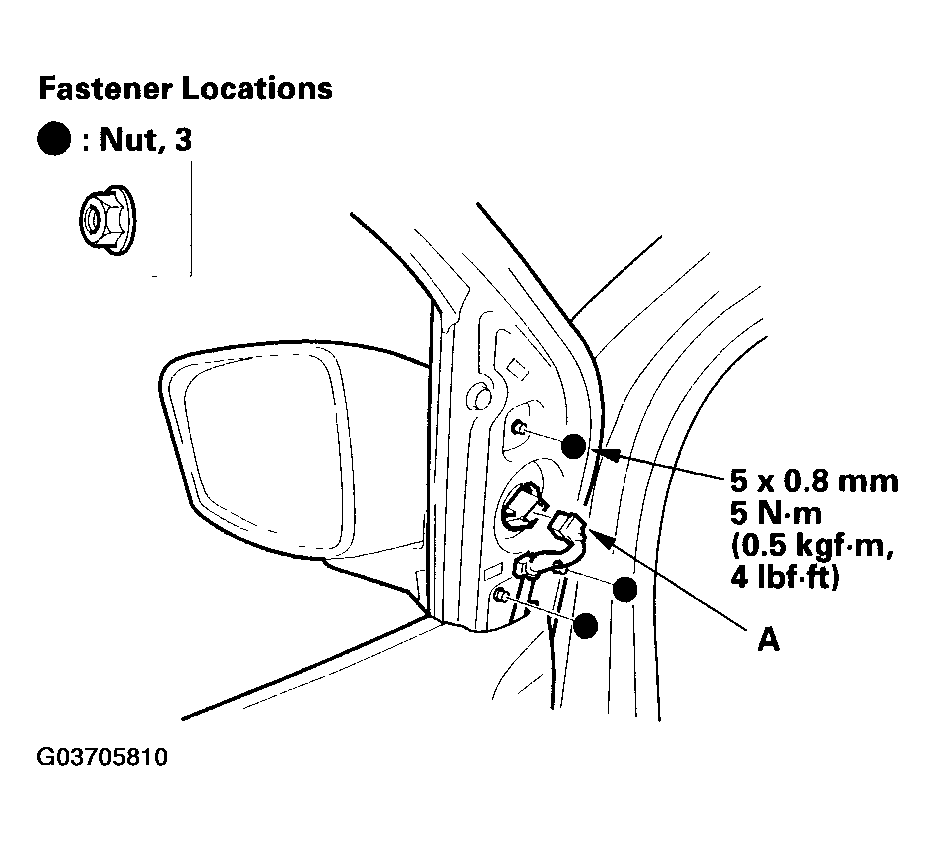

    Fig 2: Disconnecting Connector
    G03705810Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. While holding the mirror, remove the nuts securing the mirror.
  5. While holding the mirror, push in on the connector clips (A), then push out to remove the mirror (B). Take care not to scratch the door.

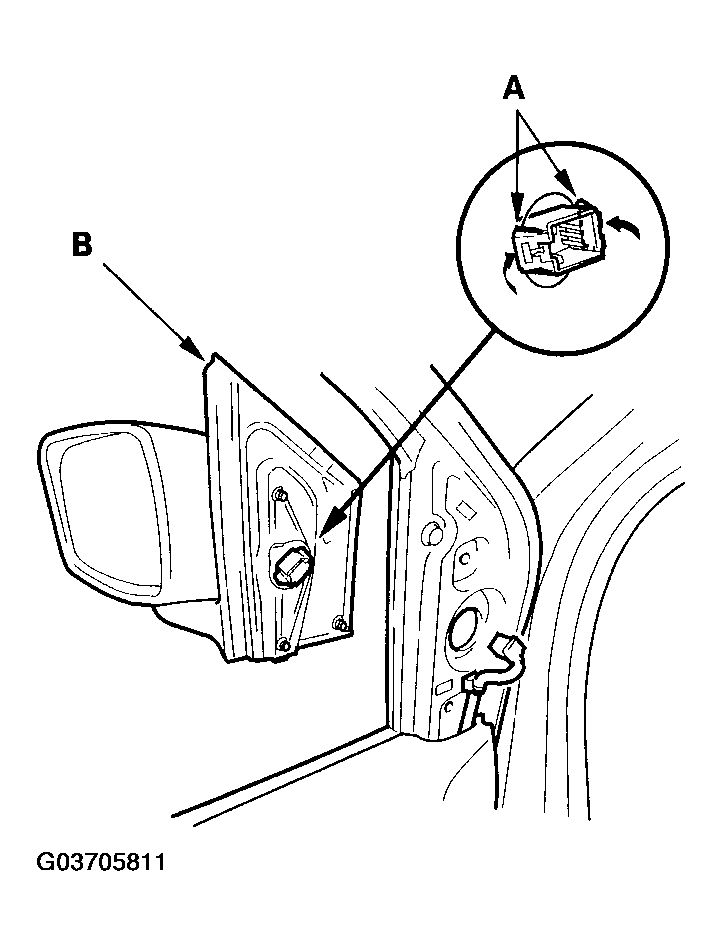

    Fig 3: Pushing Out To Remove Mirror
    G03705811Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.
