Driver's Lower Dashboard Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard and related parts.

Remove the dashboard (see DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).
Remove the screws and the driver's lower dashboard switch panel (A).

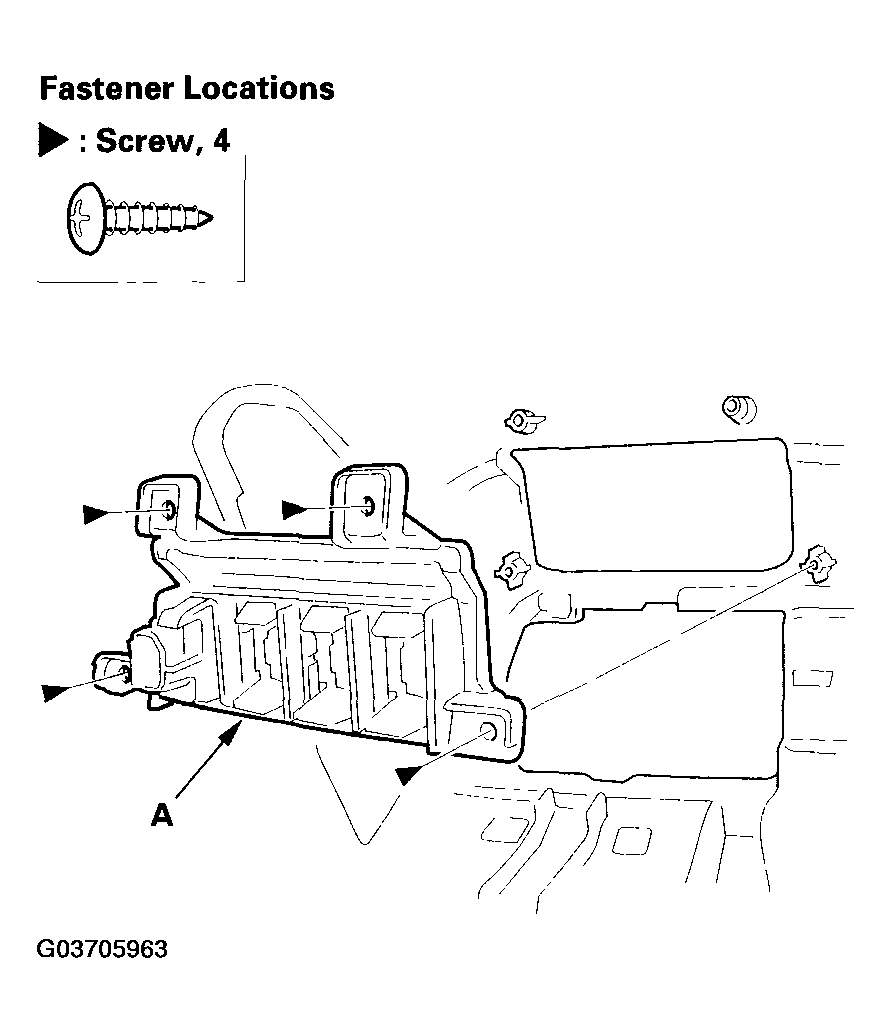

Fig 1: Removing Driver's Lower Dashboard Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal.
