Front Bulkhead Lower Trim Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the front bumper and body.
Put on gloves to protect your hands.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the clips, then remove the front bulkhead lower trim (A).

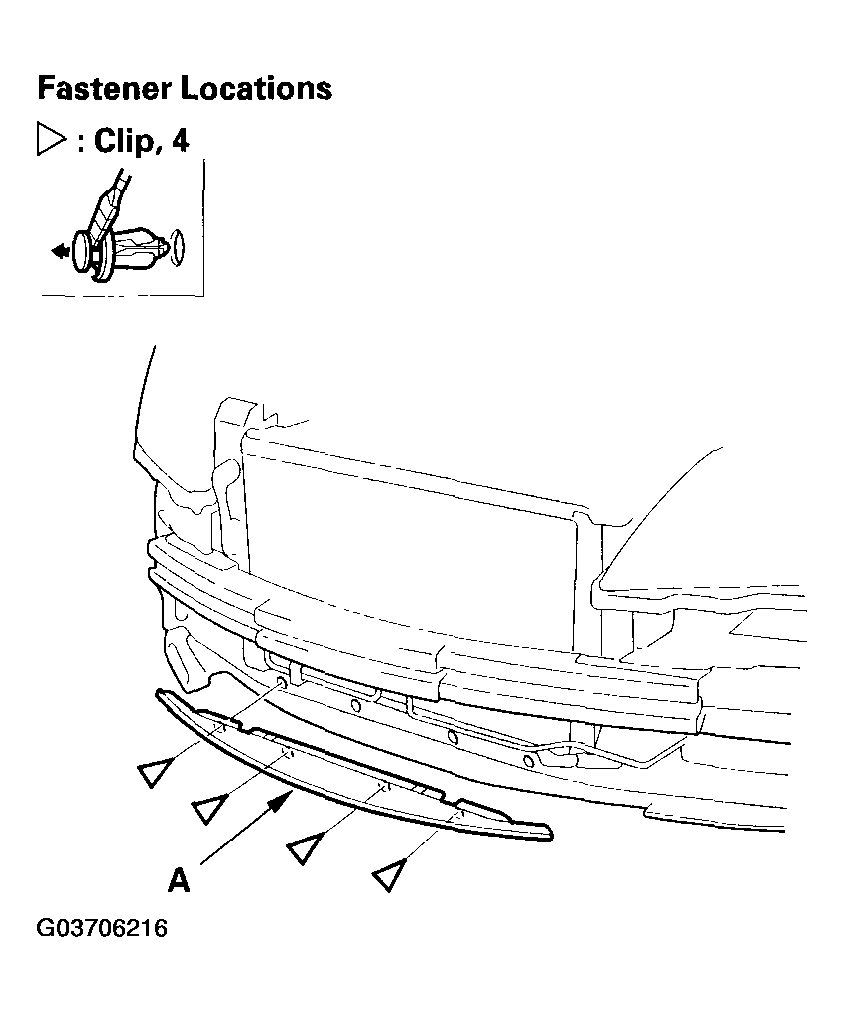

Fig 1: Removing Front Bulkhead Lower Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
