Front Fender Fairing Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the body.
Put on gloves to protect your hands.

Remove the front inner fender as needed (see FRONT INNER FENDER REPLACEMENT ).
Open the front door.

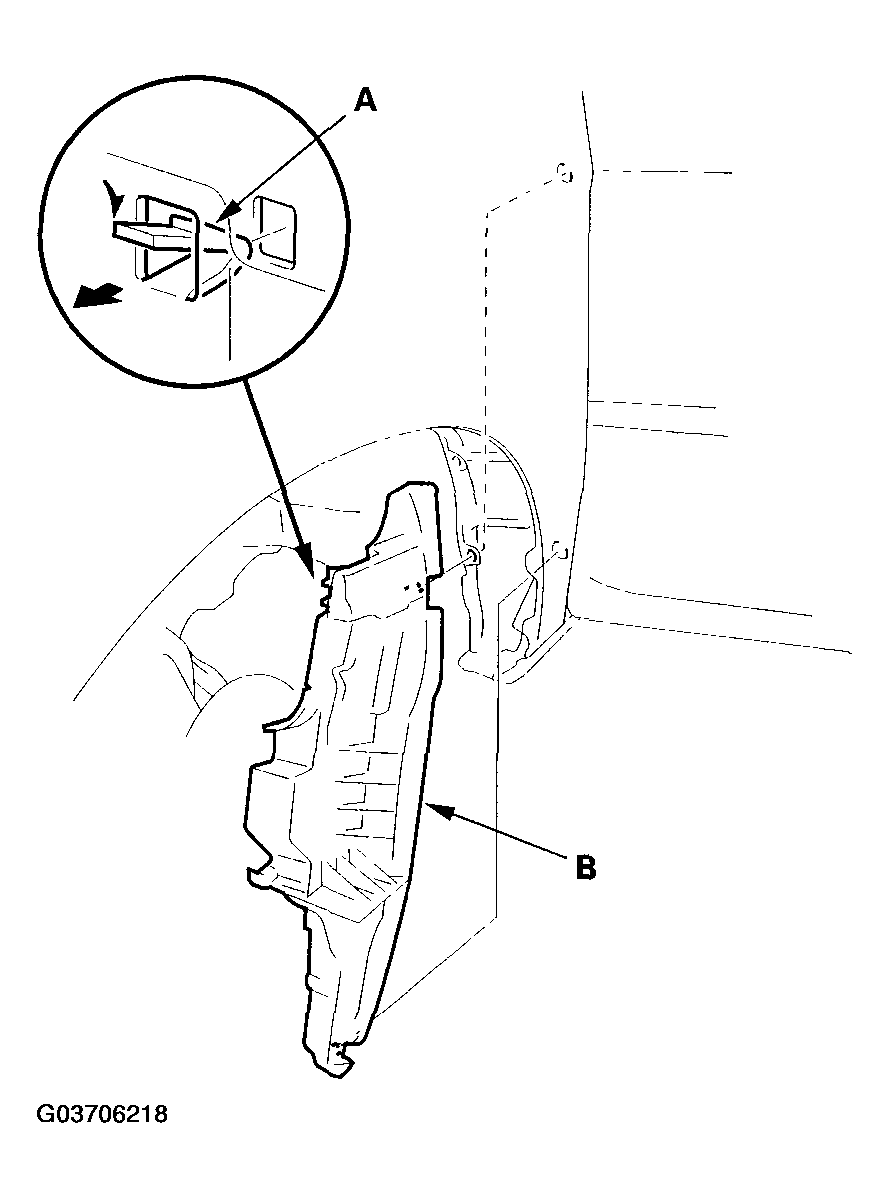

From inside the door, detach the hooks (A) securing the front fender fairing (B).

Fig 1: Detaching Hooks Securing Front Fender Fairing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

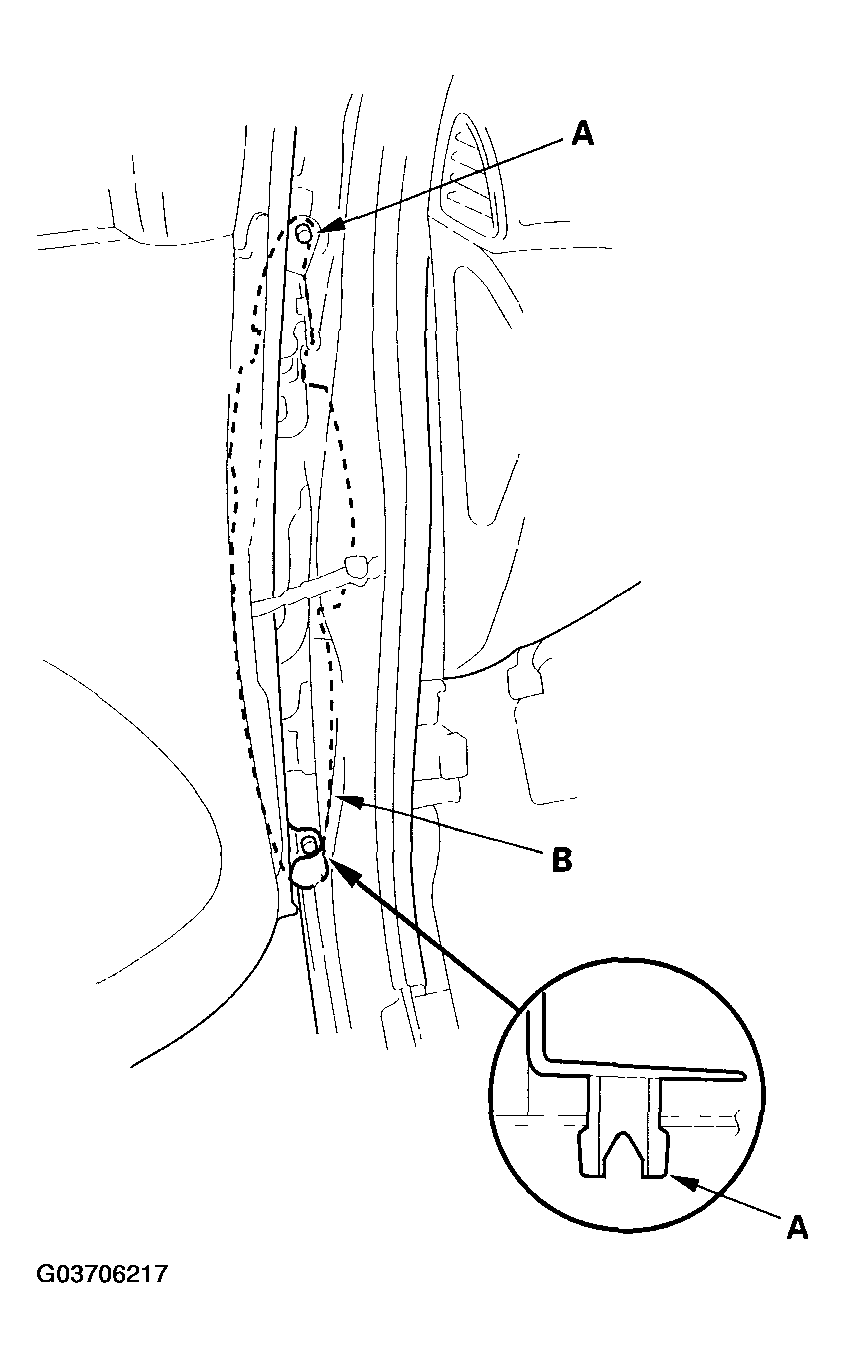

Detach the hook (A), then remove the front fender fairing (B).

Fig 2: Removing Front Fender Fairing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the fender fairing in the reverse order of removal, and push the hooks into place securely.
