Fuel Pipe Protector Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the body.
Put on gloves to protect your hands.

Remove the left rear wheel (see step 1 in HUB BEARING UNIT REPLACEMENT ).
Remove the bolts (A) and clips (B), then remove the fuel pipe protector (C).

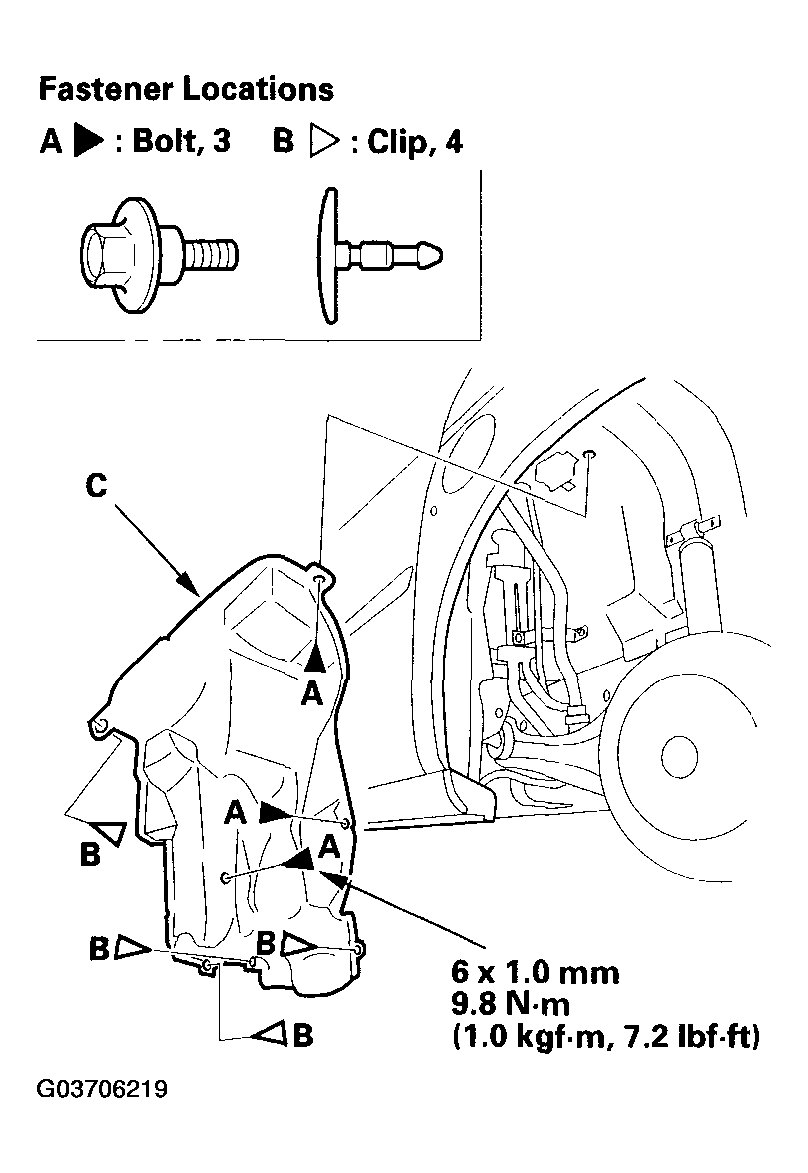

Fig 1: Removing Fuel Pipe Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the protector in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
