WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the rear bumper and body.
  1. Remove the screws (A, B), then remove the rear inner fender (C) from the rear bumper (D) and body.

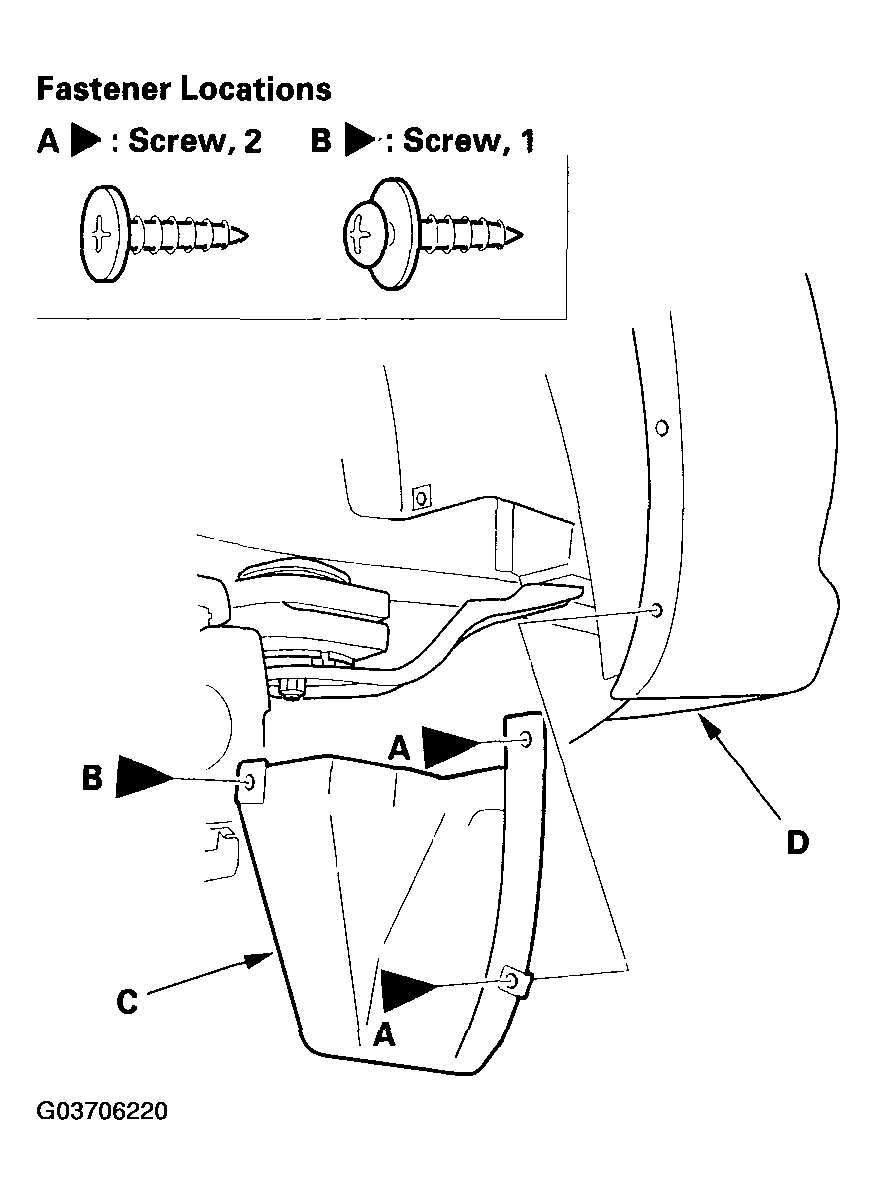

    Fig 1: Removing Rear Inner Fender
    G03706220Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the inner fender in the reverse order of removal.
