Dust and Pollen Filter Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The dust and pollen filter should be replaced every 30,000 miles (48,000 km) or 24 months, whichever comes first. Replace the filter more often if the airflow is less than usual, or if the vehicle is driven in areas that have high concentrations of soot from industry or diesel powered vehicles.

  1. Remove the glove box housing, (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the dust and pollen filter assembly (A) from the evaporator.

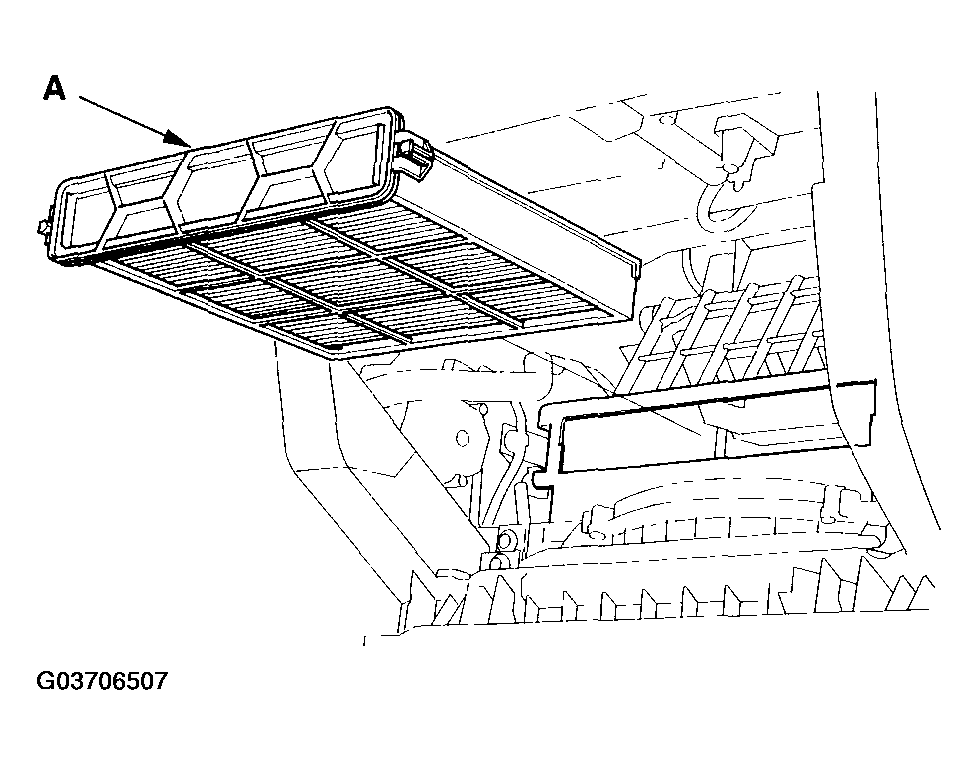

    Fig 1: Dust And Pollen Filter Location
    G03706507Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the filter (A) from the housing (B), and replace the filter.

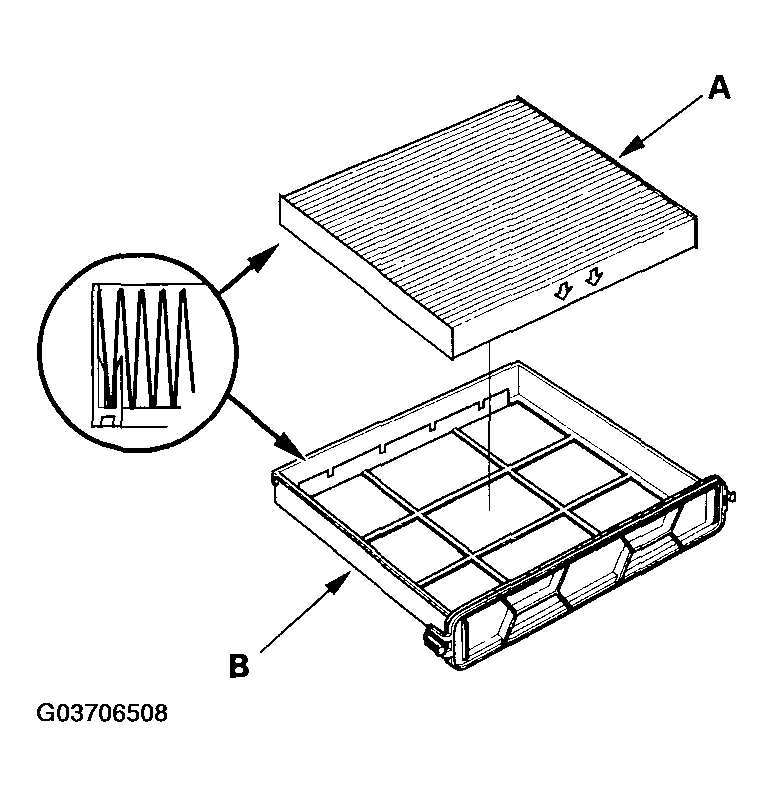

    Fig 2: Removing Filter
    G03706508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the evaporator.
