Floor Jack

  1. Set the parking brake.
  2. Place a rubber pad between the lift platform and the center support point.
    NOTE: The platform must contact the center support point only; it must not come in contact with any other part of the vehicle.
  3. Position the floor jack under the left or right center support point (A), center the jack lift platform (B) on the jacking point, and jack up the vehicle high enough to fit the safety stands under it.

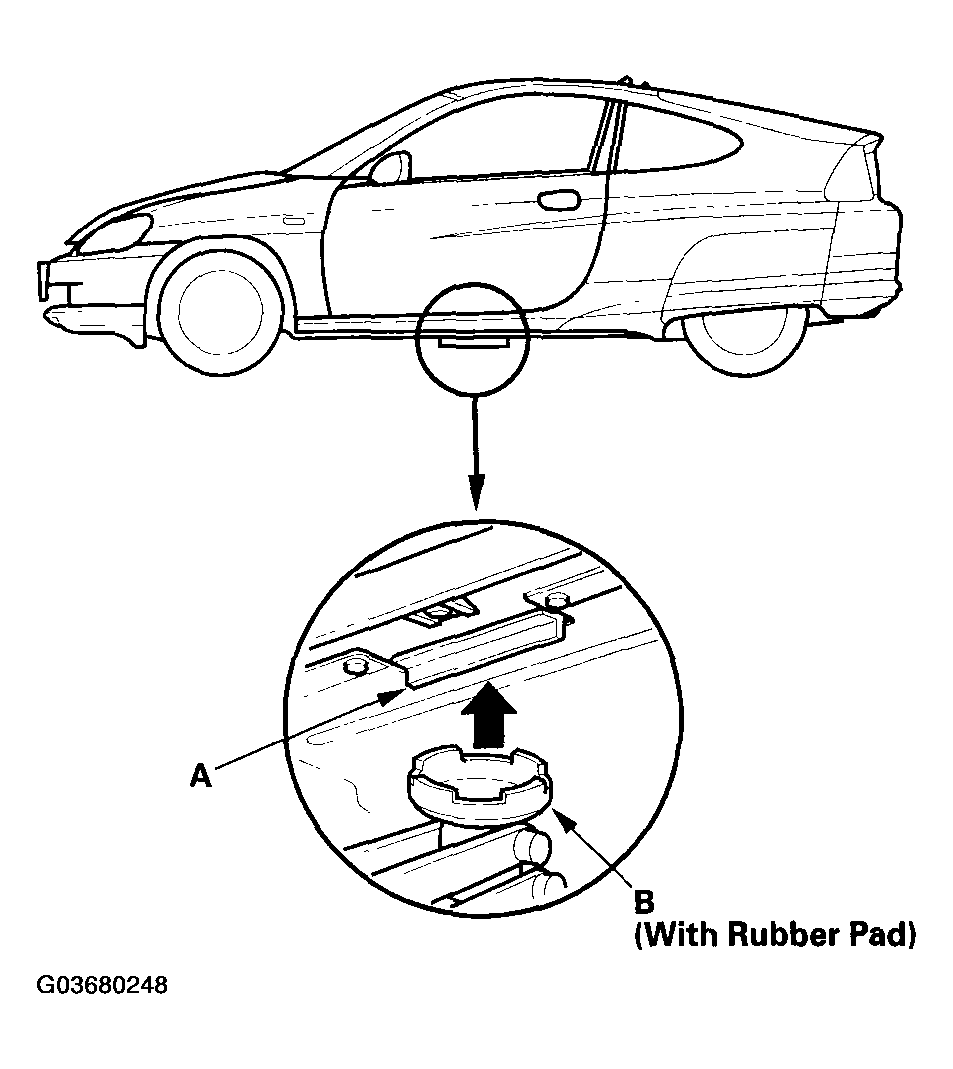

    Fig 1: Identifying Position Of Floor Jack Under Left Or Right Center Support Point, Center Jack Lift Platform On Jacking Point
    G03680248Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Position the safety stands under the support points and adjust them so the vehicle will be level.
  5. Lower the vehicle onto the stands.
