Vacuum Hose Routing

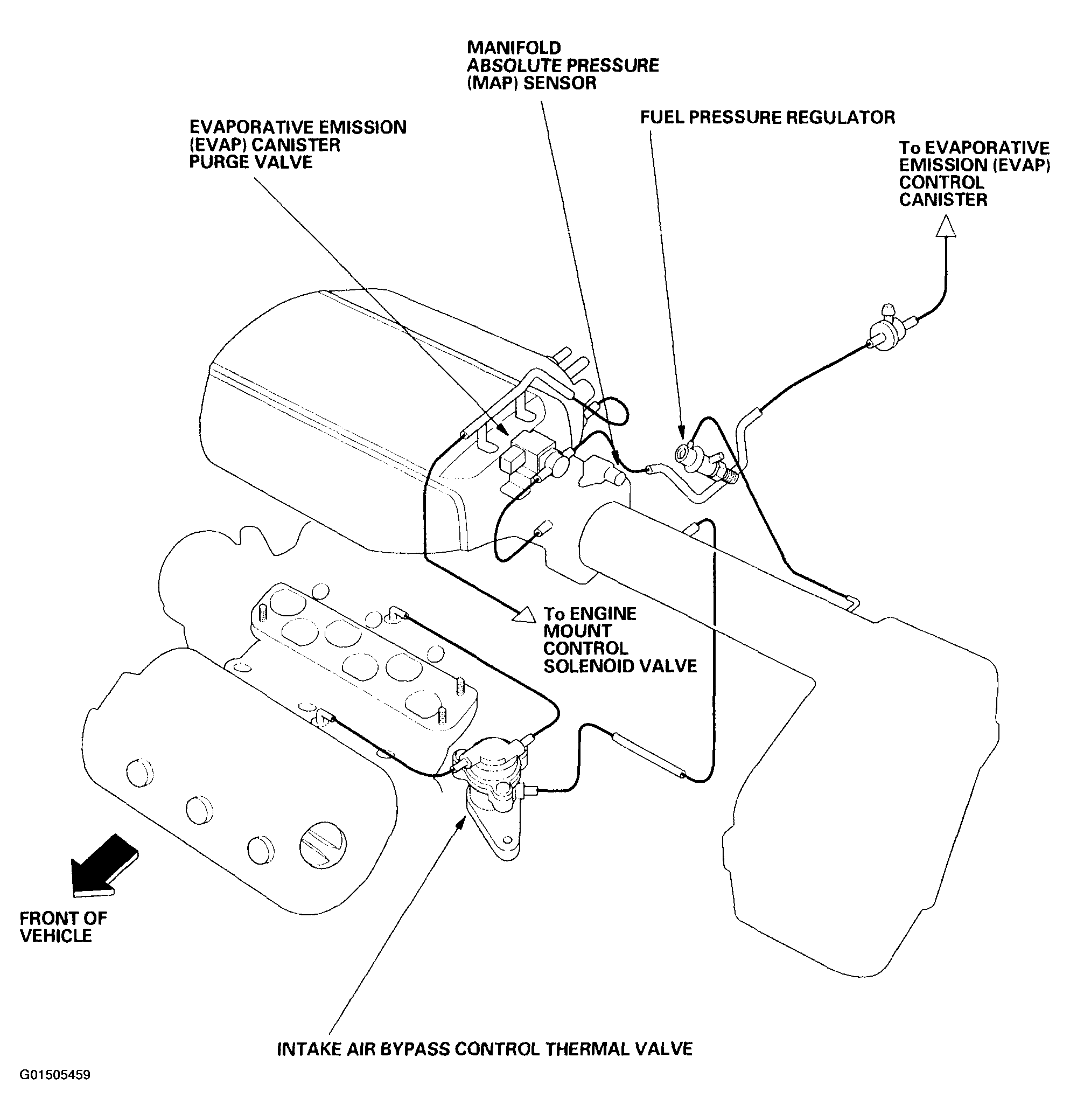

Fig 1: Identifying Vacuum Hose Routing ('99-01 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

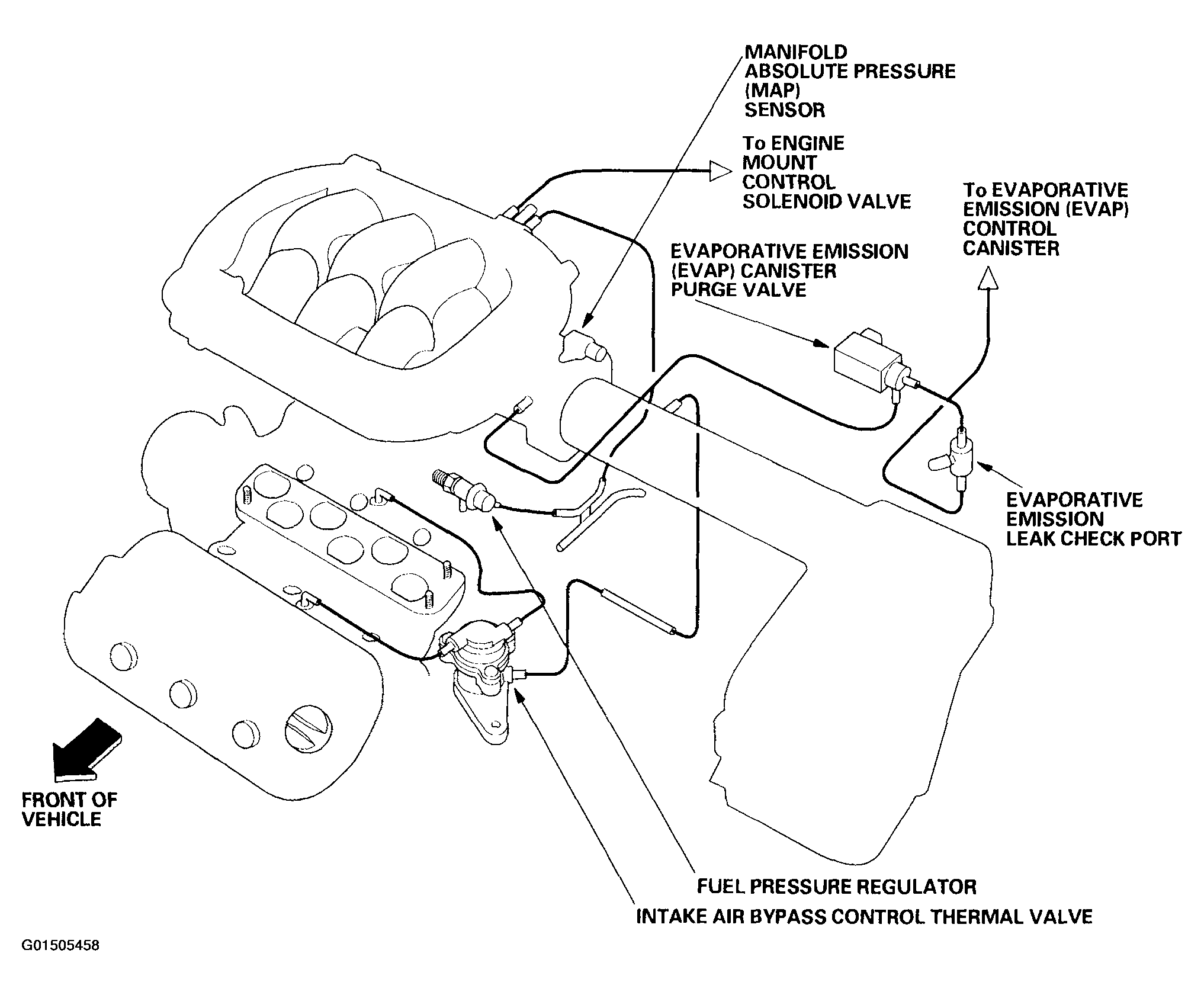

Fig 2: Identifying Vacuum Hose Routing ('02-04 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
