Idle Control System (Except Hybrid & V6)
›
Component Location Index
Component Location Index

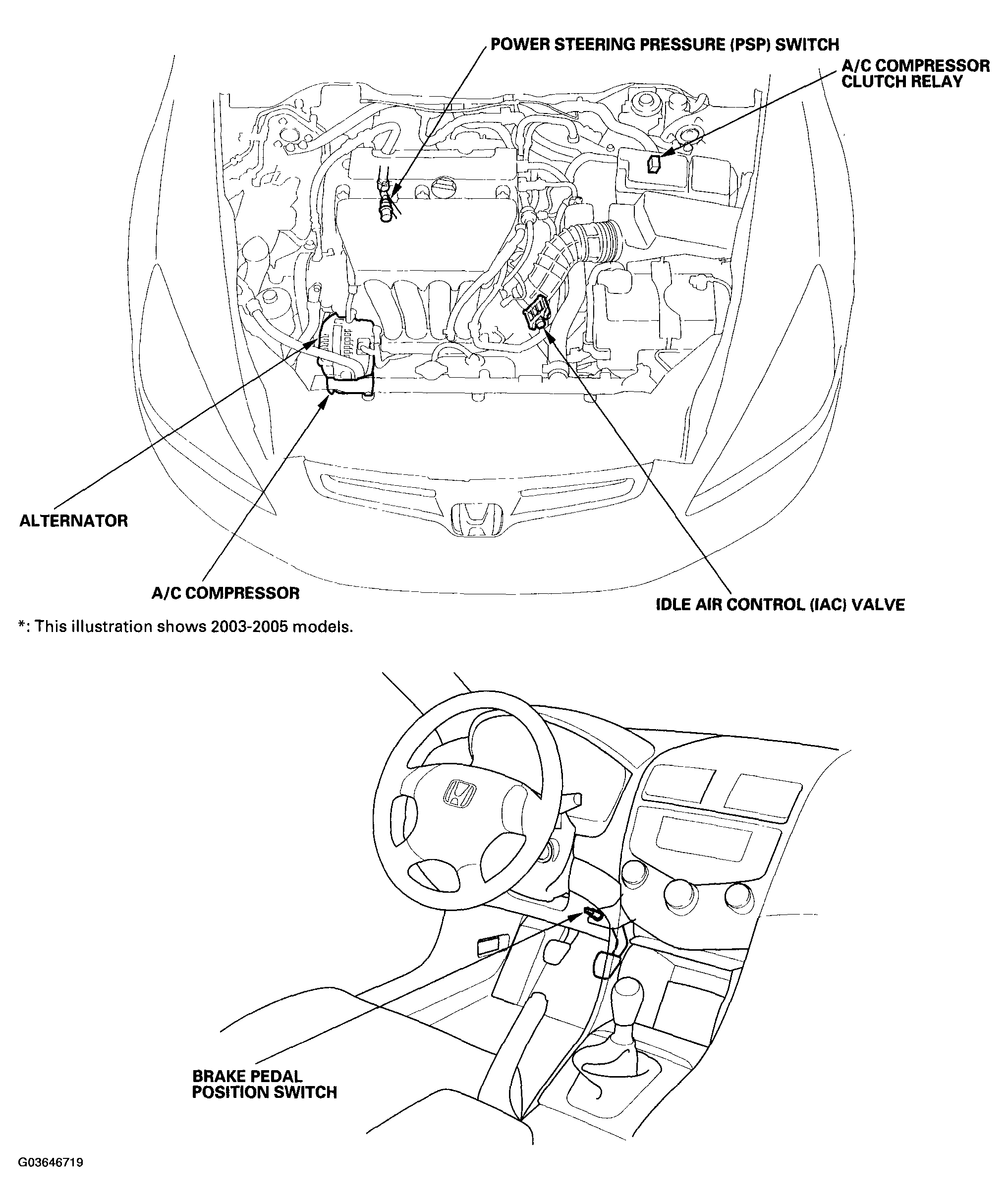

Fig 1: Identifying Idle Control System Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
