Component Location Index

WARNING: This page is about a different variant/trim than selected.

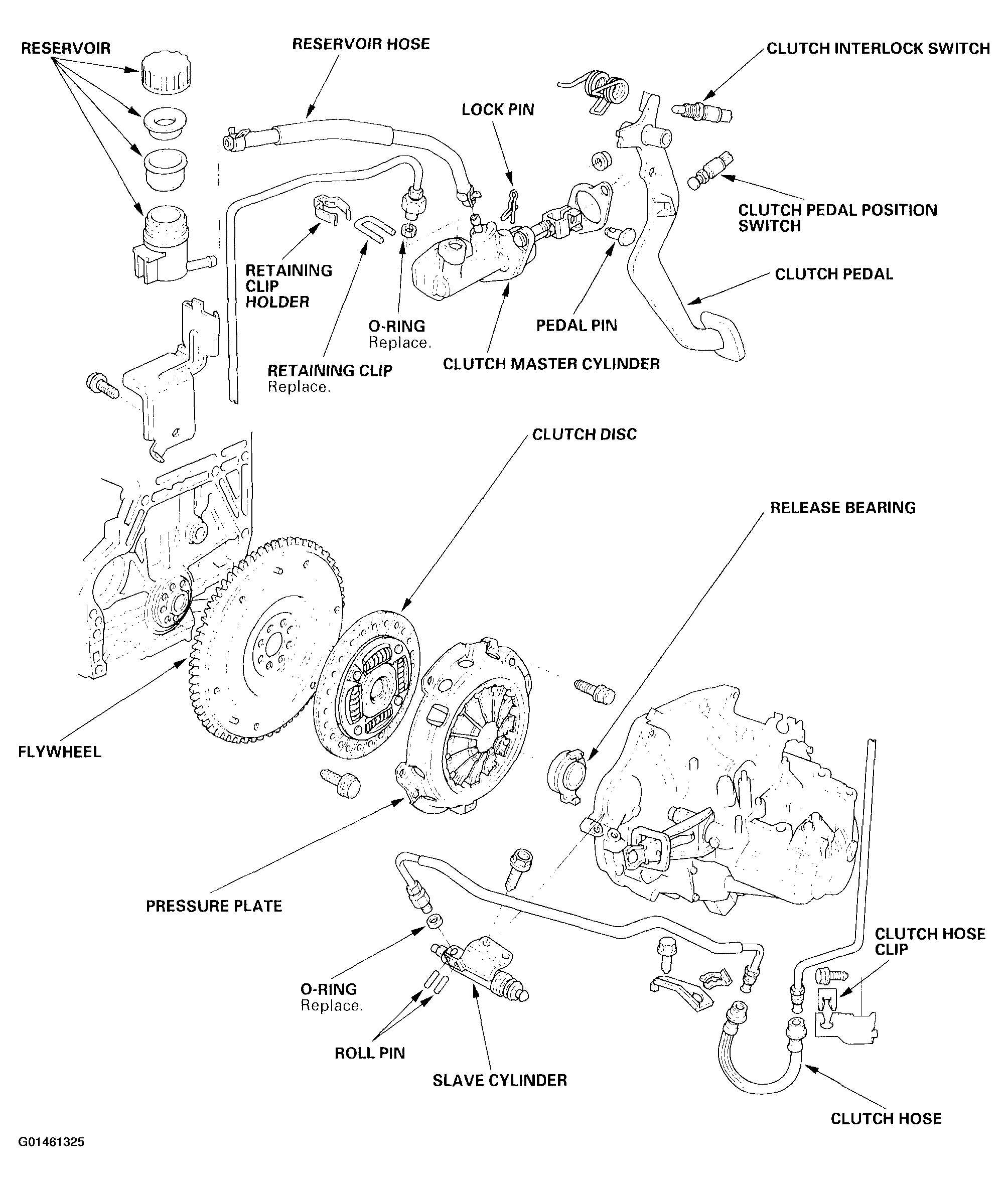

Fig 1: Exploded View Of Clutches Component Locations
G01461325Courtesy of AMERICAN HONDA MOTOR CO., INC.
