Tweeter, Left Connector End View
Tweeter, Left Connector End View

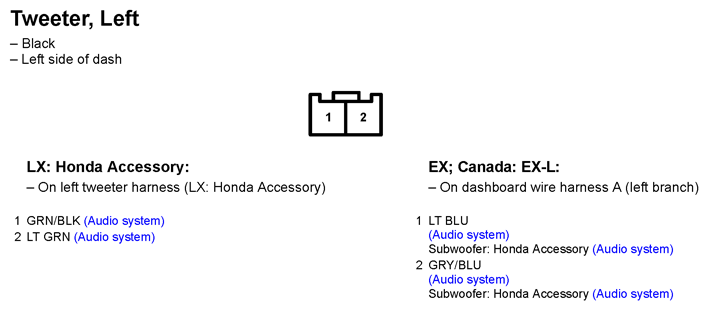

Fig 1: Tweeter, Left Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
