DTC Troubleshooting Index

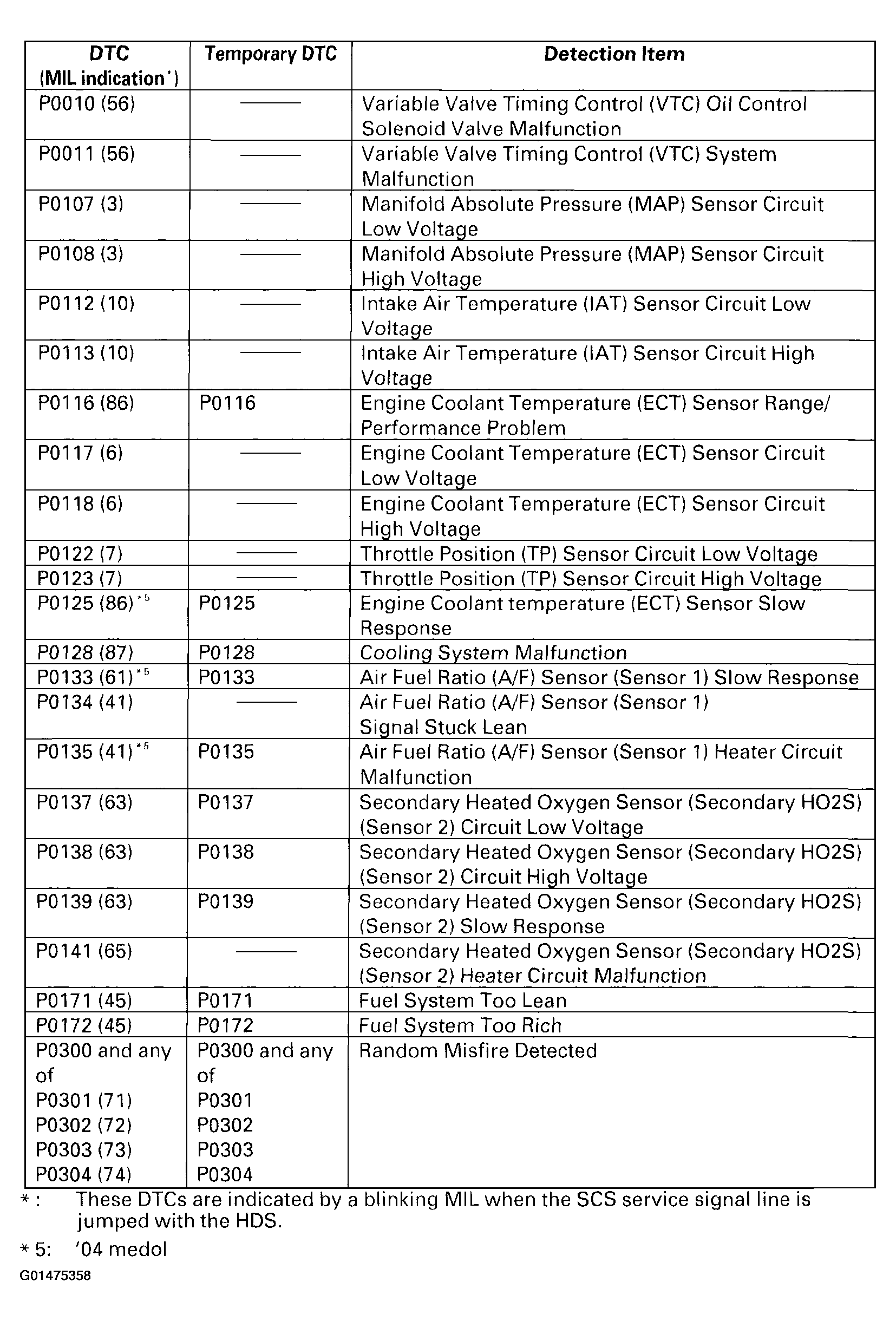

Fig 1: DTC Troubleshooting Chart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

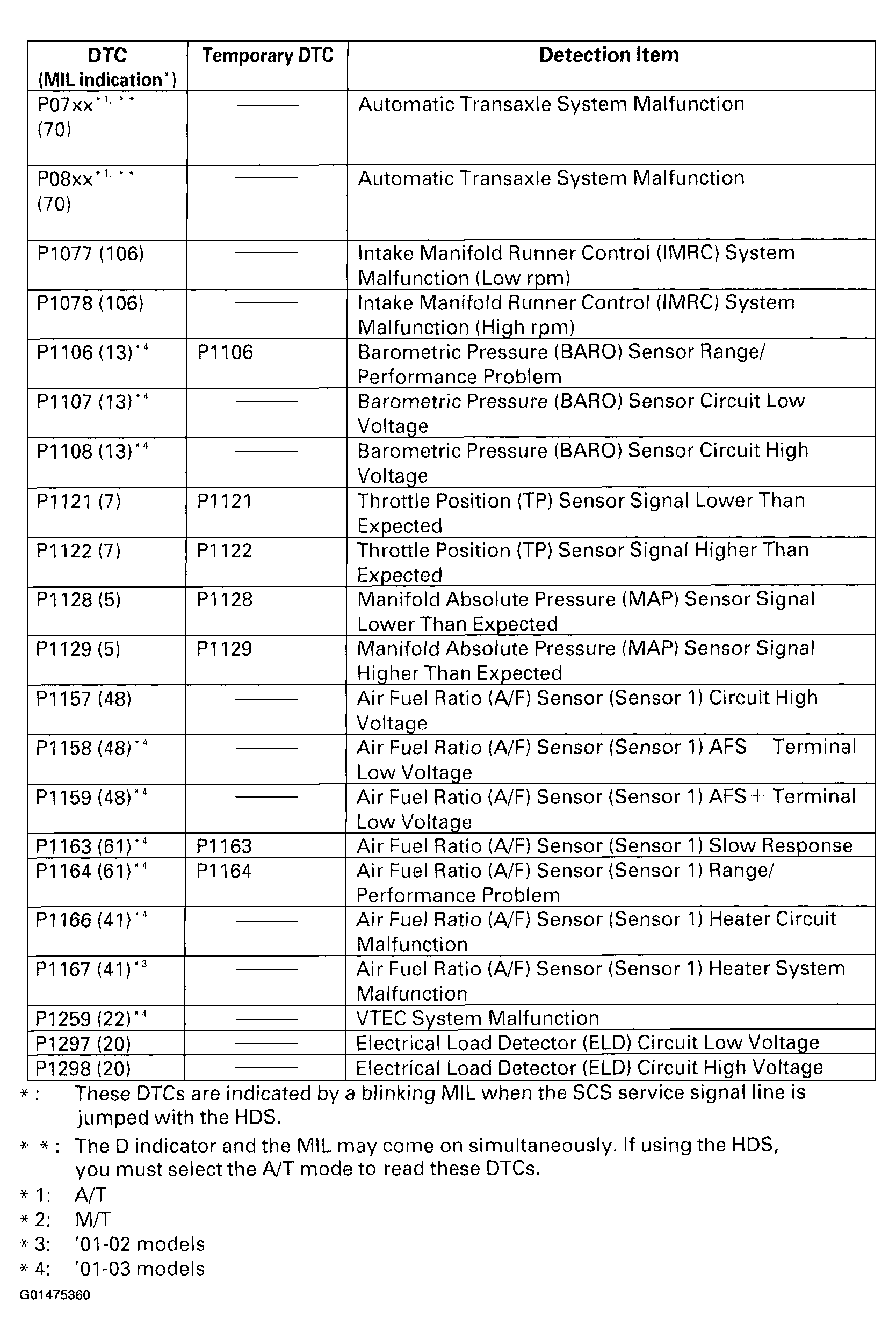

Fig 2: DTC Troubleshooting Chart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

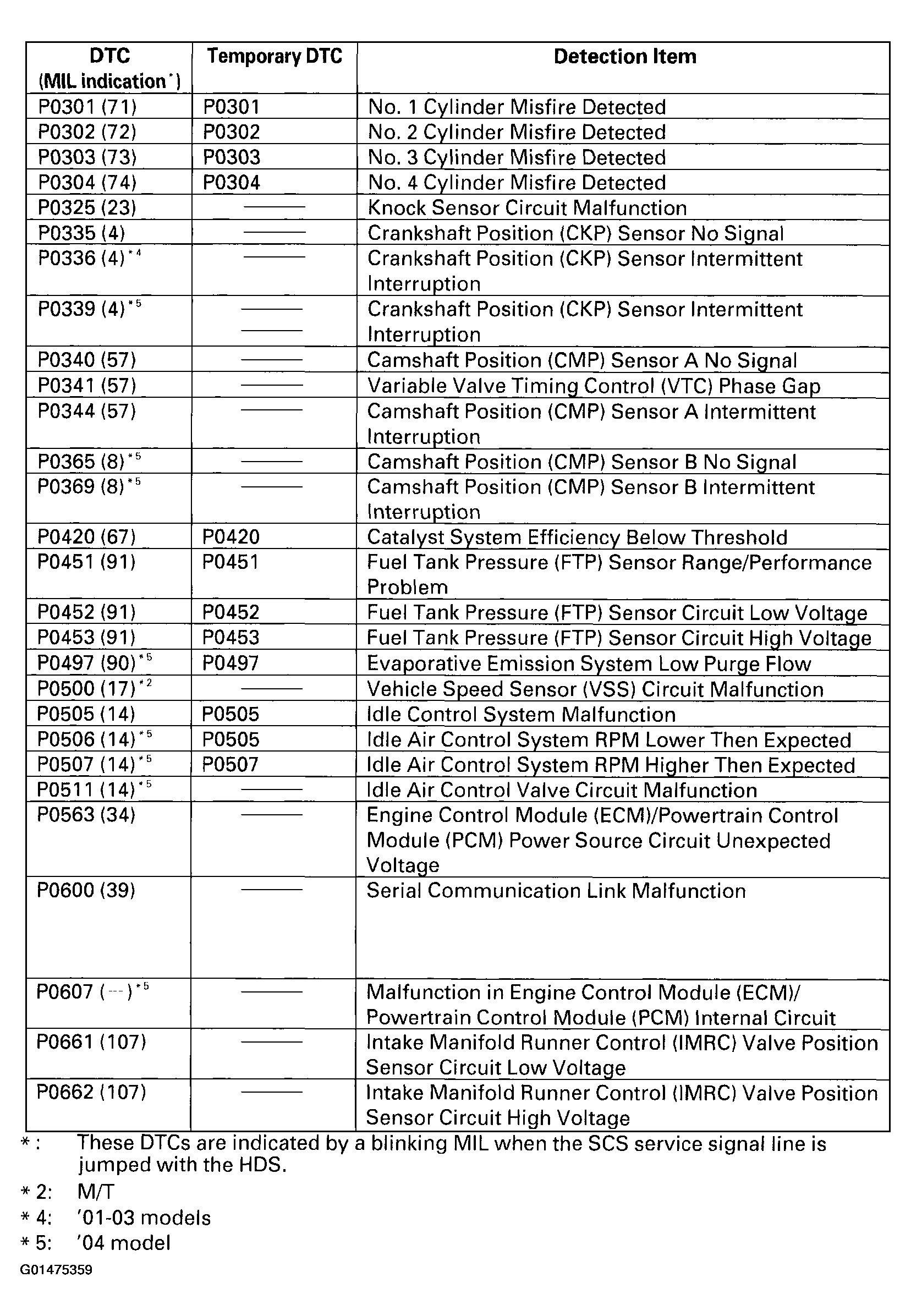

Fig 3: DTC Troubleshooting Chart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

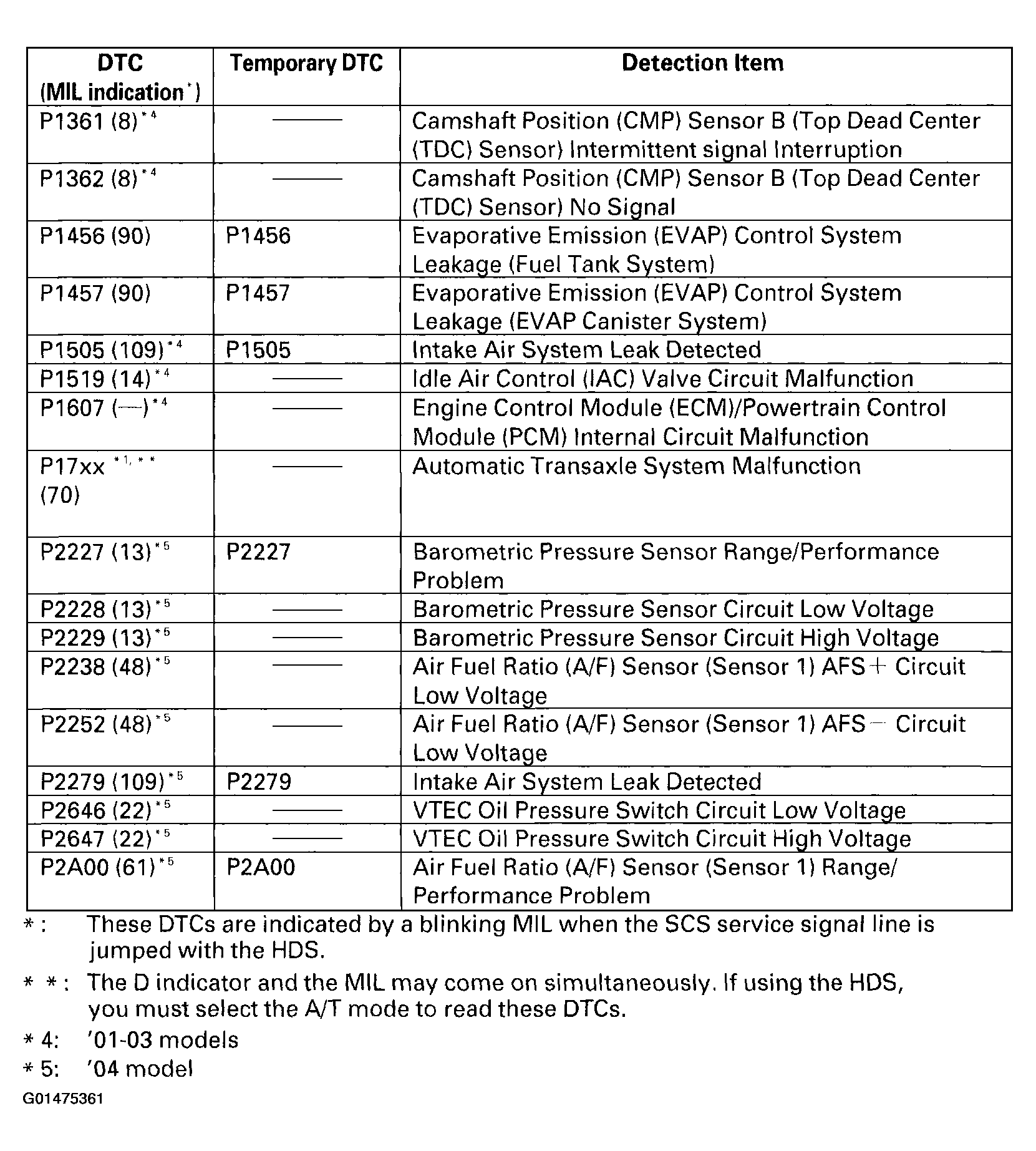

Fig 4: DTC Troubleshooting Chart (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
