Transfer Assembly Installation

NOTE:
  • While installing the transfer assembly on the transmission, do not allow dust or other foreign particles to enter the transmission.
  • Be careful not to damage the clutch housing with the transfer driven gear.
  1. Install a new O-ring (A) on the transfer assembly (B), then install the dowel pin (C) on the transmission.
  2. Apply manual transmission fluid (MTF) to the transfer drive gear and transmission contact area, then install the transfer assembly on the transmission.

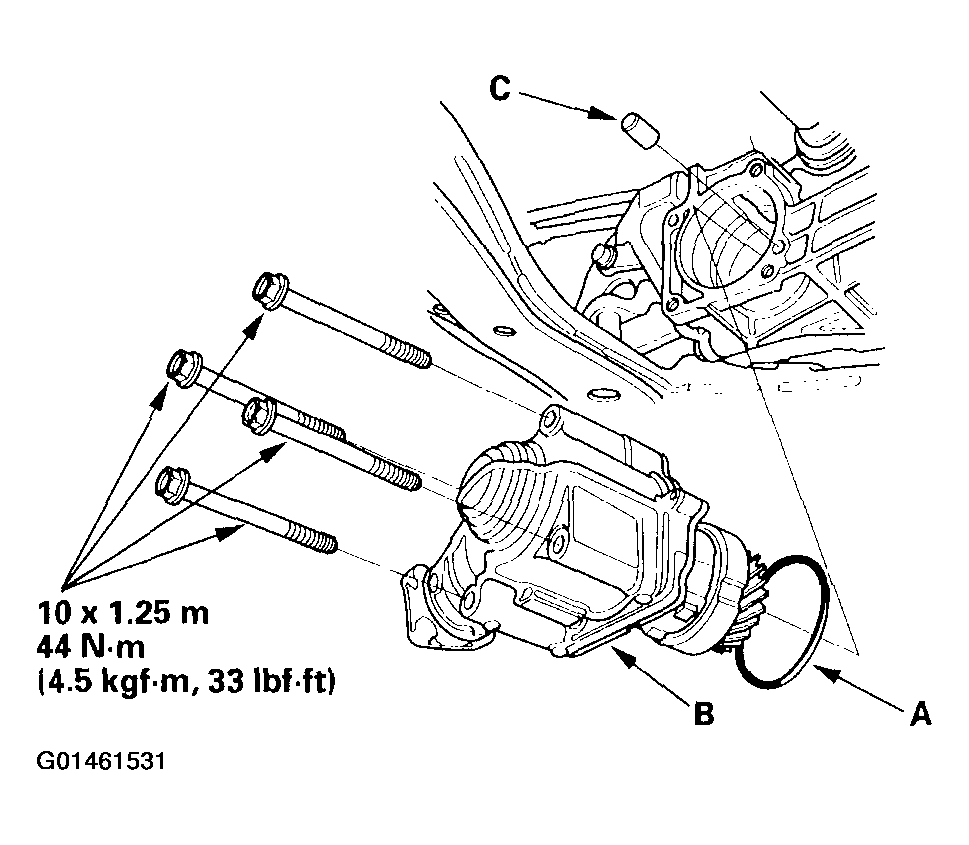

    Fig 1: Installing Transfer Assembly On Transmission
    G01461531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the propeller shaft on the transfer assembly by aligning the reference marks.

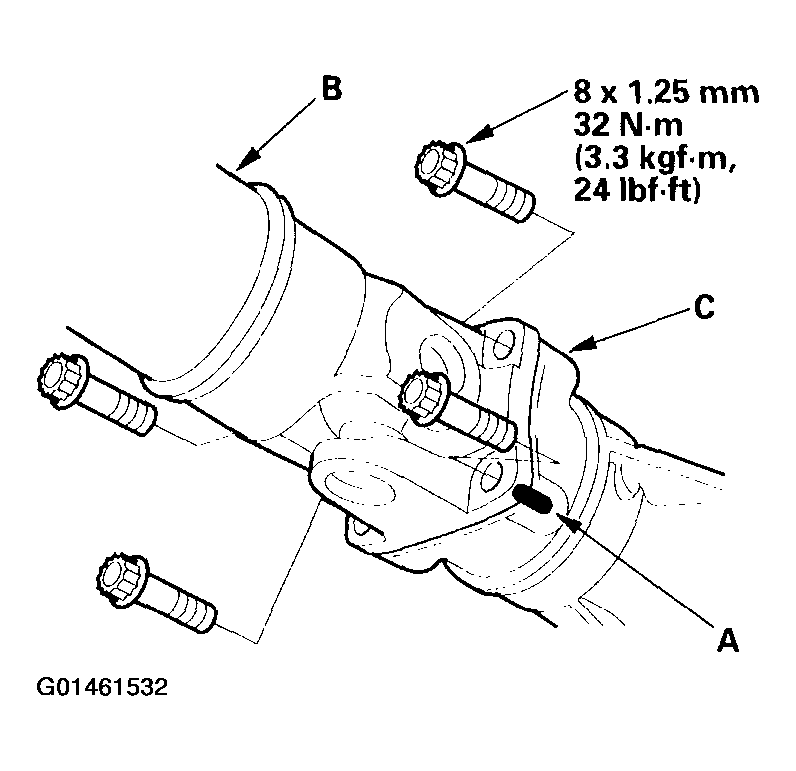

    Fig 2: Installing Propeller Shaft On Transfer Assembly
    G01461532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Refill the transmission with MTF (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT ).
  5. Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level.
