Power Mirror Replacement
- Lower the door glass fully.

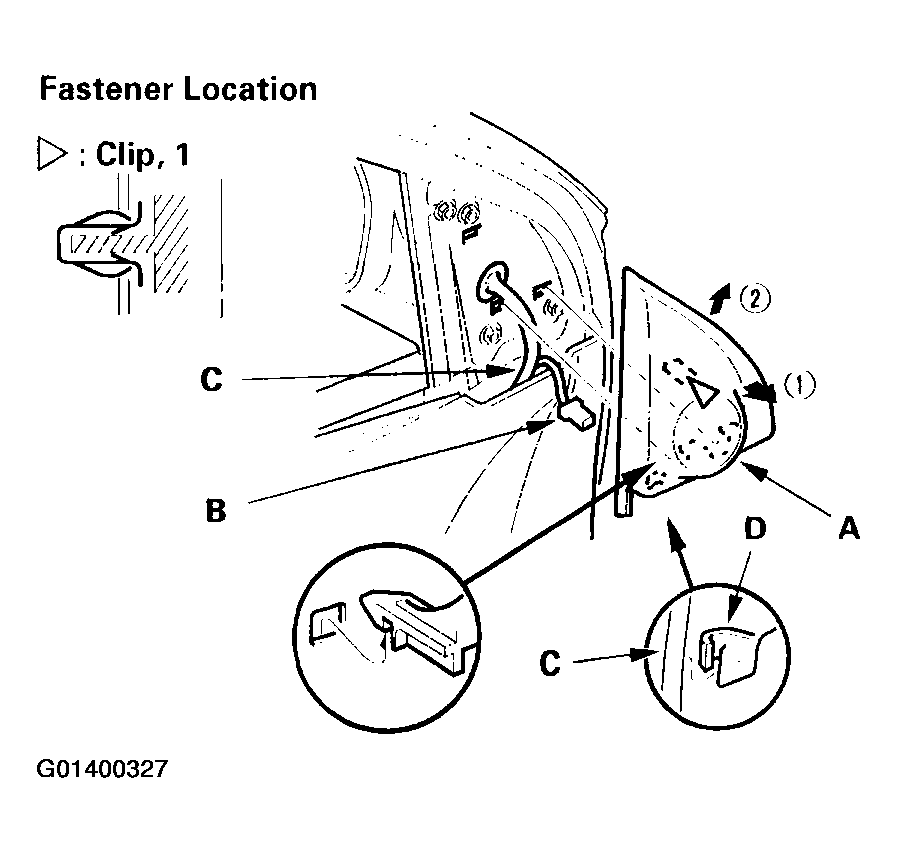

- Carefully pry out the mirror mount cover (A) by hand in the sequence shown. Disconnect the tweeter connector (B), and release the wire harness (C) from the hook (D).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION
).

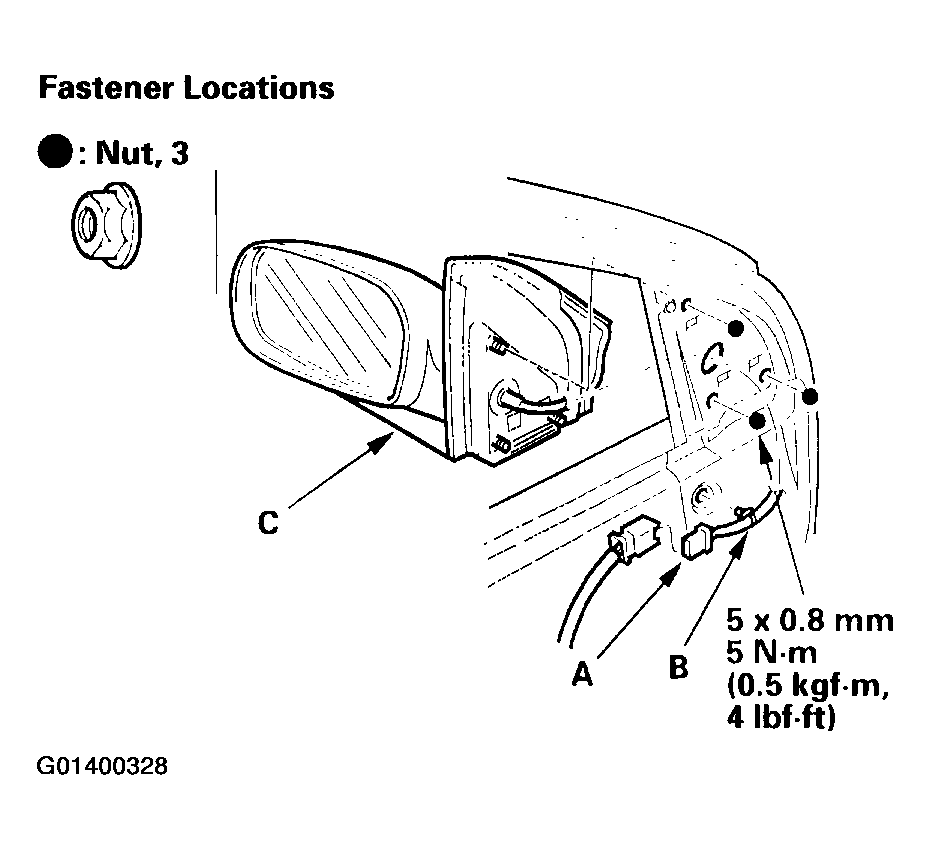

- Disconnect the connector (A), and detach the harness clip (B). While holding the mirror (C), remove the nuts, then remove the mirror. Take care not to scratch the door.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Attach the harness clip.
