EVAP Canister Replacement

  1. Remove the vacuum hoses (A).

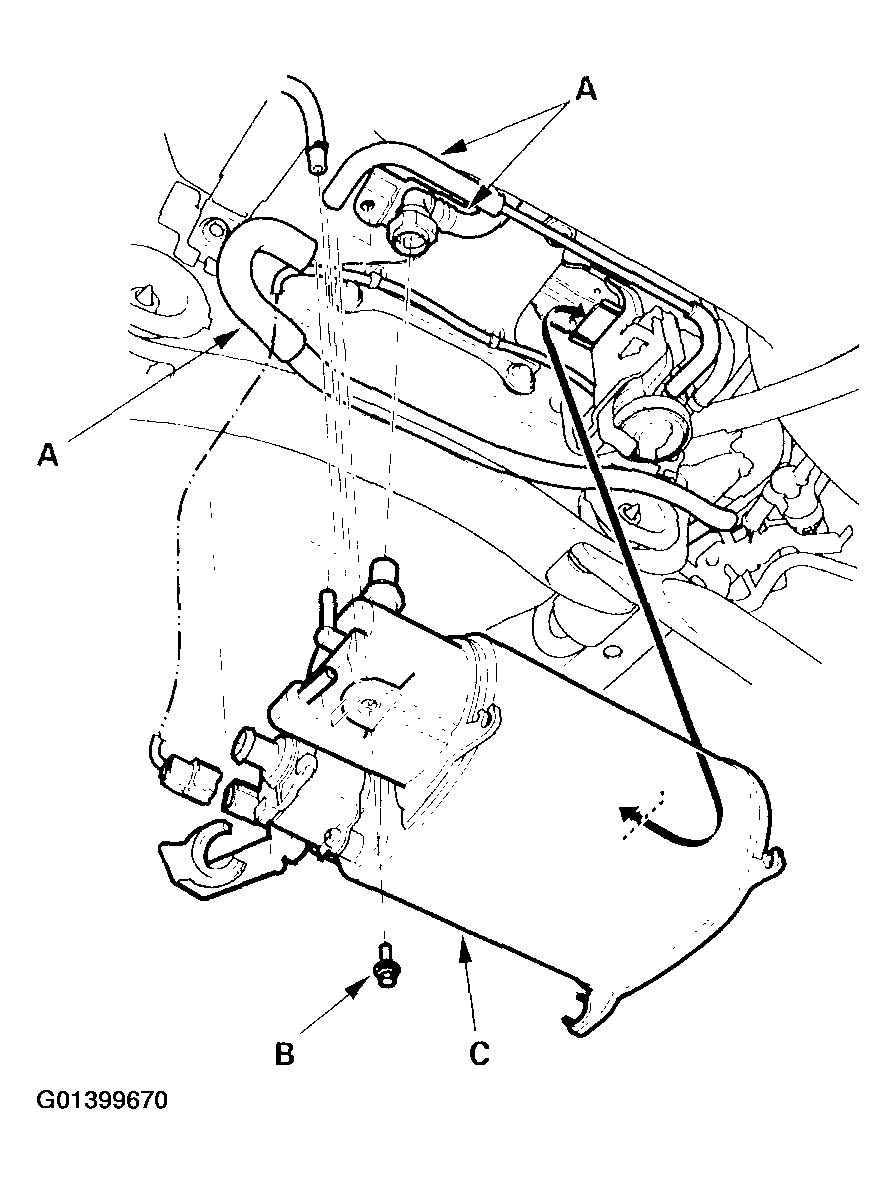

    Fig 1: Removing Vacuum Hoses
    G01399670Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolt (B).
  3. Remove the EVAP canister (C).
  4. Install in the reverse order of removal.
