Air Cleaner Removal/Installation

Remove the nuts (A) and the stud (B).

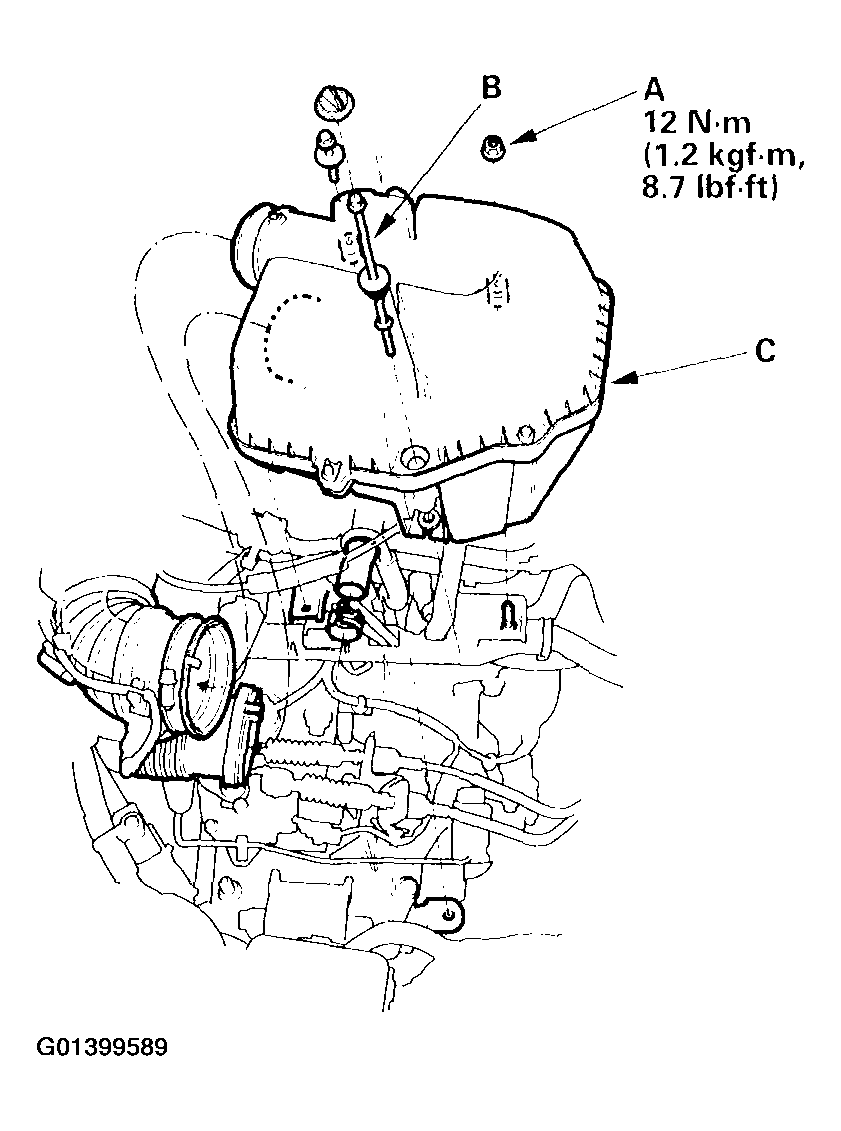

Fig 1: Removing The Air Cleaner
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (C).
Install in the reverse order of removal.
