Variable Valve Timing Electronic Control System (VTEC) And Variable Valve Timing (VTC ) System (Hatchback)
›
Component Location Index
Component Location Index

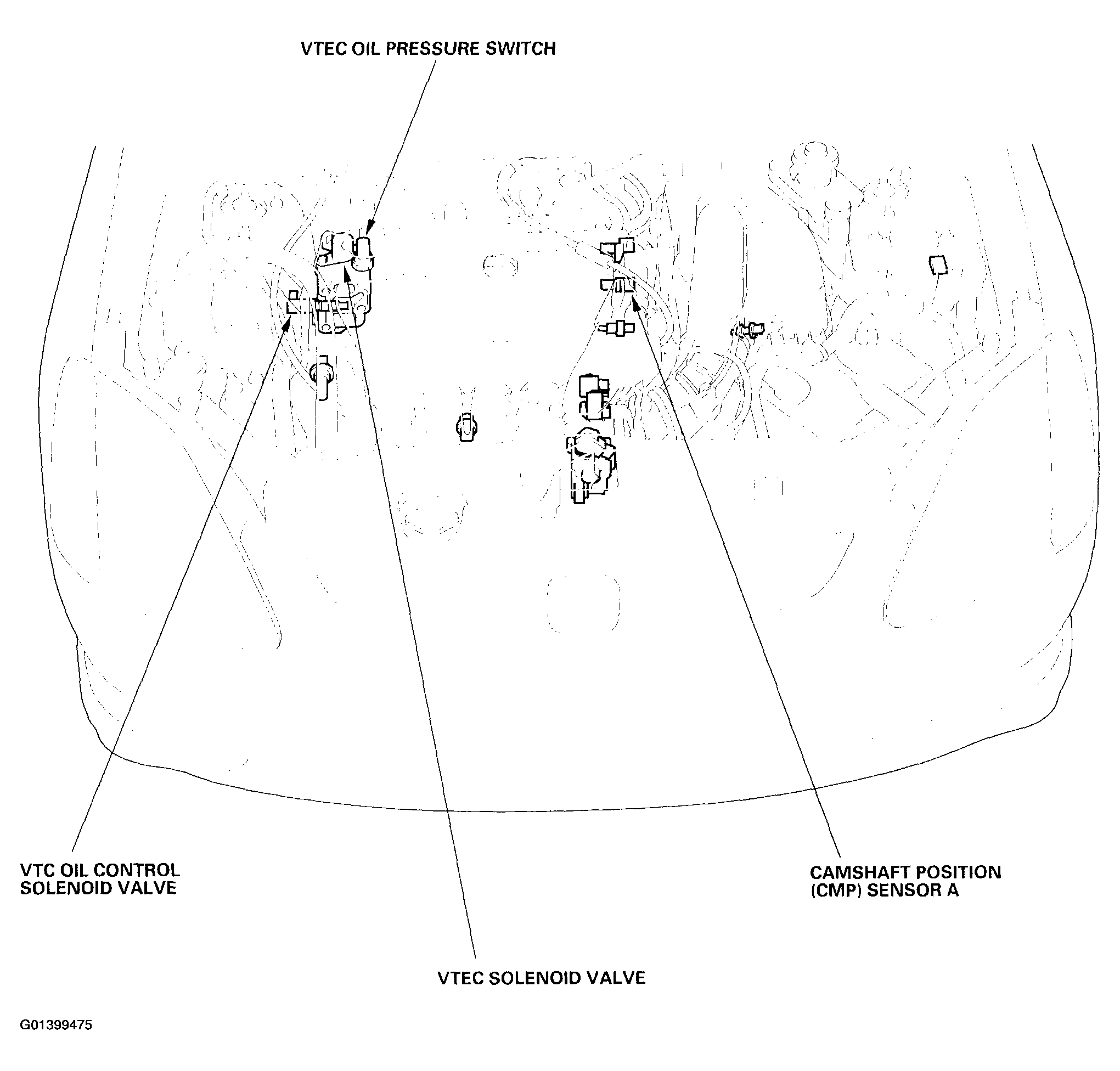

Fig 1: Locating VTEC/VTC Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
