Cruise Control Set/Decel, Resume/Accel, Cancel Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before performing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).

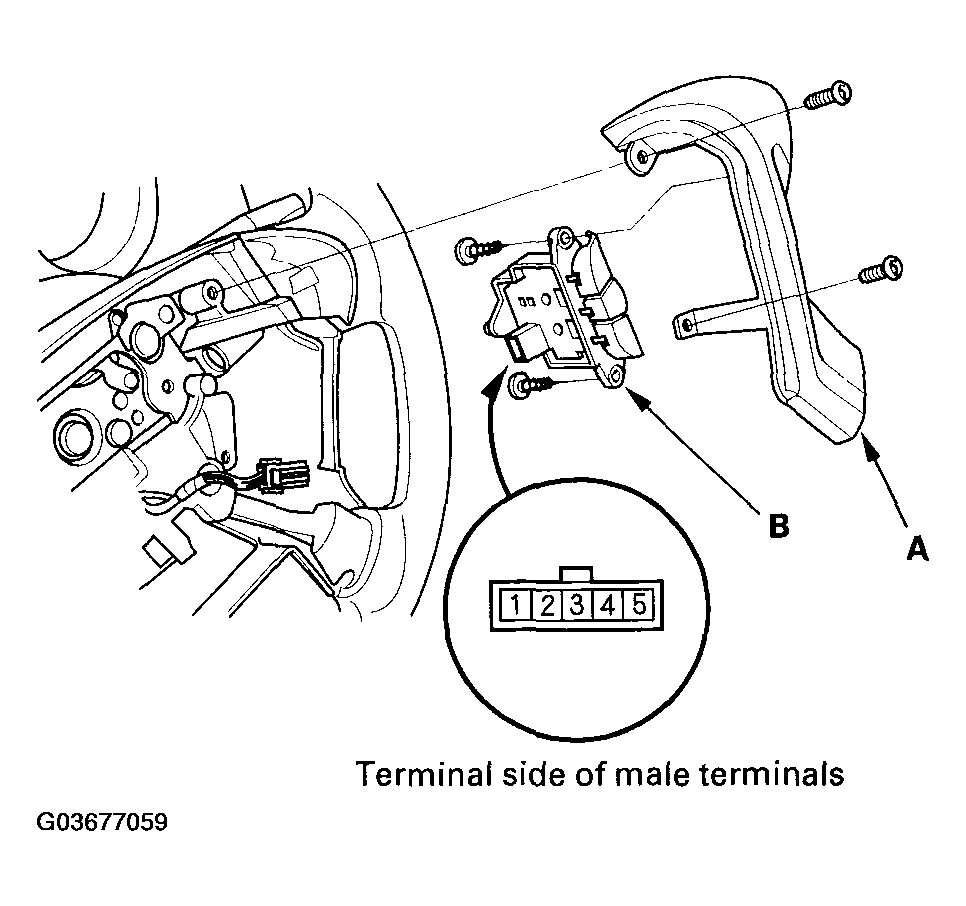

2. Remove the cover (A), then remove the cruise control set/decel, resume/accel, cancel switch (B).
   Fig 1: Removing Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control actuator input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the switch.
   Fig 2: Terminals And Continuity Reference Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
