Oil Pump Overhaul
›
Exploded View
Exploded View

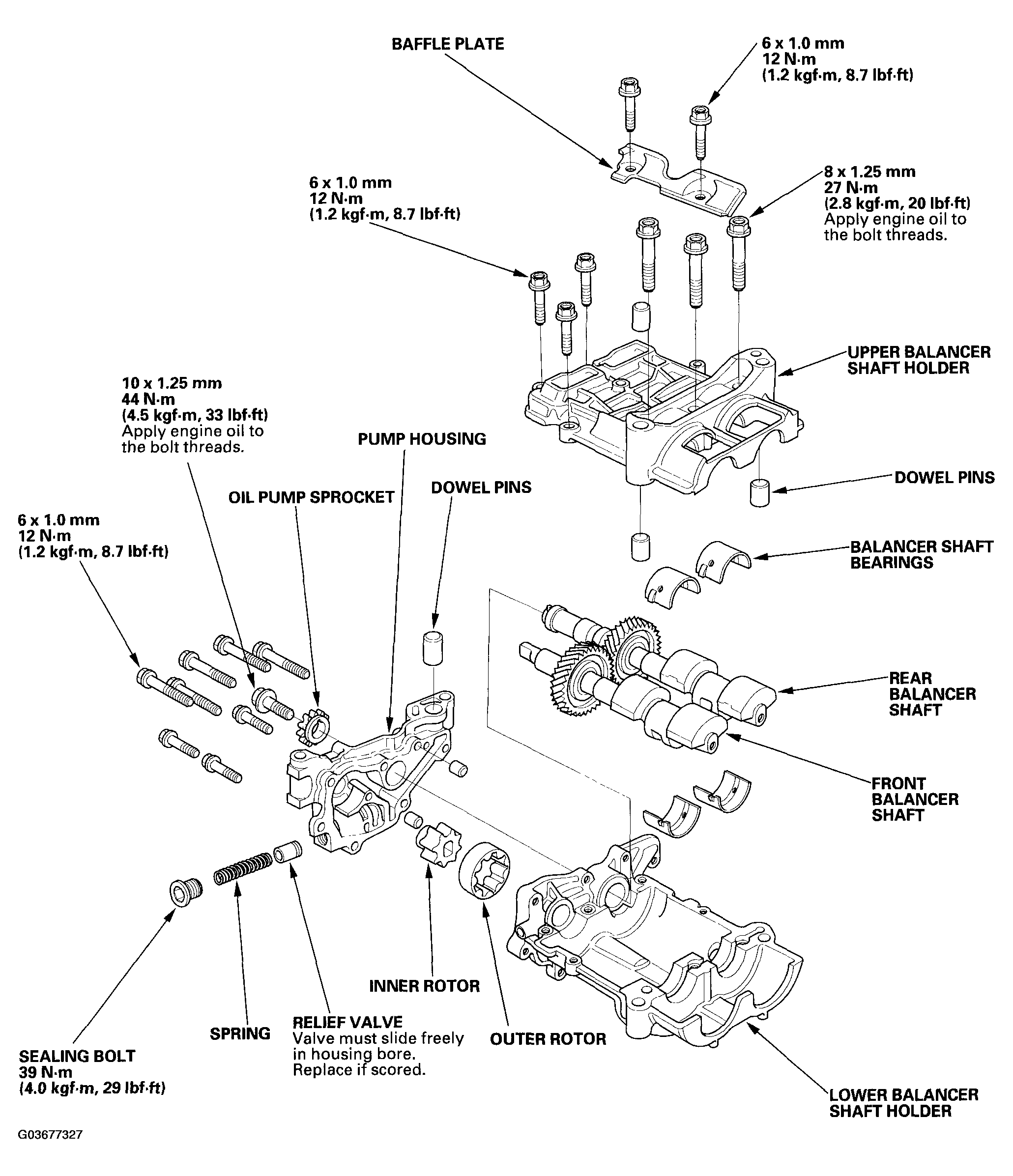

Fig 1: Exploded View Of Oil Pump Related Components And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
